Front Passenger Side Seat Belt Warning Light Does Not Operate
Front Passenger Side Seat Belt Warning Light Does Not Operate
Front Passenger Side Seat Belt Warning Light Does Not Operate

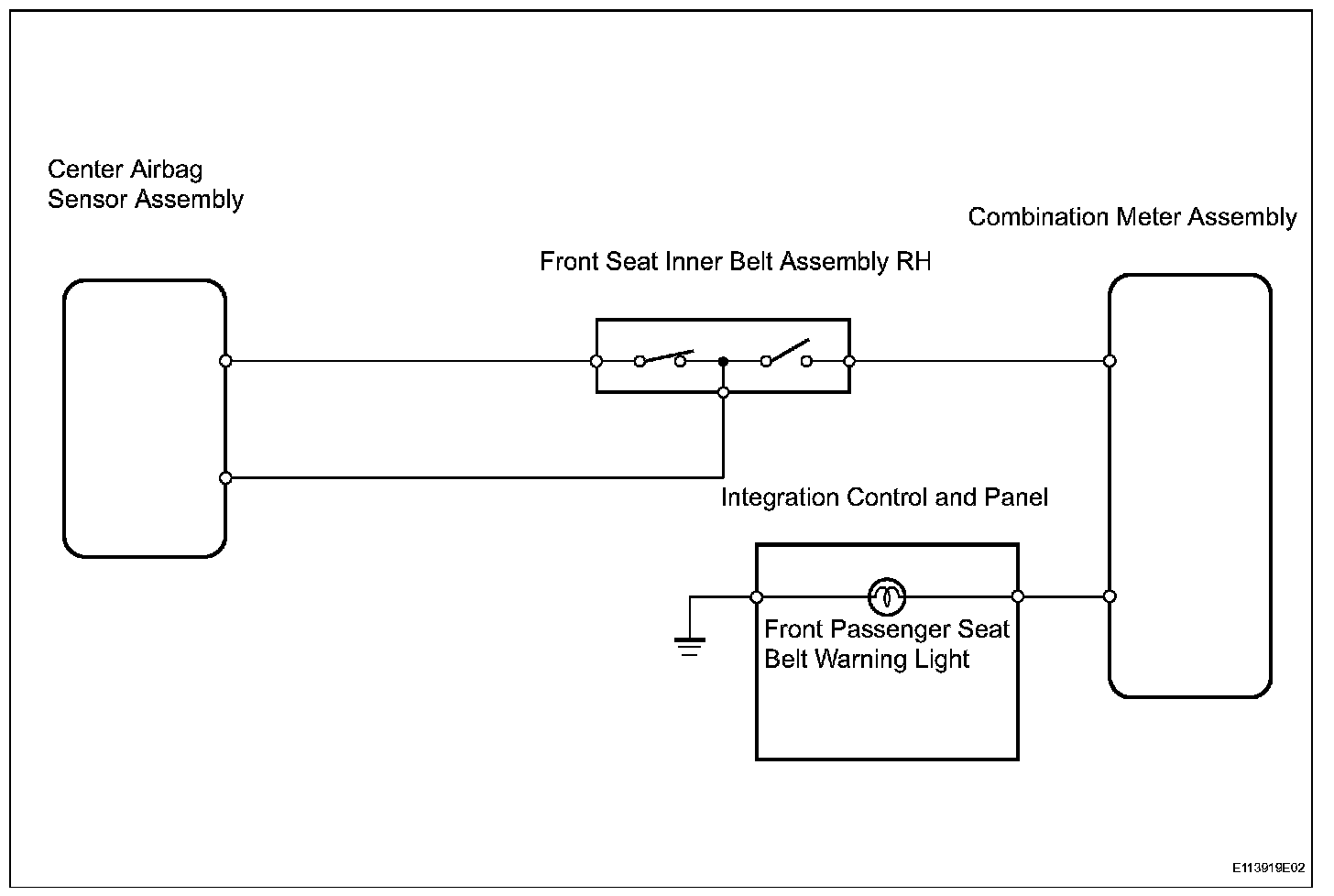

Wiring Diagram:

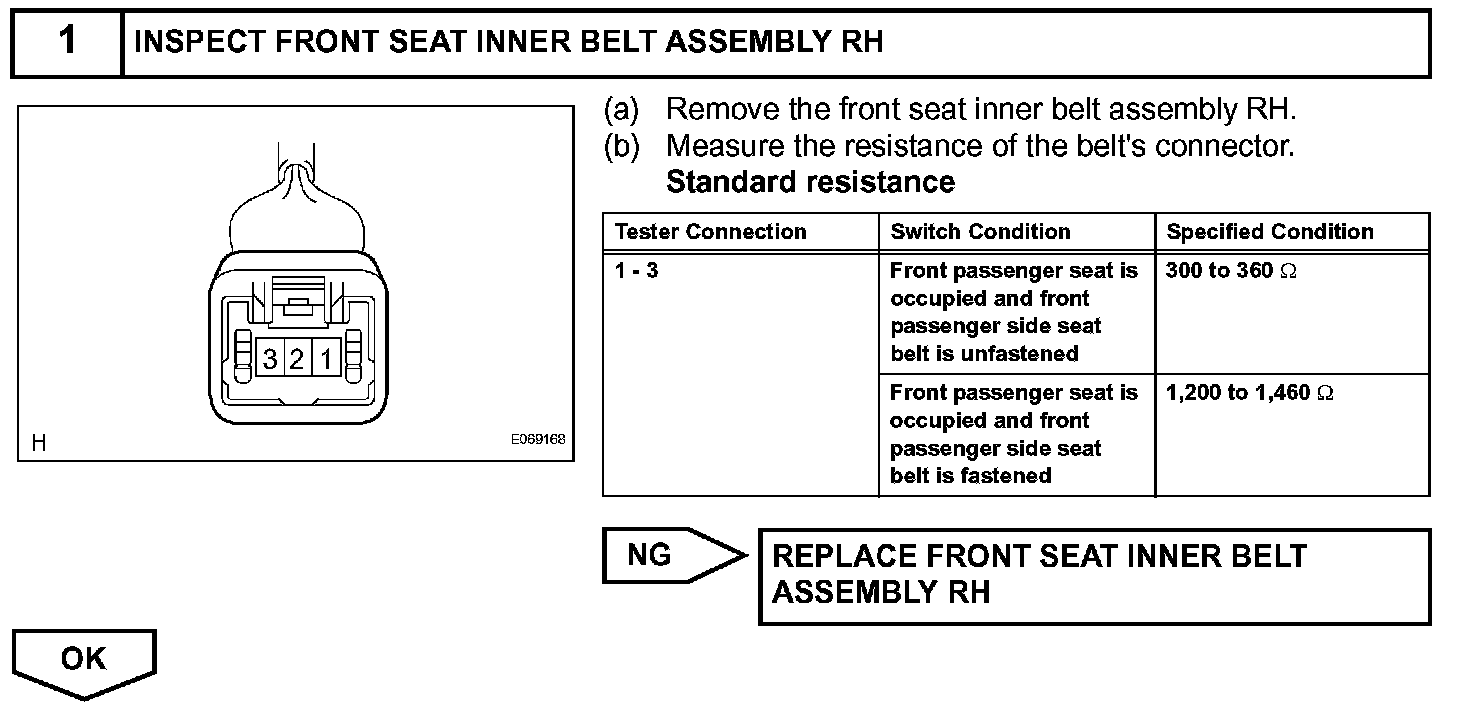

Step 1:

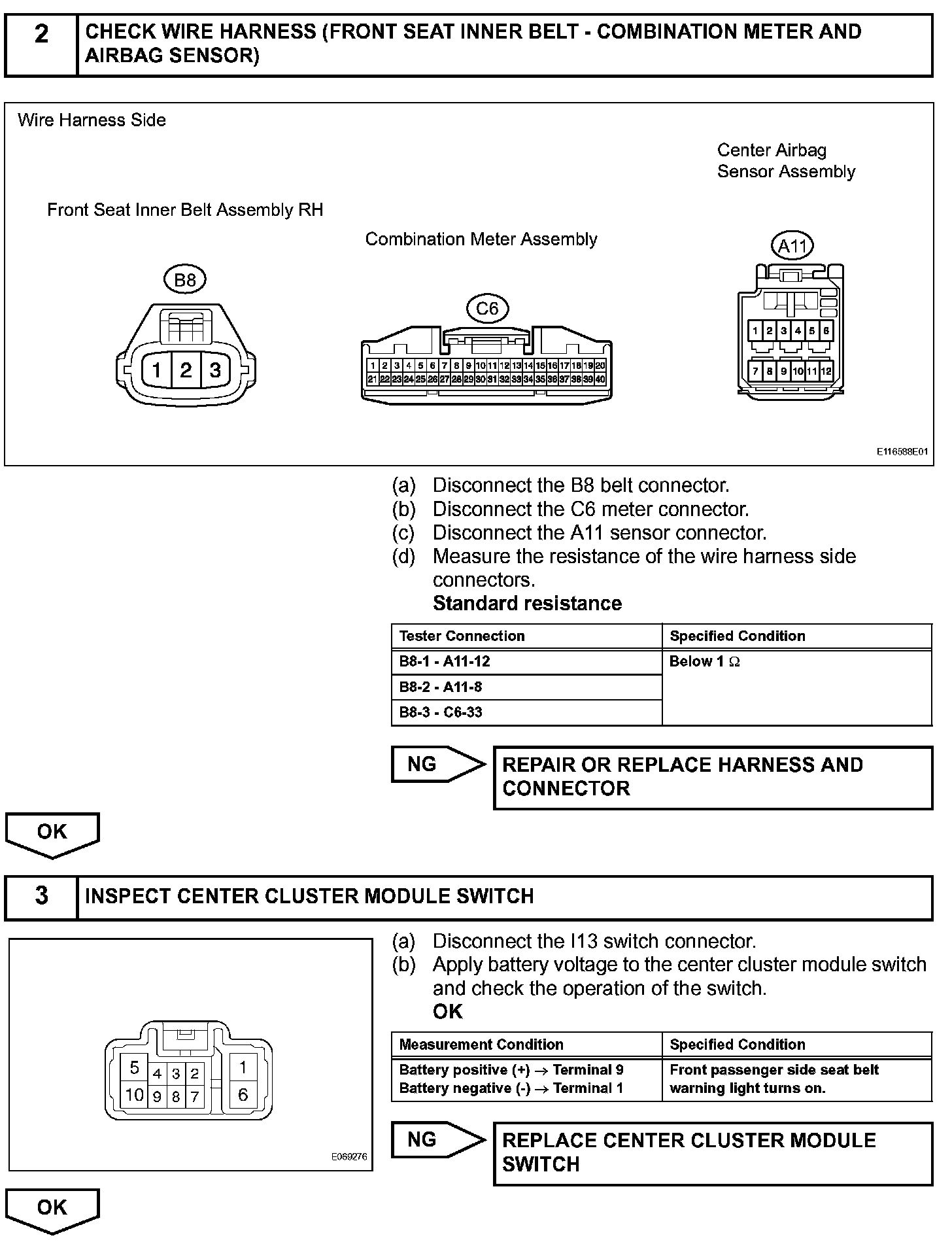

Step 2-3:

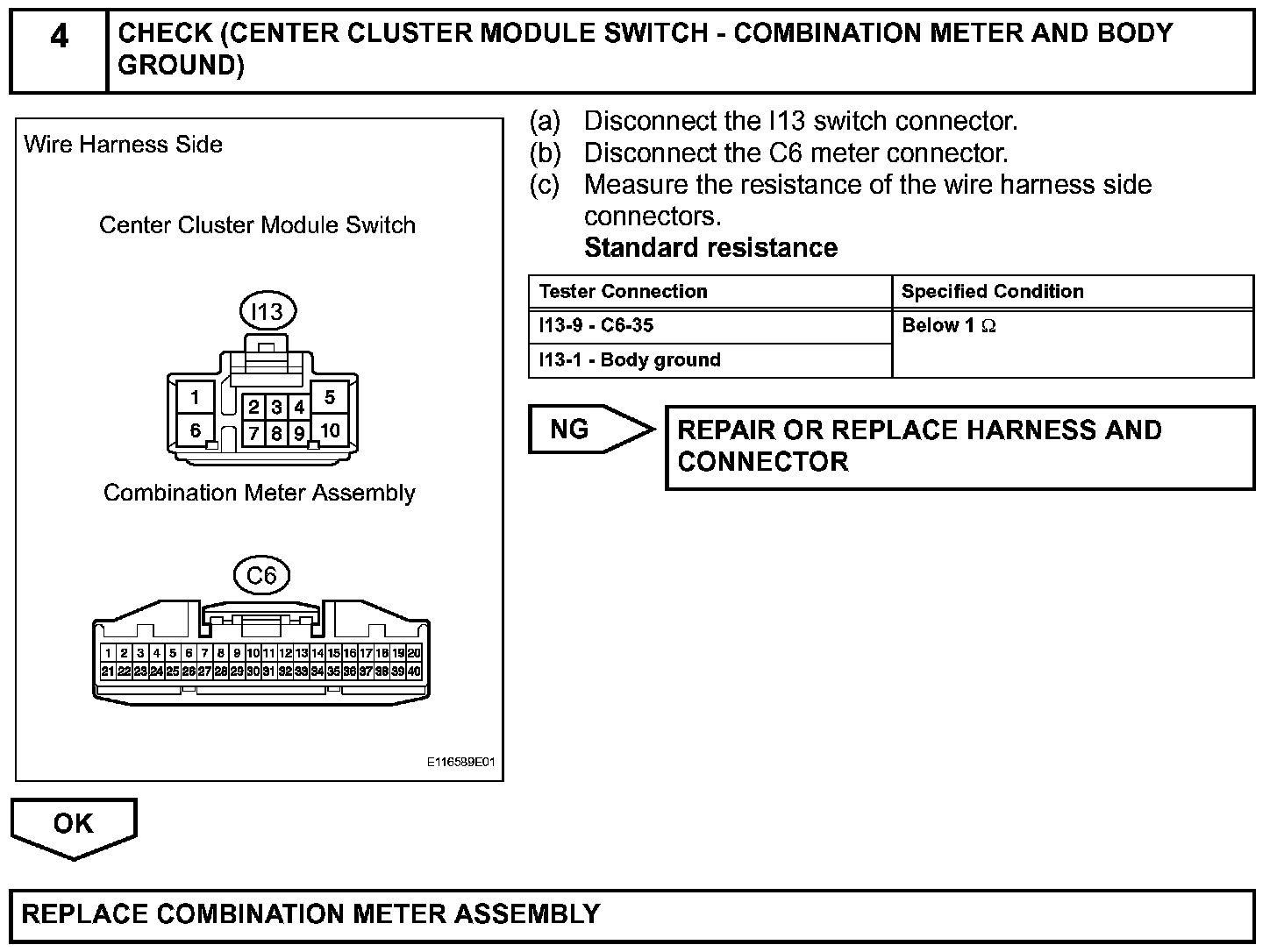

Step 4:
INSPECTION PROCEDURE
