Symptom Index

PROBLEM SYMPTOMS TABLE

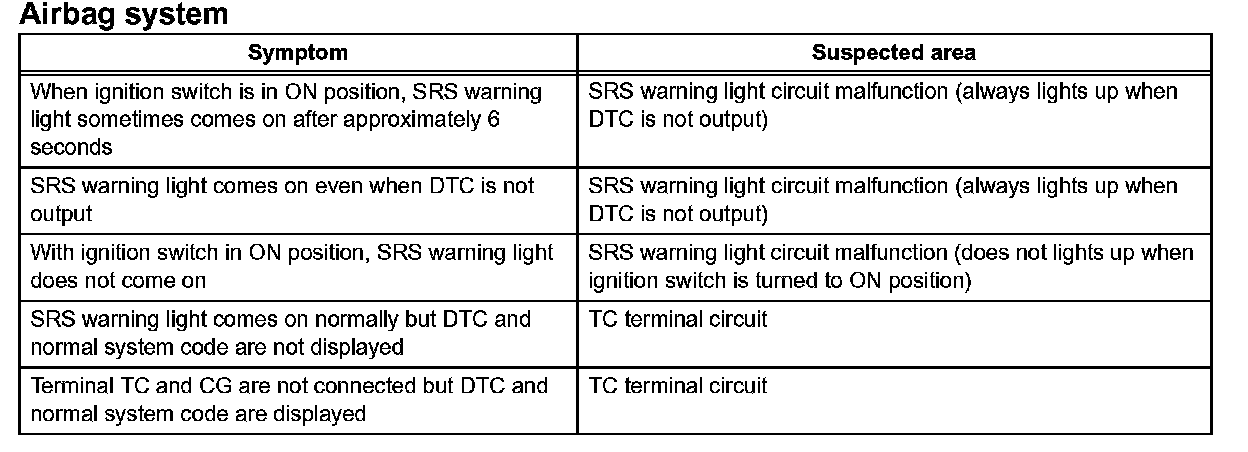

Problem Symptoms Table - Airbag System:

HINT:
- Use the table to help determine the cause of the problem symptom. The potential cases of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
- Proceed to the troubleshooting procedures for each circuit shown in the table.
