Without Scan Tool

CLEAR DTC (USING SST (CHECK WIRE))




a. Clear the DTCs.
1. When the ignition switch is turned OFF, the DTCs are cleared.

HINT: Depending on the DTC, the code may be cleared by turning OFF the ignition switch. In this case, proceed to the next procedure.

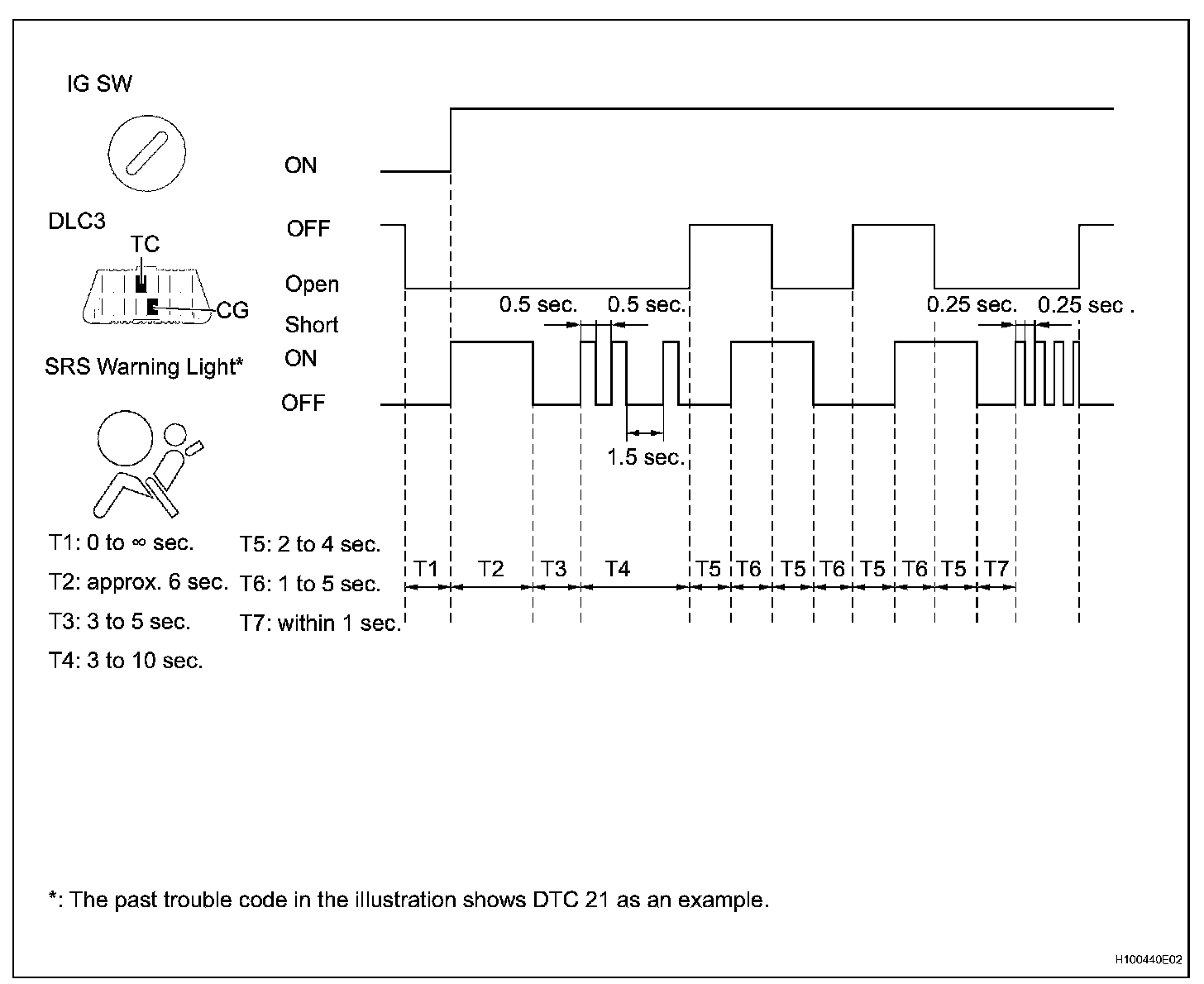

2. Using SST, connect terminals TC and CG of the DLC3, and then turn the ignition switch to the ON position.

SST 09843-18040

3. Disconnect terminal TC of the DLC3 within 3 to 10 seconds after the DTCs are output, and check if the SRS warning light comes on after 3 seconds.
4. Within 2 to 4 seconds after the SRS warning light comes on, connect terminals TC and CG of the DLC3.
5. The SRS warning light should go off within 2 to 4 seconds after connecting terminals TC and CG of the DLC3. Then, disconnect terminal TC within 2 to 4 seconds after the SRS warning light goes off.
6. The SRS warning light comes on again within 2 to 4 seconds after disconnecting terminal TC. Then, reconnect terminals TC and CG within 2 to 4 seconds after the SRS warning light comes on.
7. Check if the SRS warning light goes off 2 to 4 seconds after connecting terminals TC and CG of the DLC3. Also check if the normal system code is output within 1 second after the SRS warning light goes off.
If DTCs are not cleared, repeat this procedure until the codes are cleared.
