Pinout Values and Diagnostic Parameters

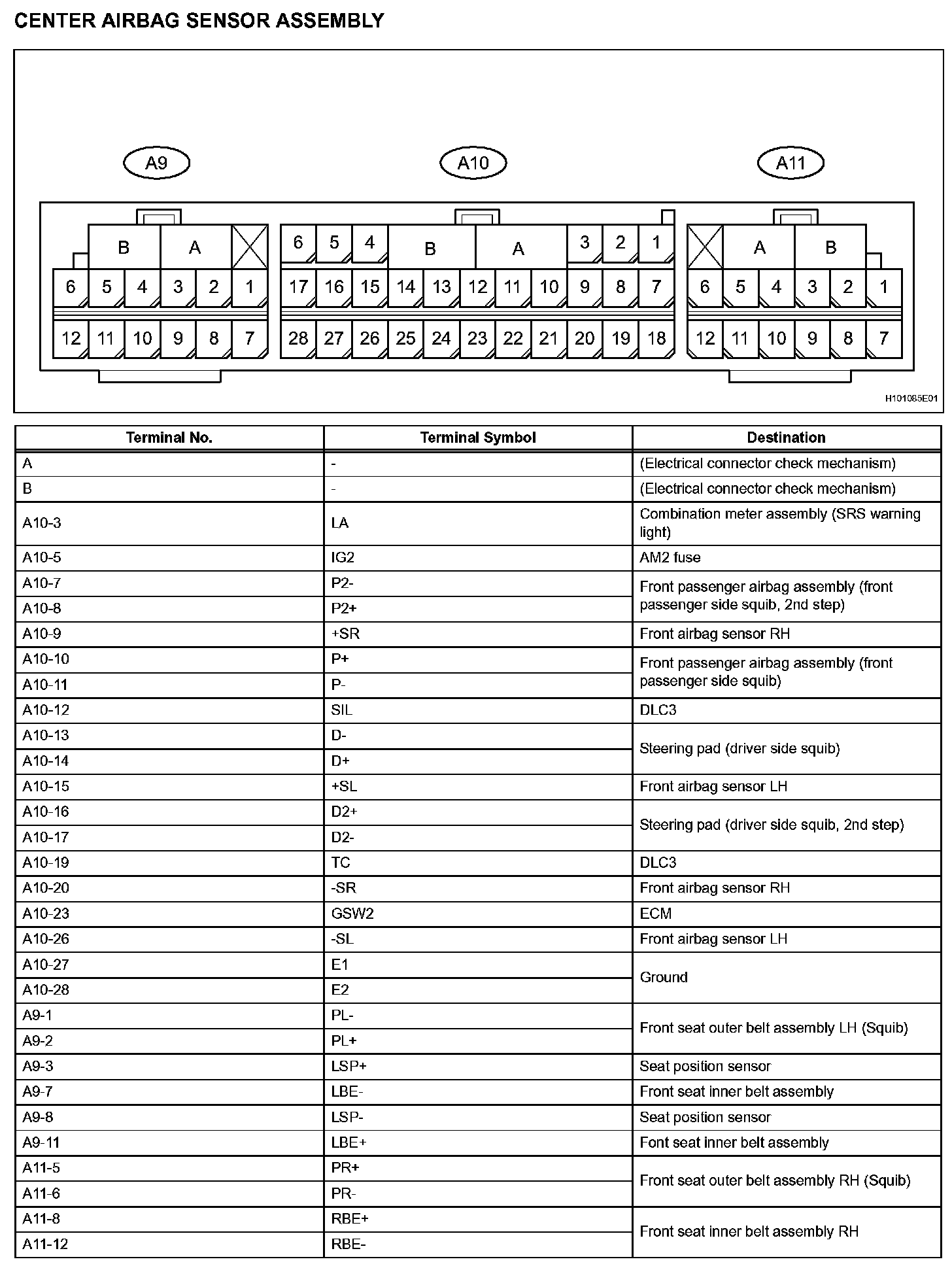

Terminals Of Control Module/Pinouts - Center Airbag Sensor Assembly:
