RELEASE METHOD OF ACTIVATION PREVENTION MECHANISM

System Diagram (Part 1):

System Diagram (Part 2):

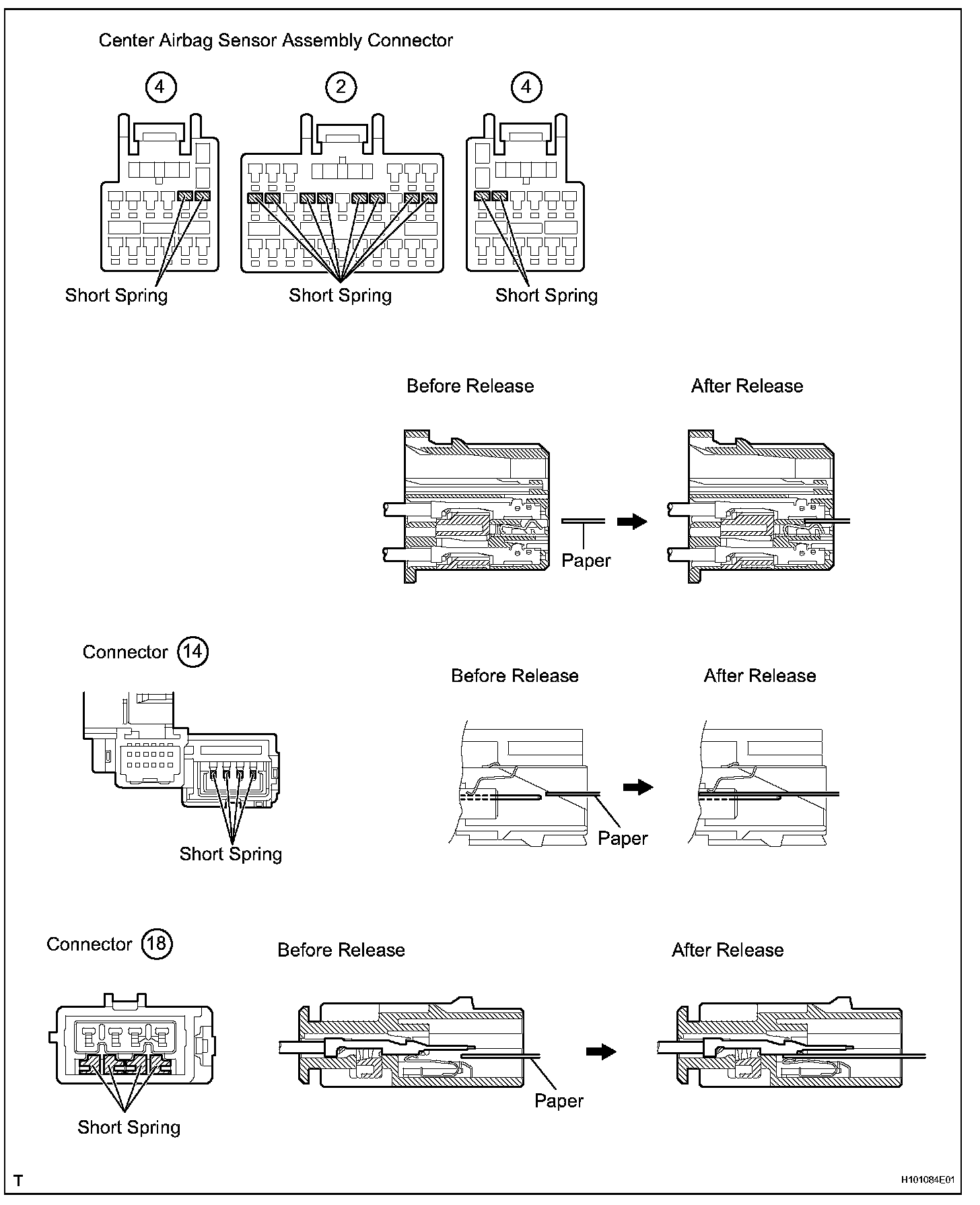

a. The activation prevention mechanism is built into the connector for the squib circuit of the SRS. As explained in the troubleshooting section, insert a piece of paper that is the same thickness as the male terminal between the terminal and the short spring to release it (refer to illustration).

CAUTION: Never release the activation prevention mechanism on the squib connector.

NOTE:
- Do not release the activation prevention mechanism unless specially directed by the troubleshooting procedure.
- To prevent the terminal and short spring from becoming damaged, always use a piece of paper that is the same thickness as the male terminals.
