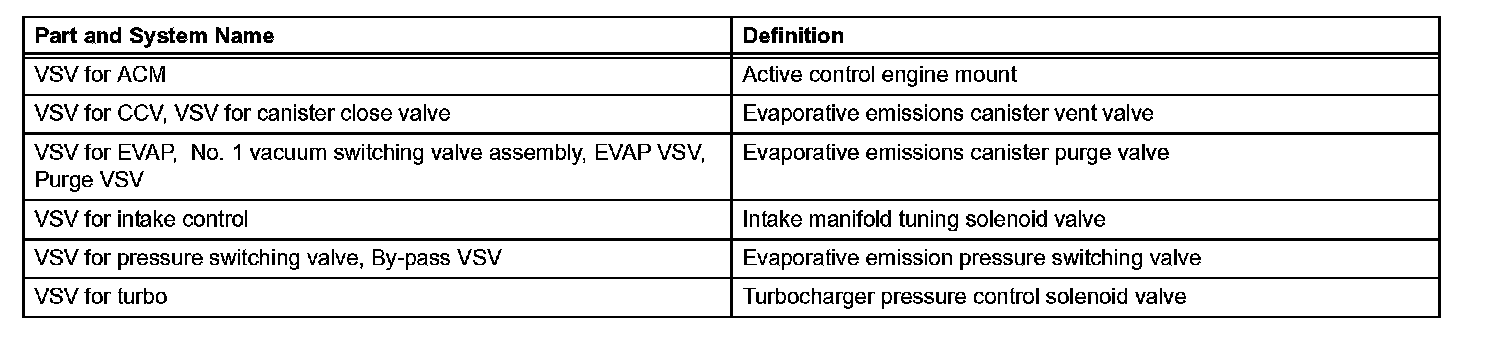

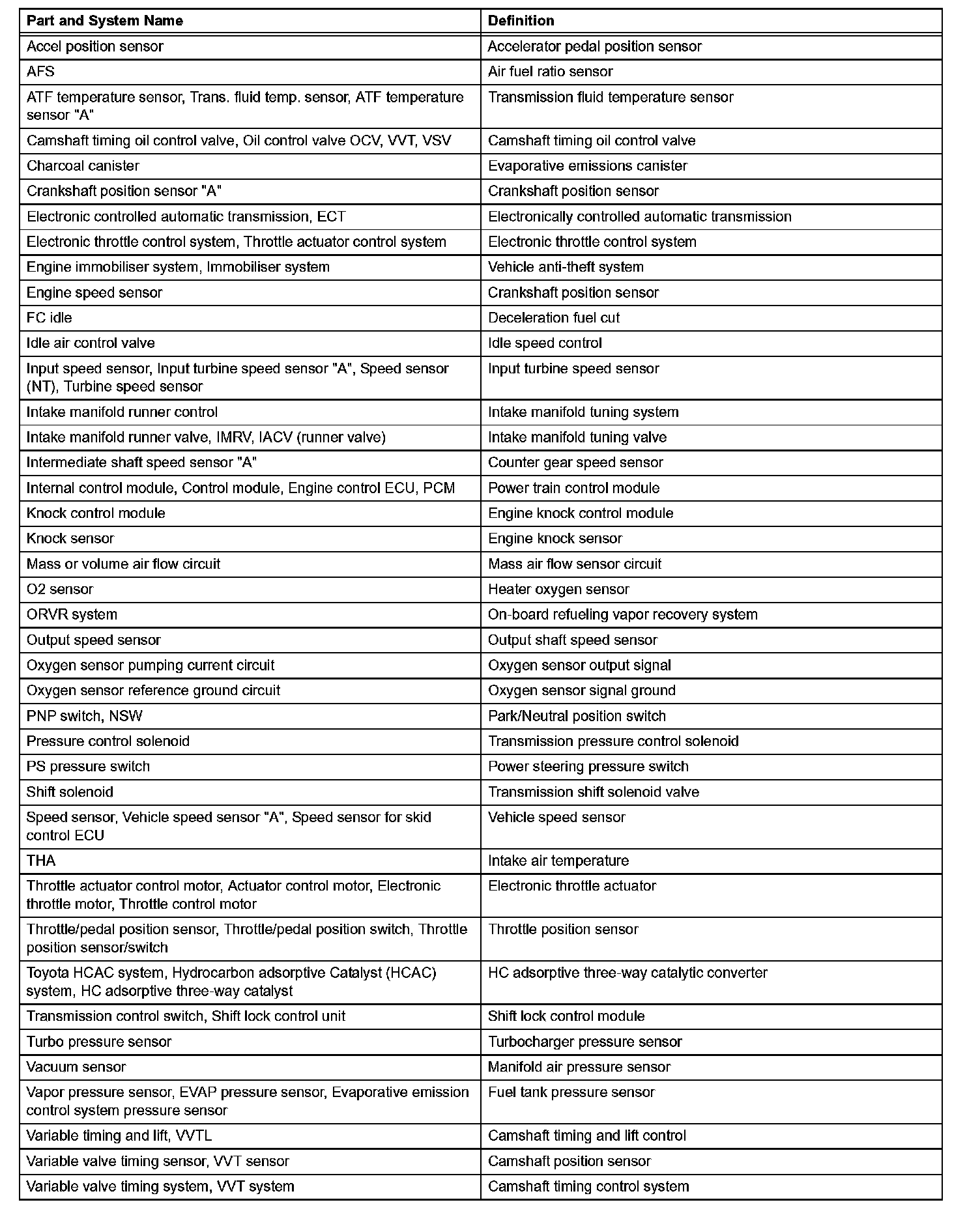

PART AND SYSTEM NAME LIST
This reference list indicates the part and system names along with their definitions.
