Transmission Wire

TRANSMISSION WIRE

INSPECTION





1. INSPECT TRANSMISSION WIRE (ATF TEMPERATURE SENSOR)

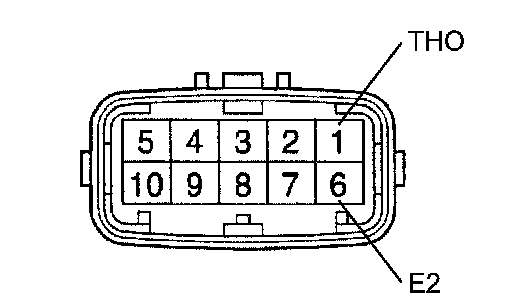

a) Disconnect the E1 wire connector.
b) Measure the resistance of the transmission wire.

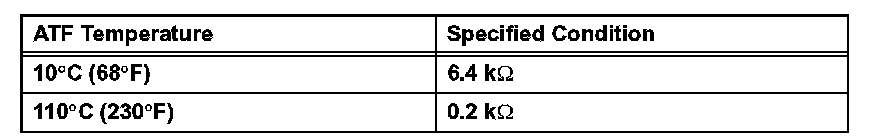

Standard resistance

Standard resistance:





HINT: If the resistance is not as specified for either of the ATF temperatures shown in the table, the driveability of the vehicle may decrease.

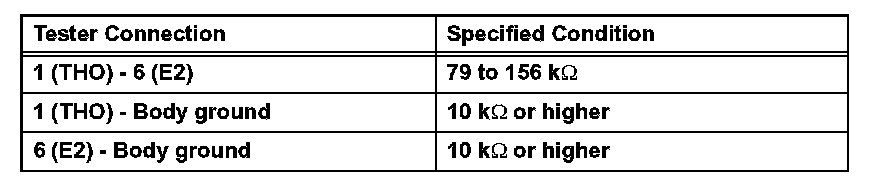

Standard resistance

Standard resistance:
