Transmission Revolution Sensor

TRANSMISSION REVOLUTION SENSOR

INSPECTION





1. INSPECT TRANSMISSION REVOLUTION SENSOR

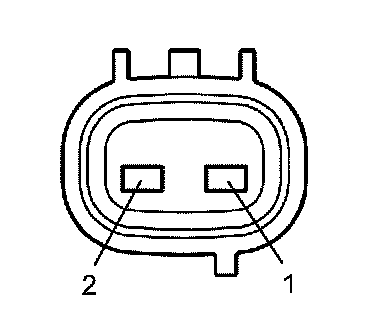

a) Measure the resistance of the sensor.

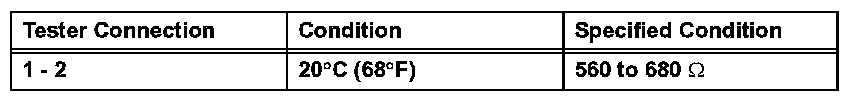

Standard resistance

Standard resistance:





If the result is not as specified, replace the sensor.
