Powertrain Management: Locations

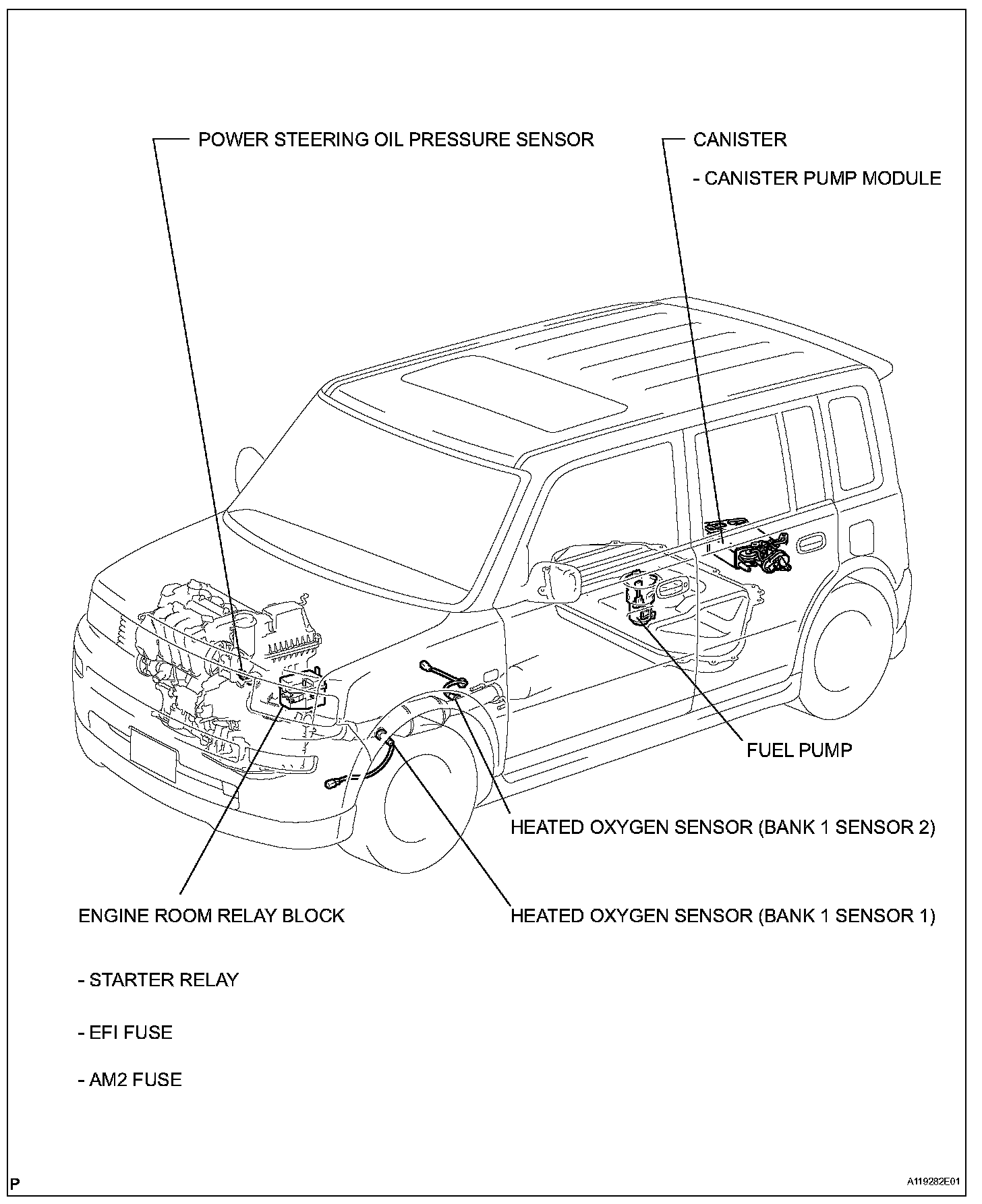

SFI System:

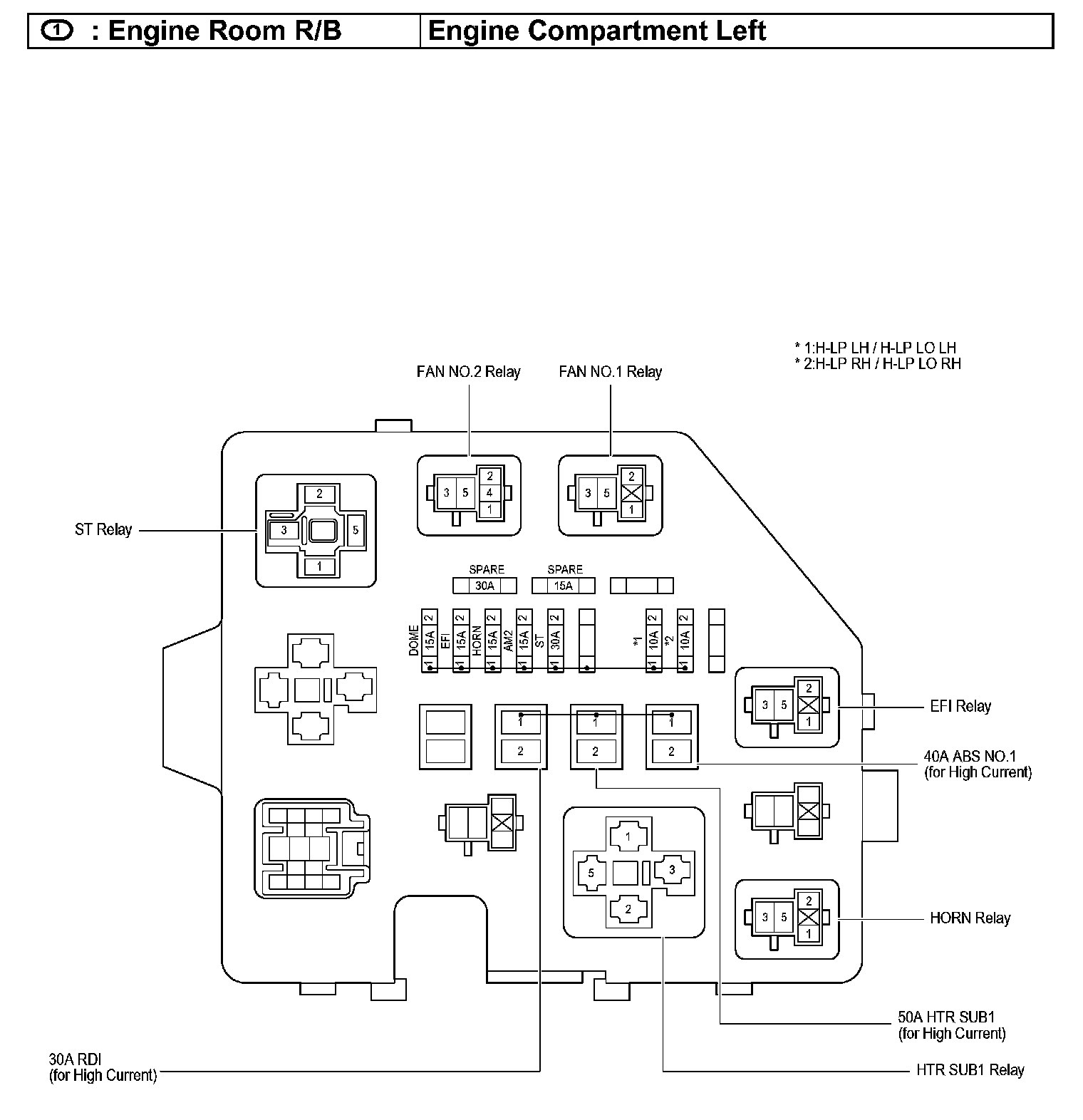

Engine Room R/B - Engine Compartment Left:



Starting System:
