Idle Speed/Throttle Actuator - Electronic: Service and Repair
REMOVAL1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE THROTTLE BODY ASSEMBLY
a. Remove the throttle body.
3. REMOVE IDLE AIR CONTROL VALVE ASSEMBLY

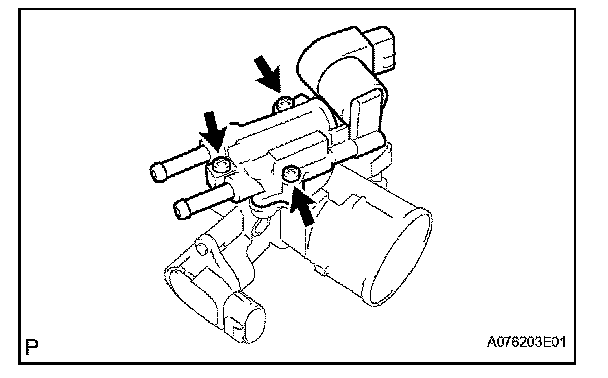

a. Remove the 3 screws, valve and gasket.
INSTALLATION
1. INSTALL IDLE AIR CONTROL VALVE ASSEMBLY
a. Install a new gasket and the valve with the 3 screws.
Torque: 3.4 N.m (35 kgf.cm, 30 in.lbf)
2. INSTALL THROTTLE BODY ASSEMBLY
a. Install the throttle body.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
