Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

1. REMOVE NO. 2 CYLINDER HEAD COVER

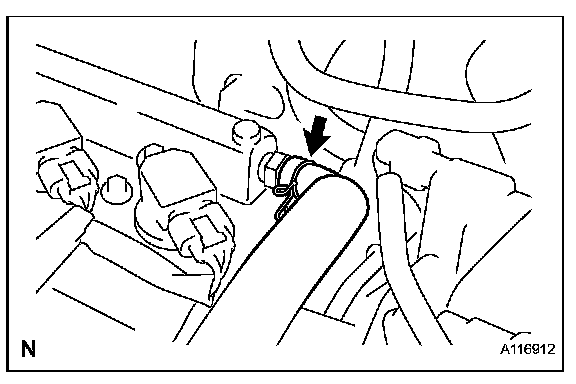

2. DISCONNECT VENTILATION HOSE




a. Disconnect the ventilation hose from the ventilation valve.

3. REMOVE VENTILATION VALVE
a. Remove the ventilation valve

INSTALLATION

1. INSTALL VENTILATION VALVE

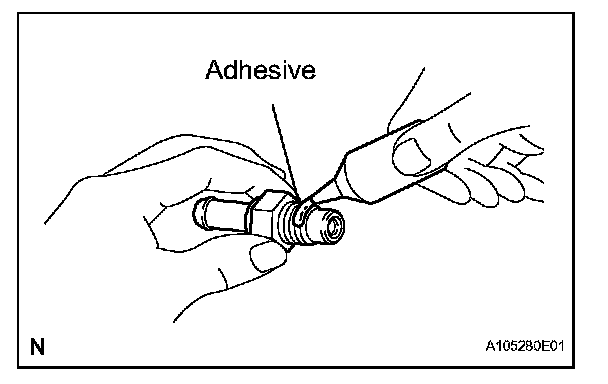

a. Apply adhesive to 2 or 3 threads of the valve.

Adhesive: Part No. 08833-00070, THREE BOND 1324 or equivalent.

b. Install the ventilation valve.

Torque: 27 N.m (275 kgf.cm, 20 ft..lbf)

2. CONNECT VENTILATION HOSE




a. Connect the ventilation hose to the ventilation valve.

3. INSTALL NO. 2 CYLINDER HEAD COVER
