Part and System Name List

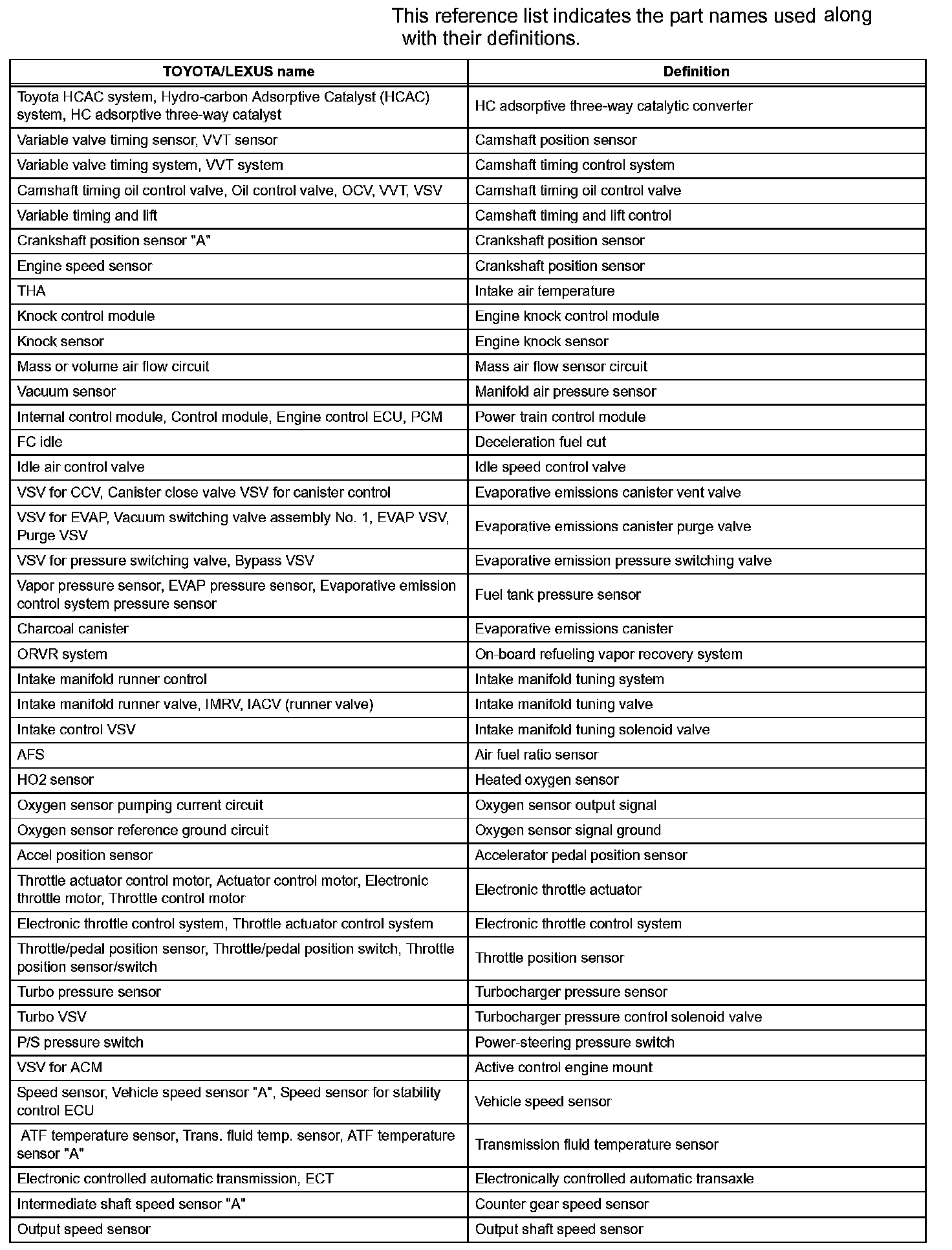

Scion Part And System Name List (Part 1):

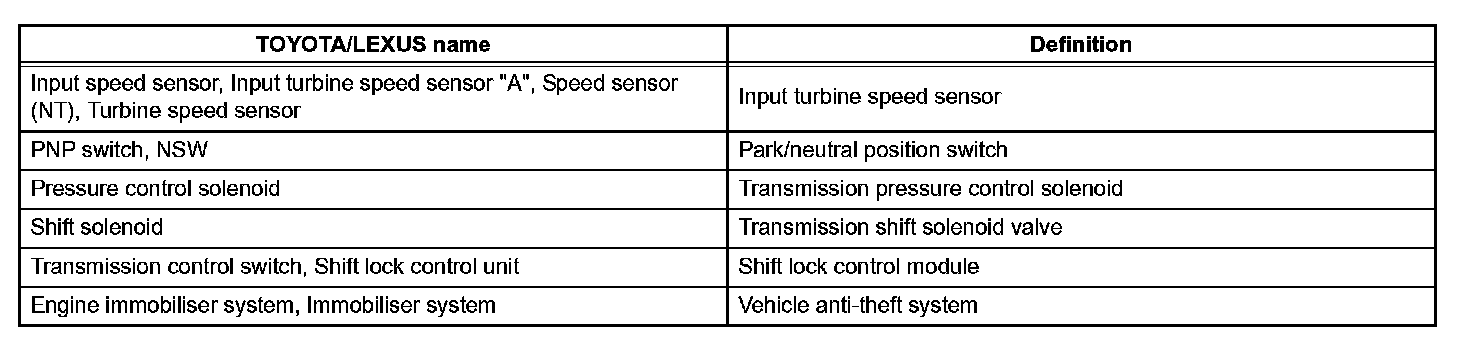

Scion Part And System Name List (Part 2):
