Fail-Safe Chart

FAIL-SAFE CHART




1. FAIL-SAFE FUNCTION
a. When communication fails in any of the CAN bus lines (communication lines) due to a short circuit or for another reason, the fail-safe function, which is specified for each system, operates to prevent the system from malfunctioning.
b. The fail-safe function activates on each system when communication is impossible. (For further details, refer to the relevant systems of each part.)

HINT:

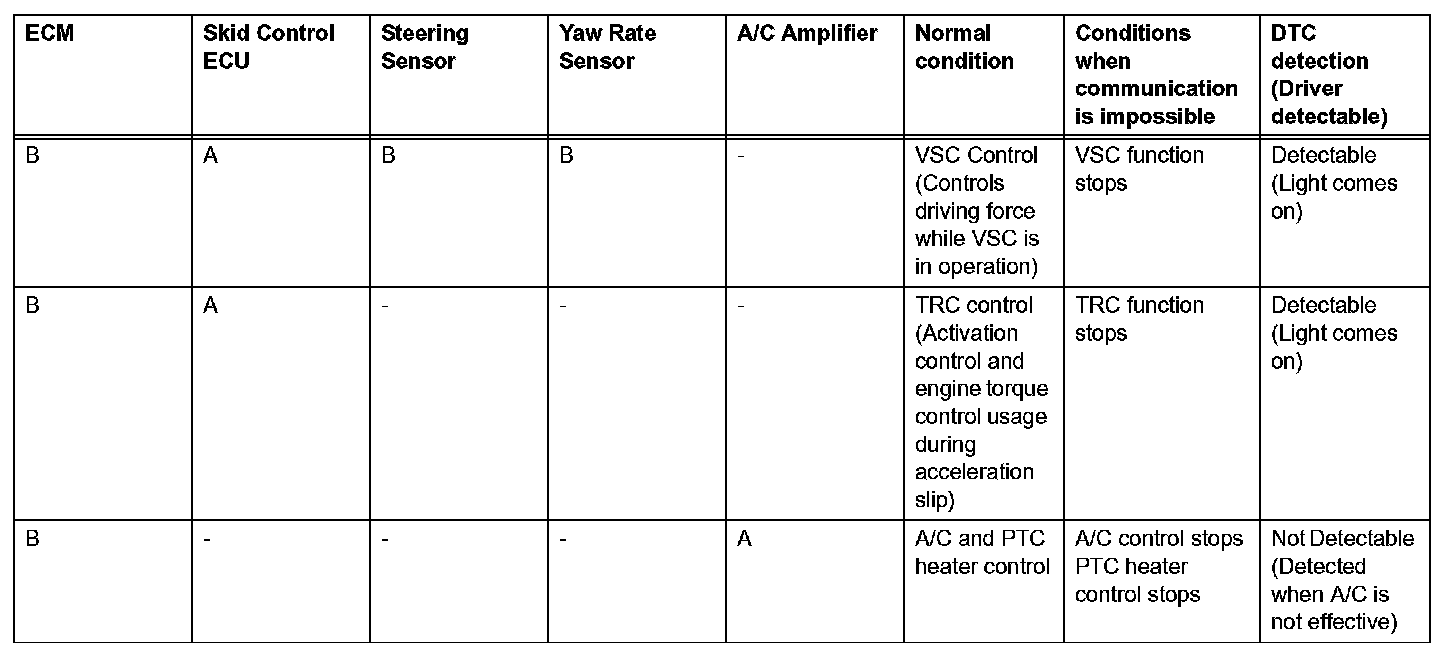

- Fail-safe function operation during an A-B communication error is shown in the above chart.
- A: Main control system B: Related system
