Short to GND In CAN Bus Line

Short to GND in CAN Bus Line

DESCRIPTION

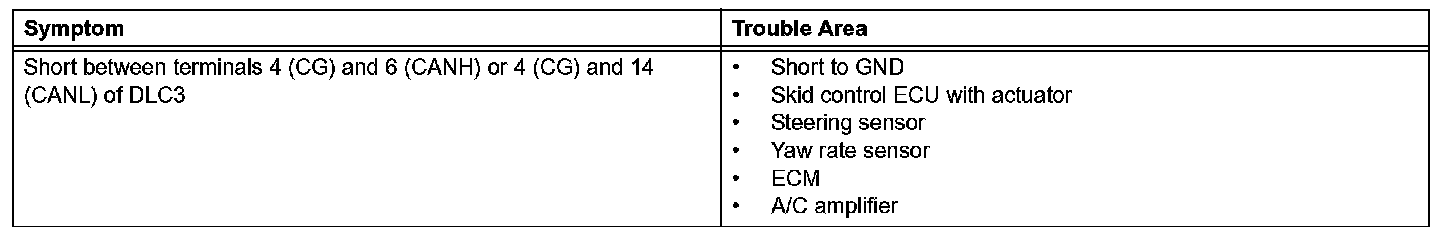

A short to GND may be occurring in the CAN bus line when there is a short between terminals 4 (CG) and 6 (CANH) or terminals 4 (CG) and 14 (CANL) of the DLC3.

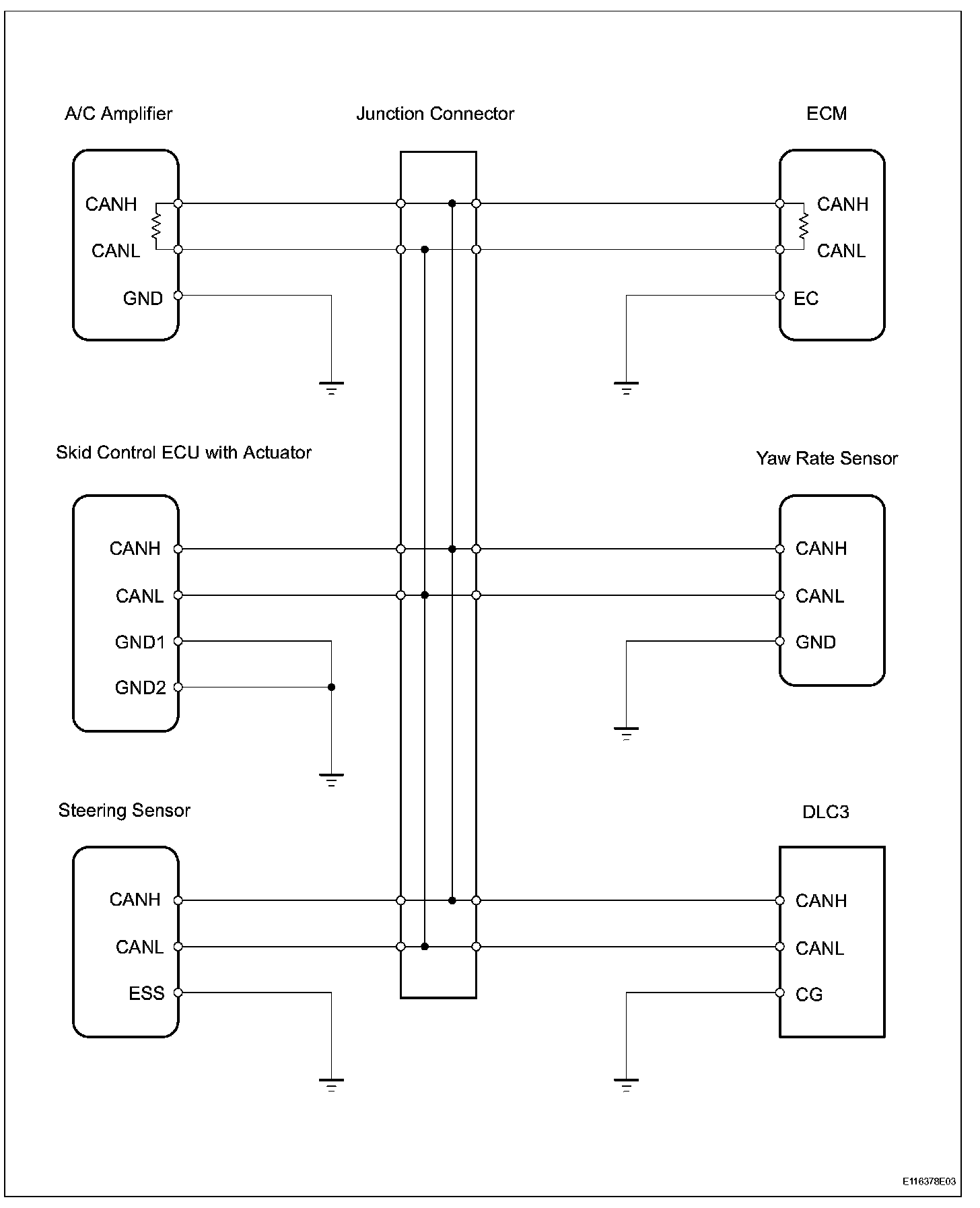

Wiring Diagram:

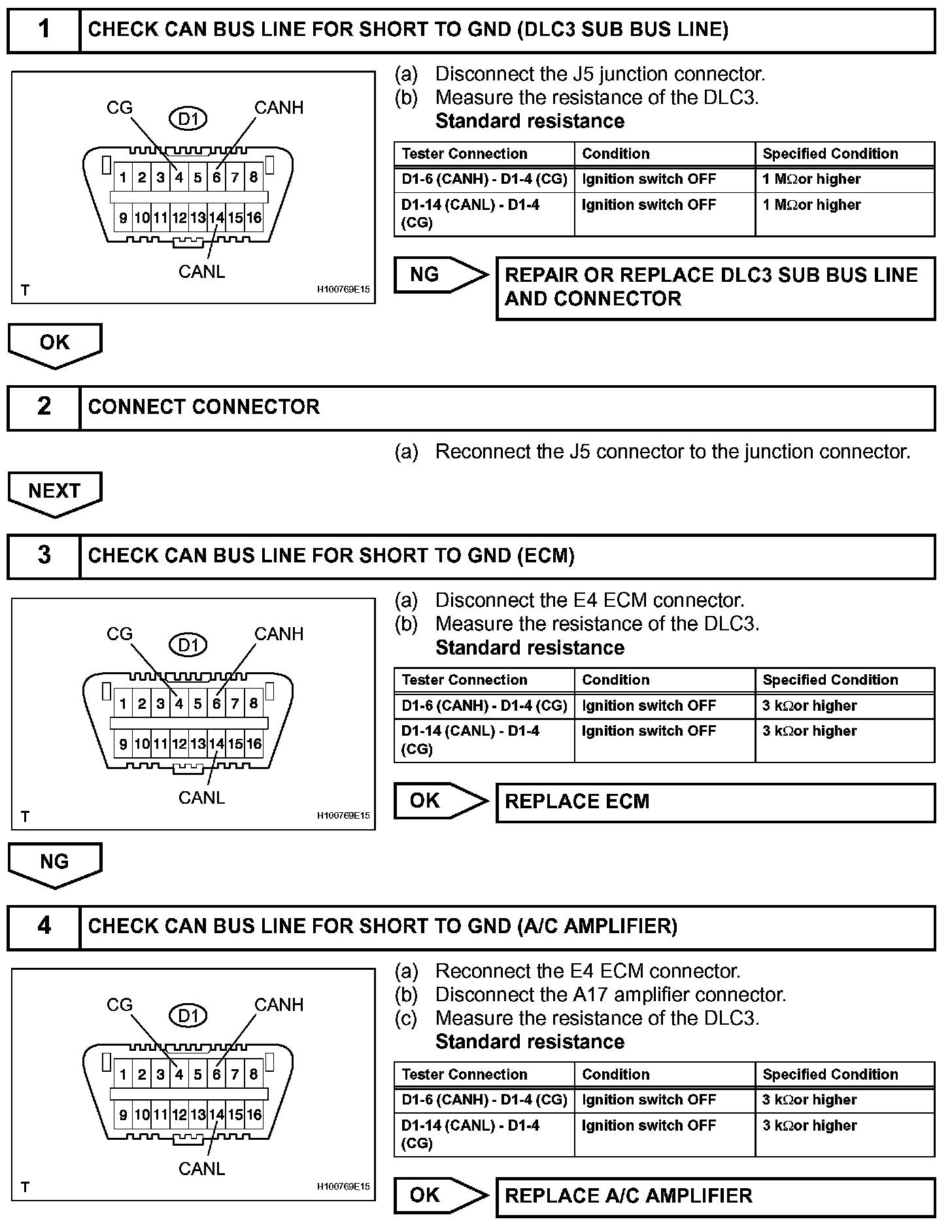

Step 1-4:

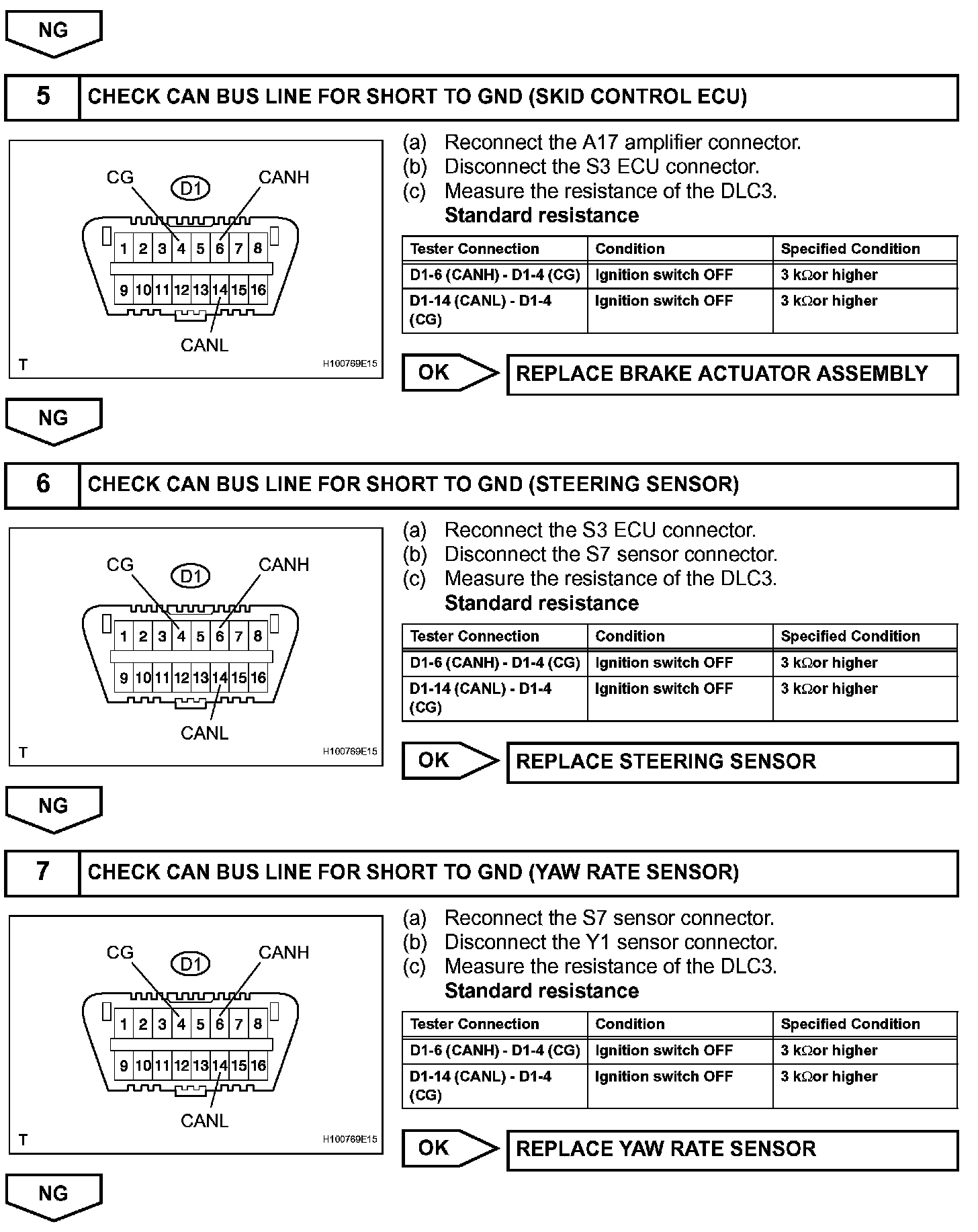

Step 4(continued)-7:

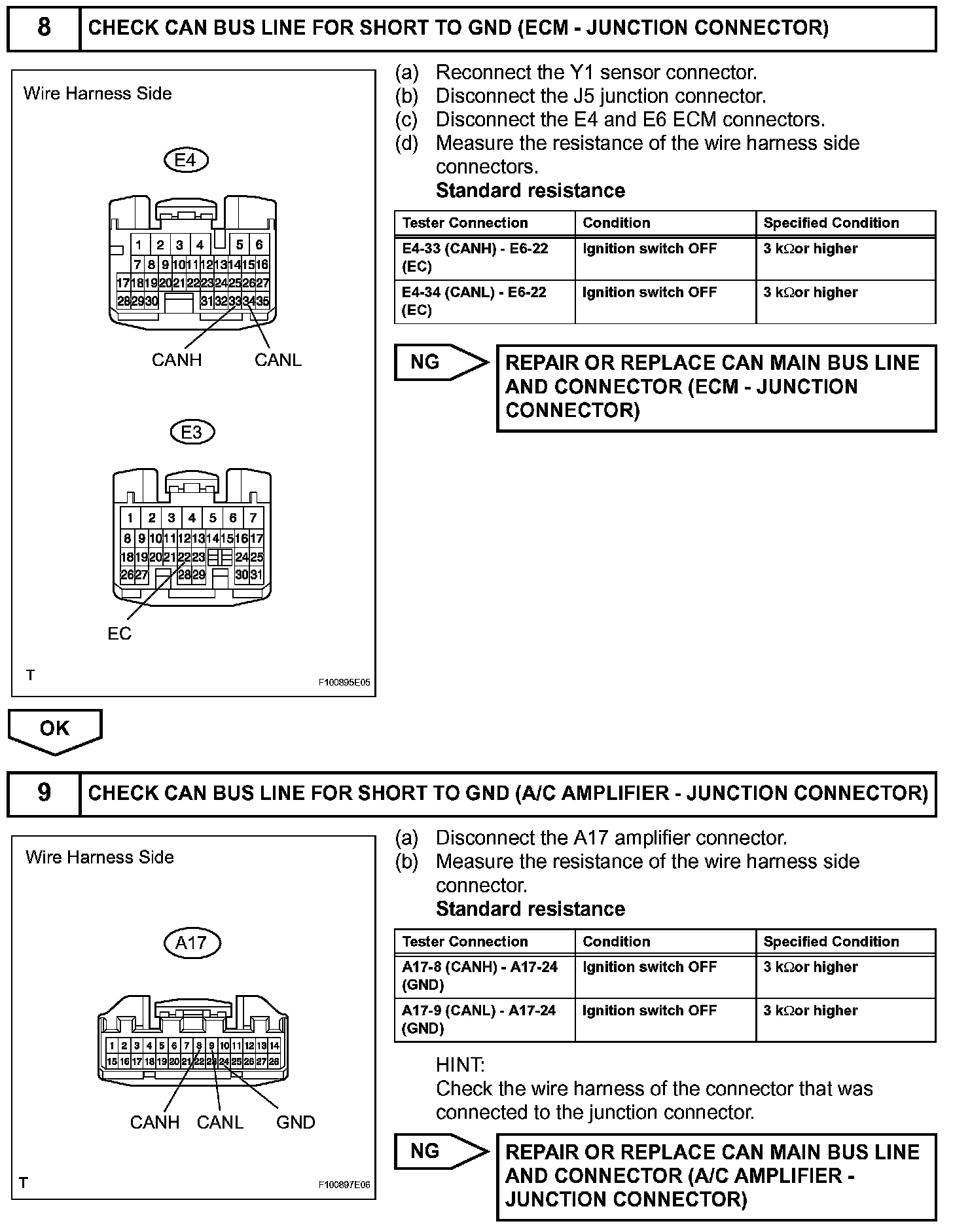

Step 8-9:

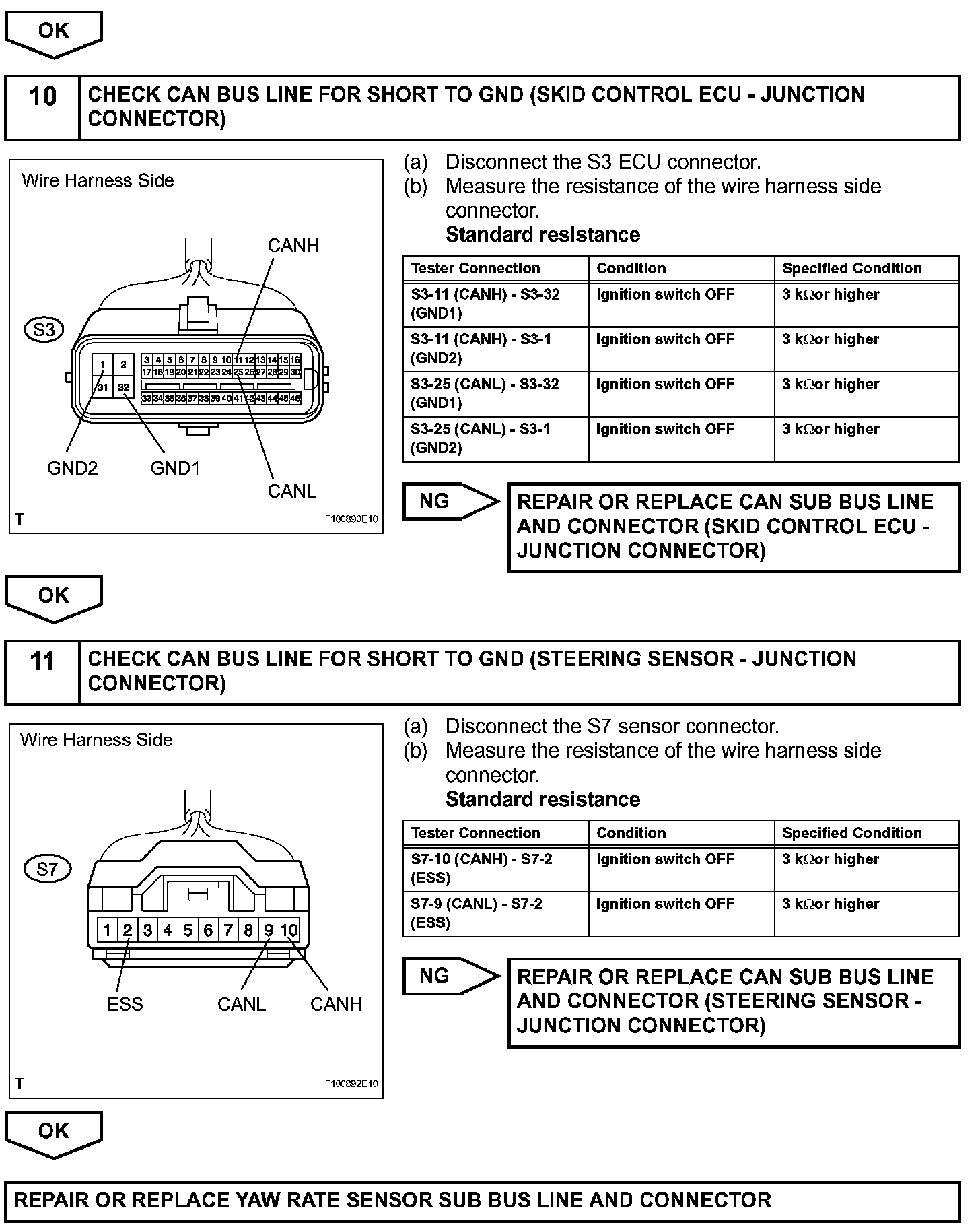

Step 9(continued)-11:

INSPECTION PROCEDURE
