Short to B+ In CAN Bus Line

Short to B+ in CAN Bus Line

DESCRIPTION

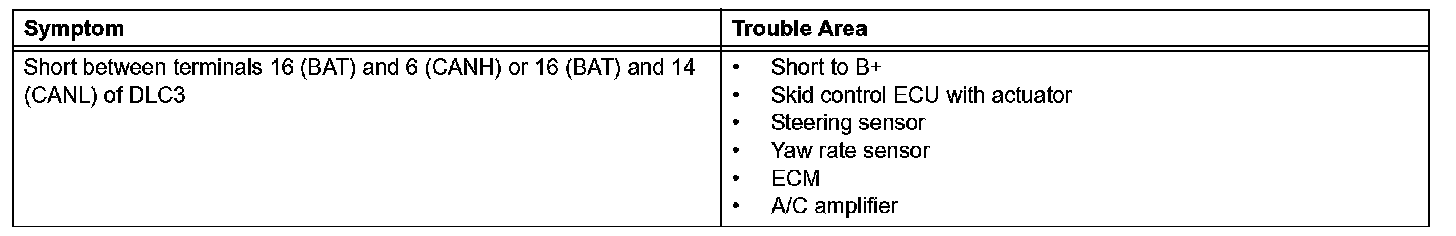

A short to B+ may be occurring in the CAN bus line when there is a short between terminals 16 (BAT) and 6 (CANH) or terminals 16 (BAT) and 14 (CANL) of the DLC3.

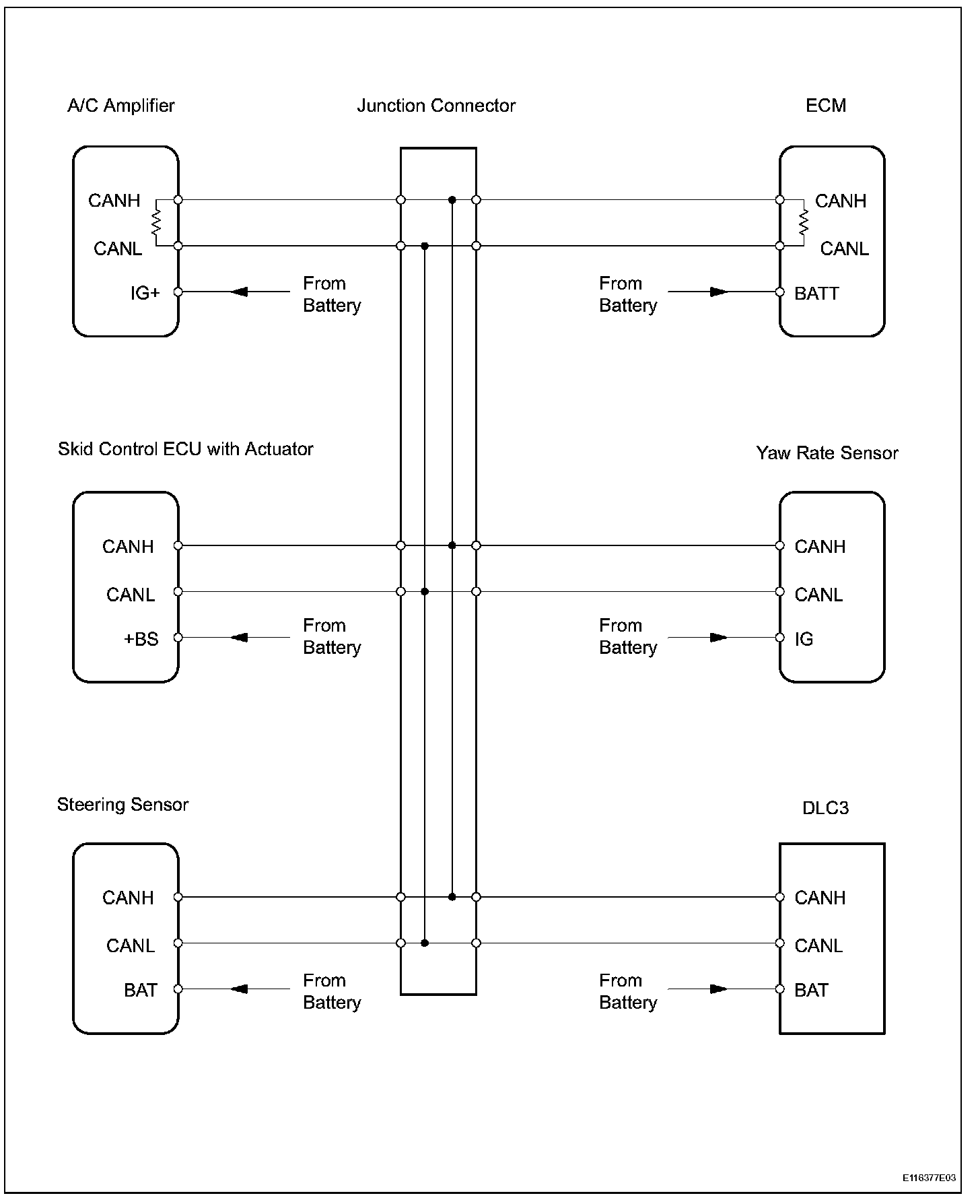

Wiring Diagram:

Step 1-4:

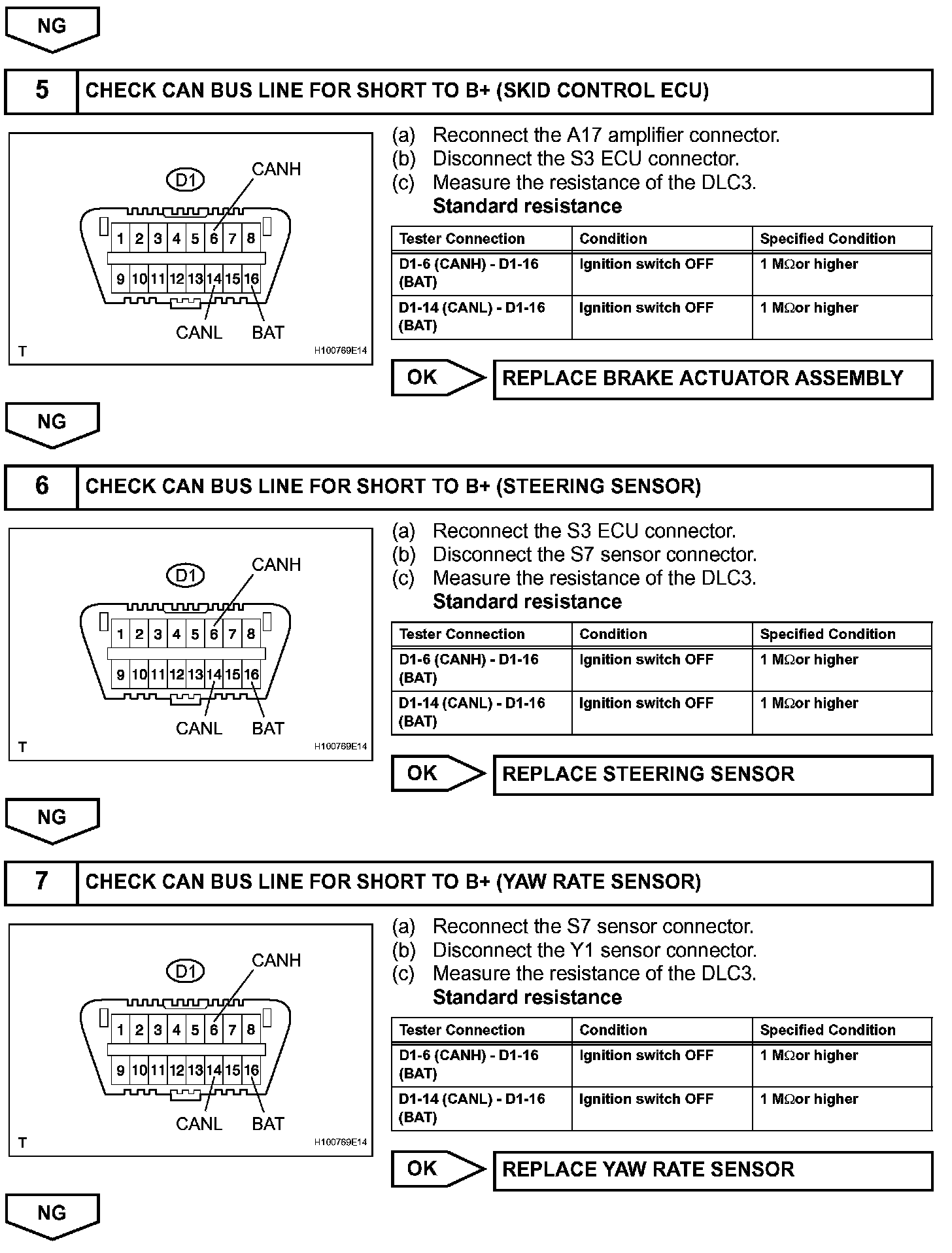

Step 4(continued)-7:

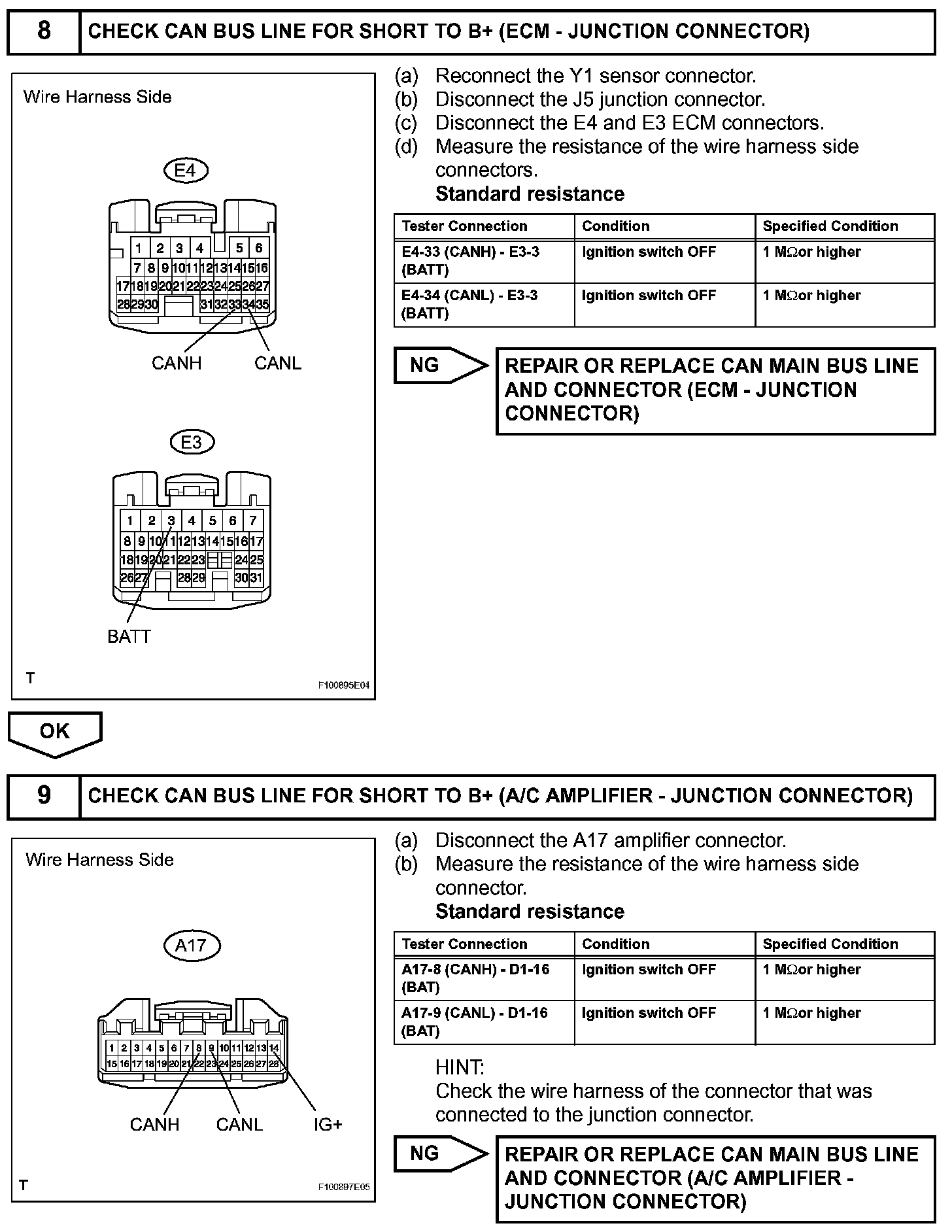

Step 8-9:

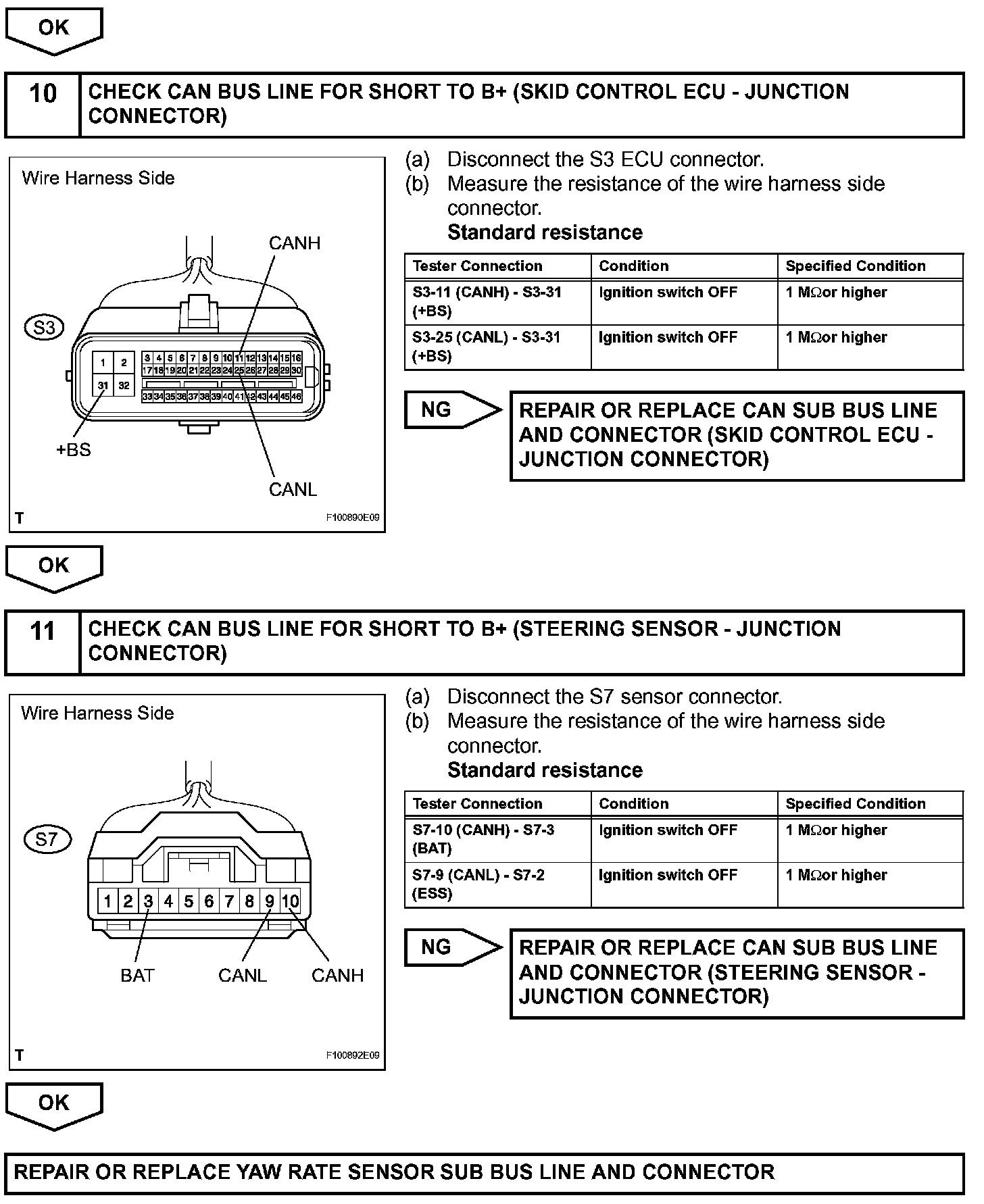

Step 9(continued)-11:

INSPECTION PROCEDURE
