CAN Bus Line

CAN Bus Line

DESCRIPTION
When a CAN communication DTC is output, first measure the resistance between the terminals of the DLC3 to determine the trouble area.

Wiring Diagram:

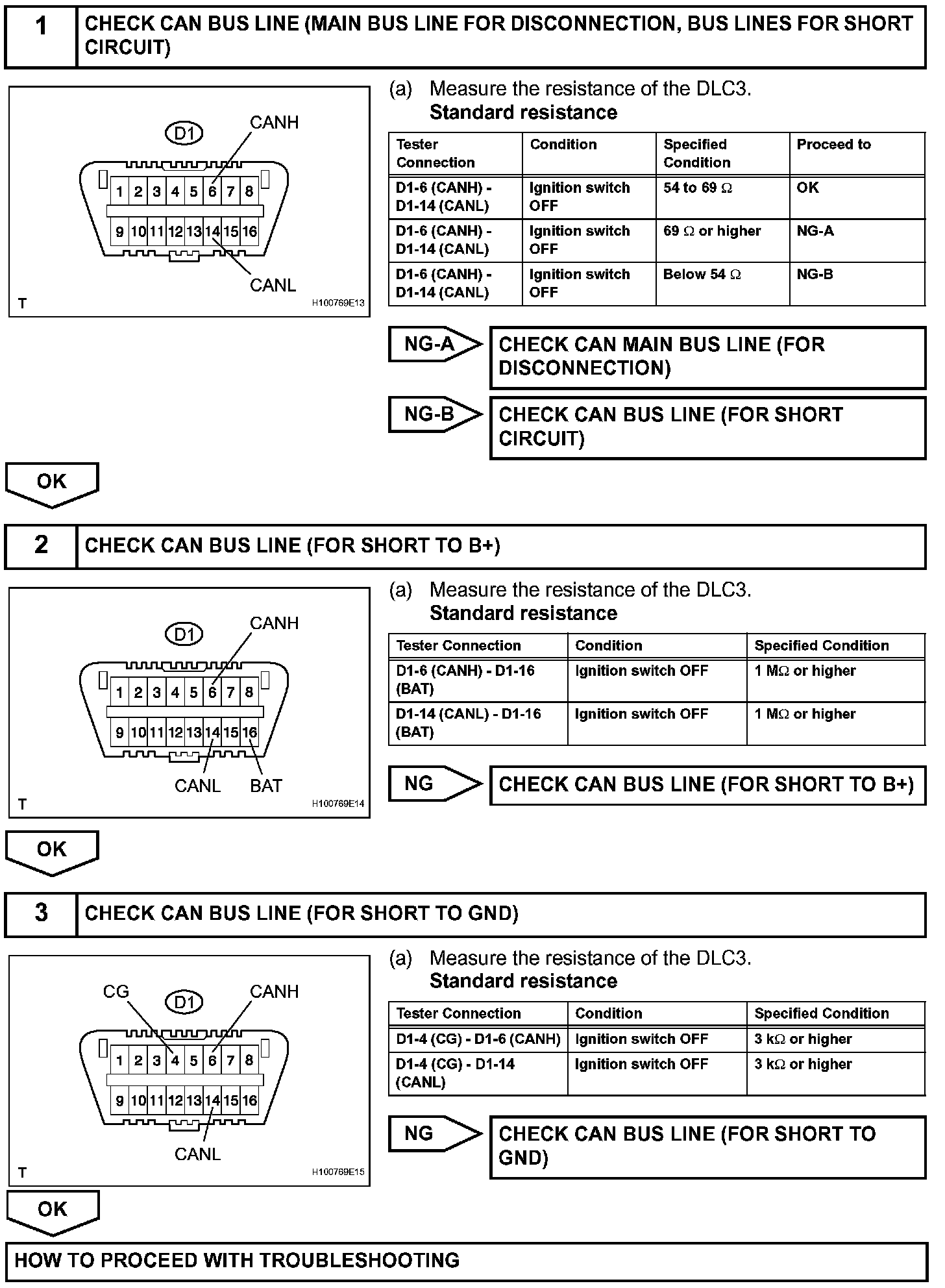

Step 1-3:




INSPECTION PROCEDURE
