Air Conditioning Amplifier Communication Stop Mode
Air Conditioning Amplifier Communication Stop Mode
Air Conditioning Amplifier Communication Stop Mode

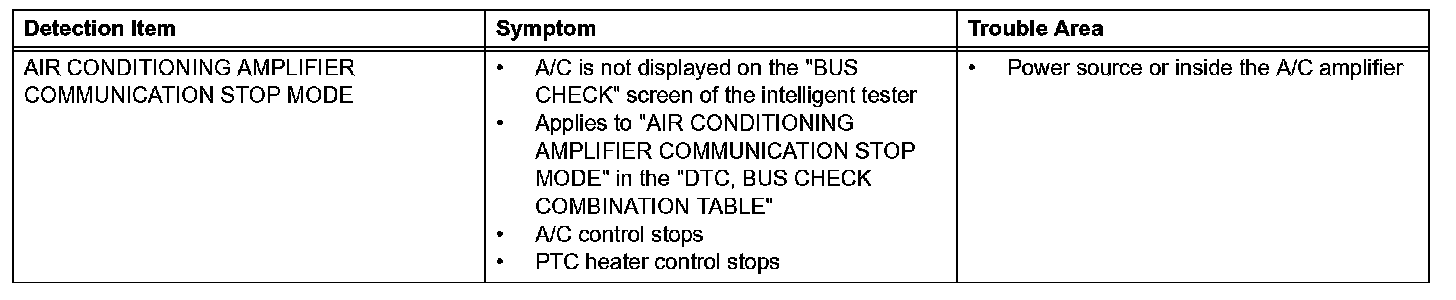

DESCRIPTION

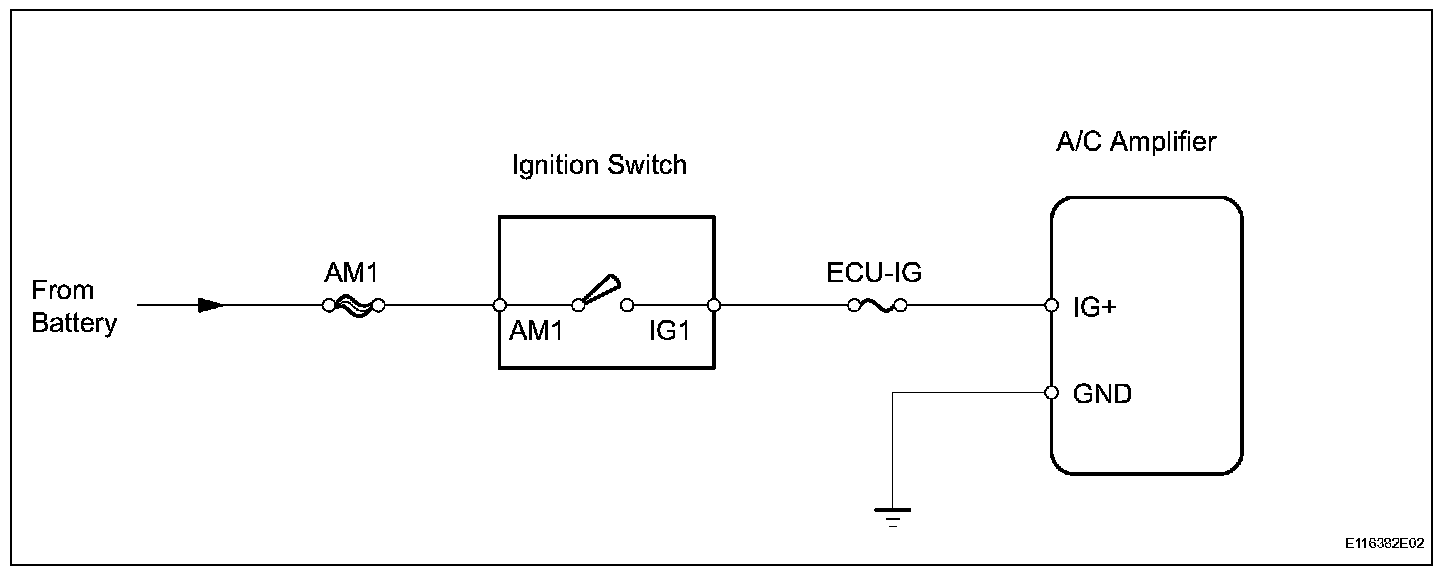

Wiring Diagram:
Step 1:

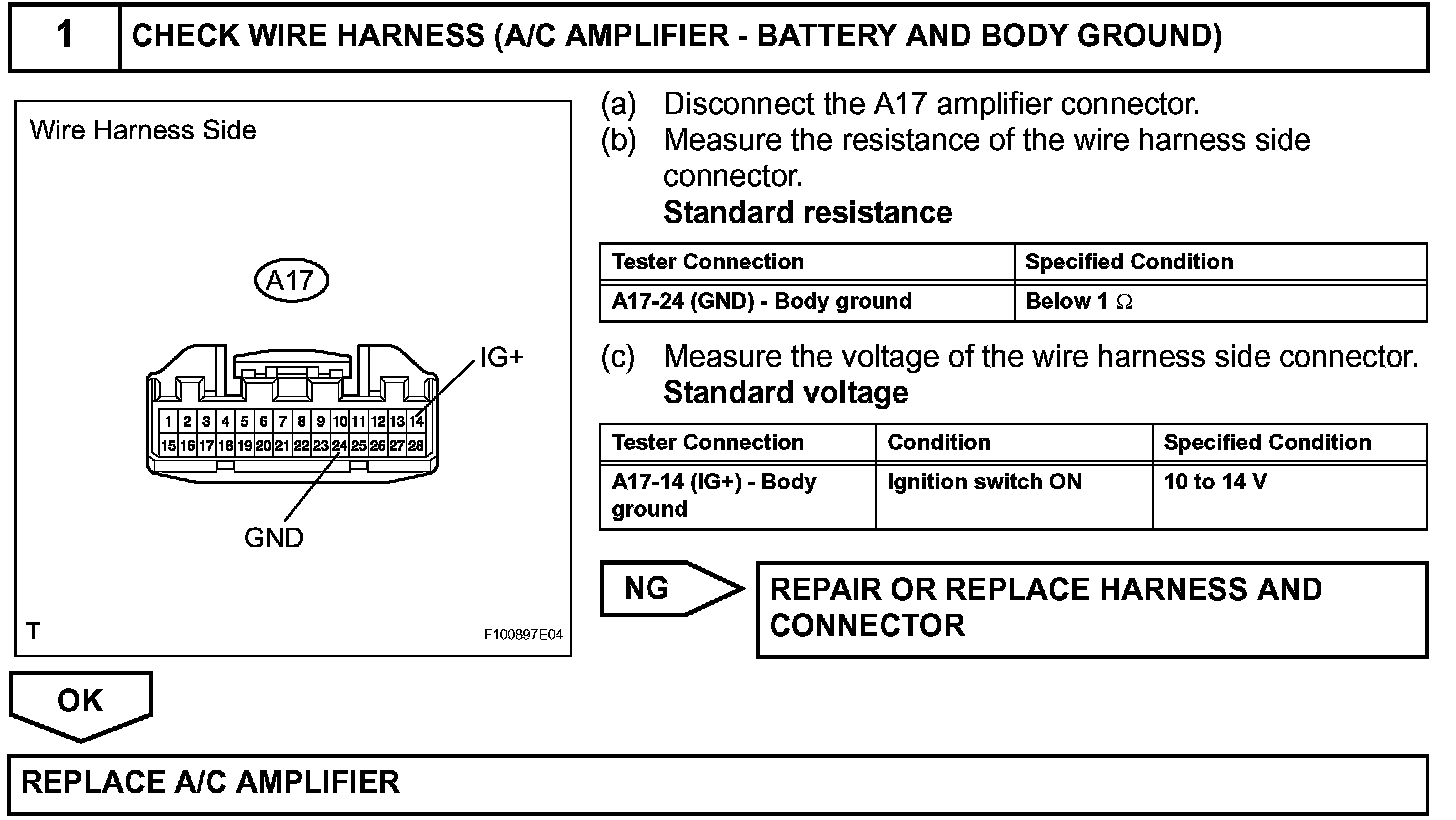

INSPECTION PROCEDURE
