Fusible Link: Locations

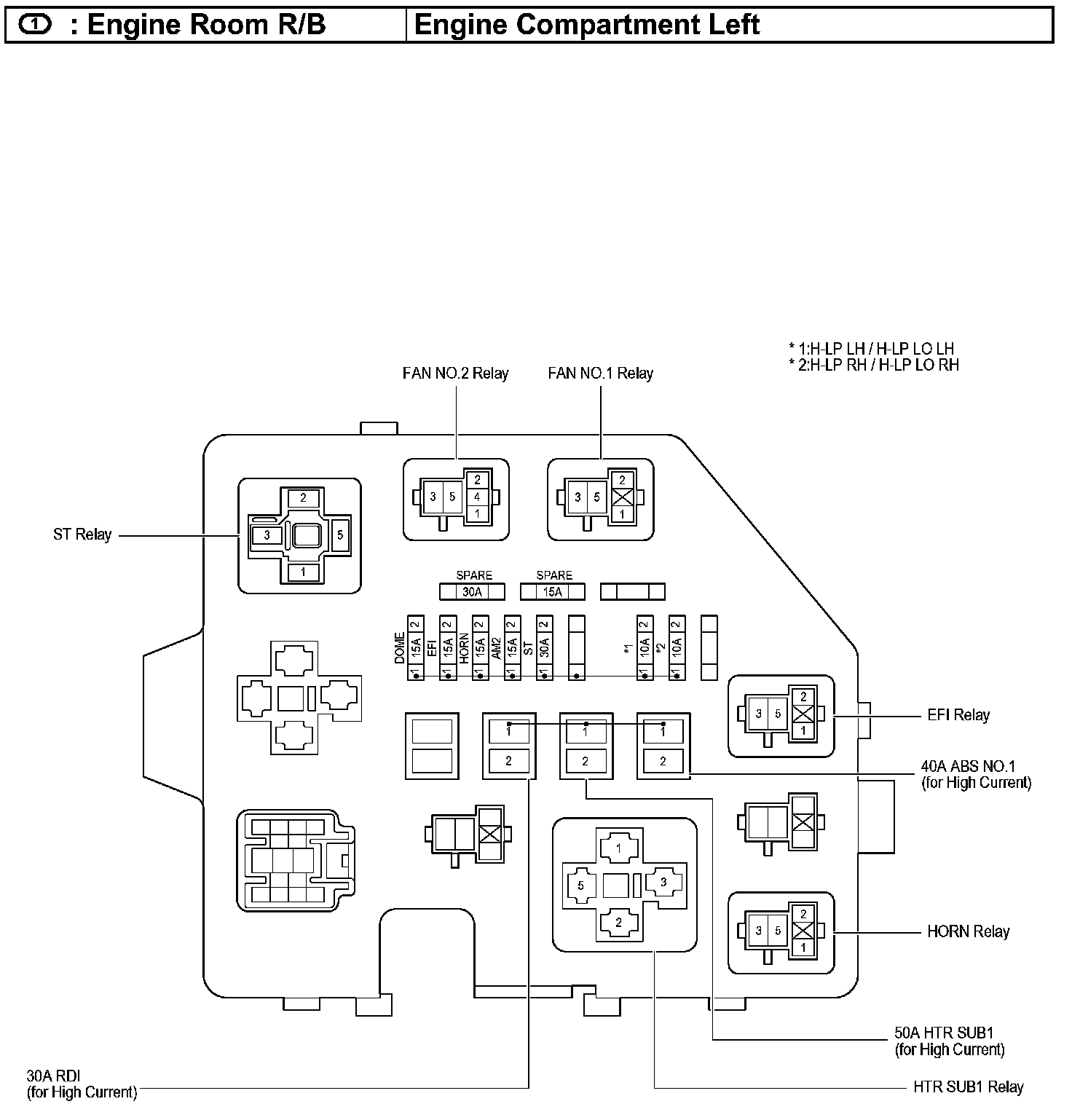

Engine Room R/B:

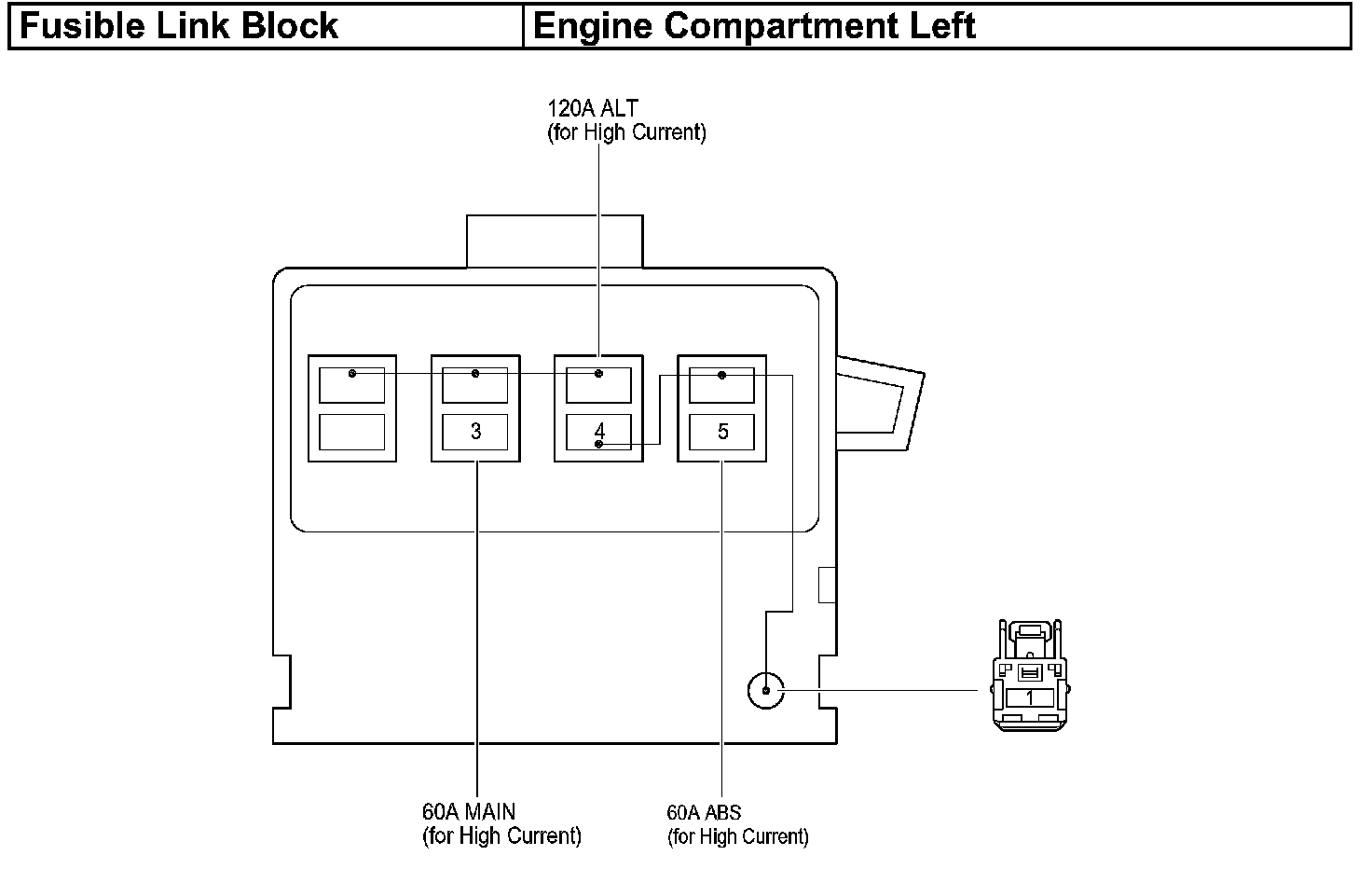

Fusible Link Block:

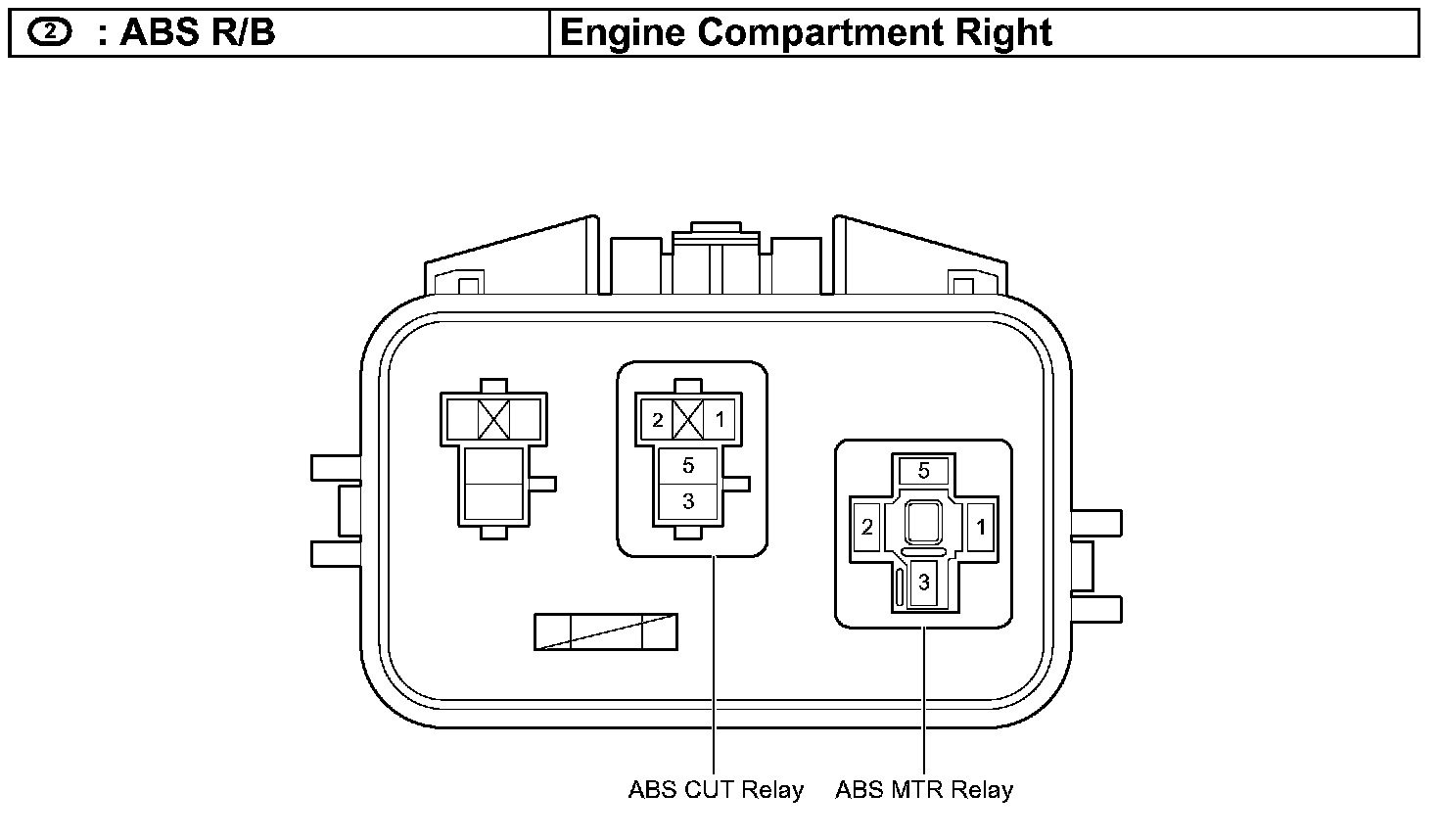

ABS R/B:

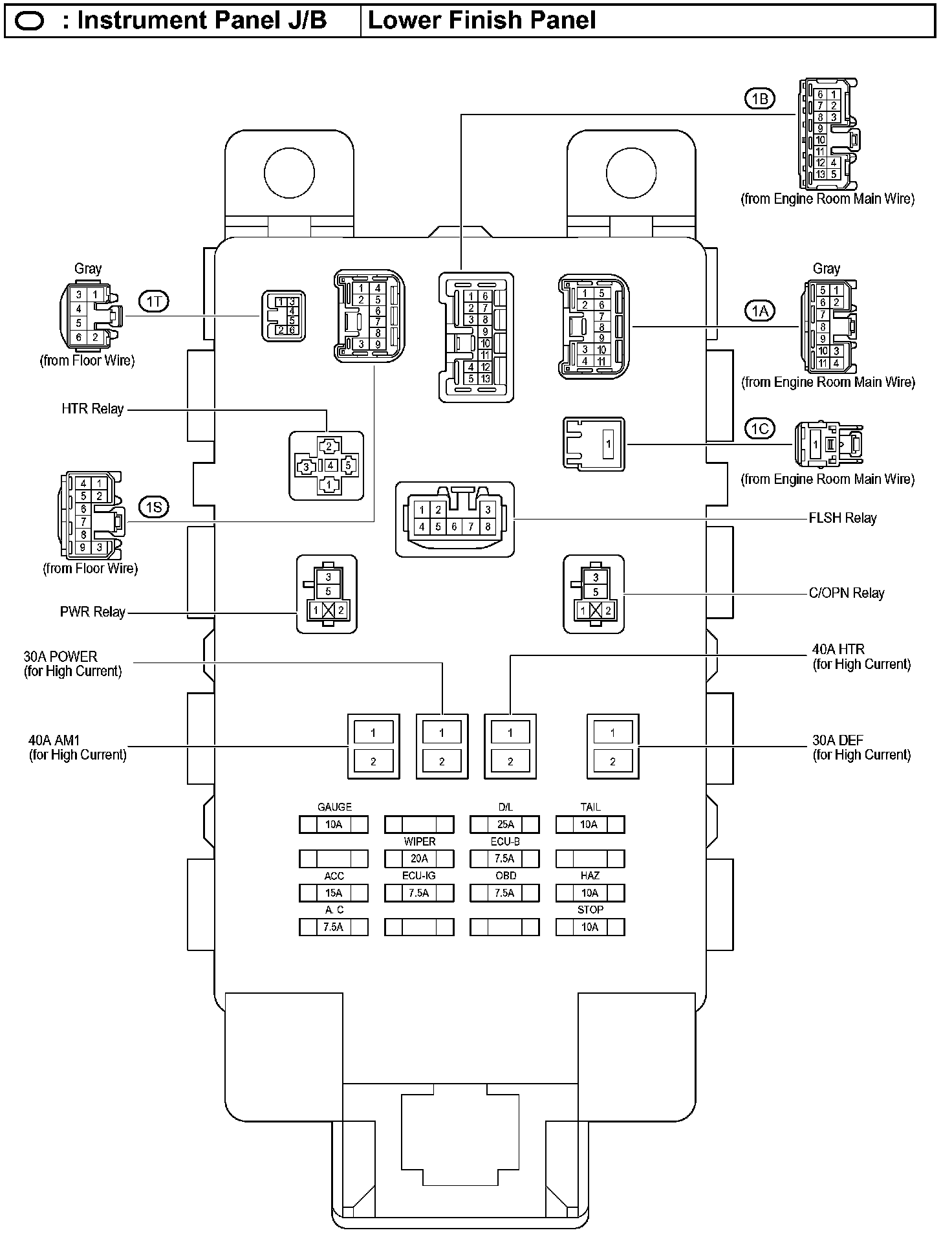

Instrument Panel J/B - Lower Finish Panel:
Details

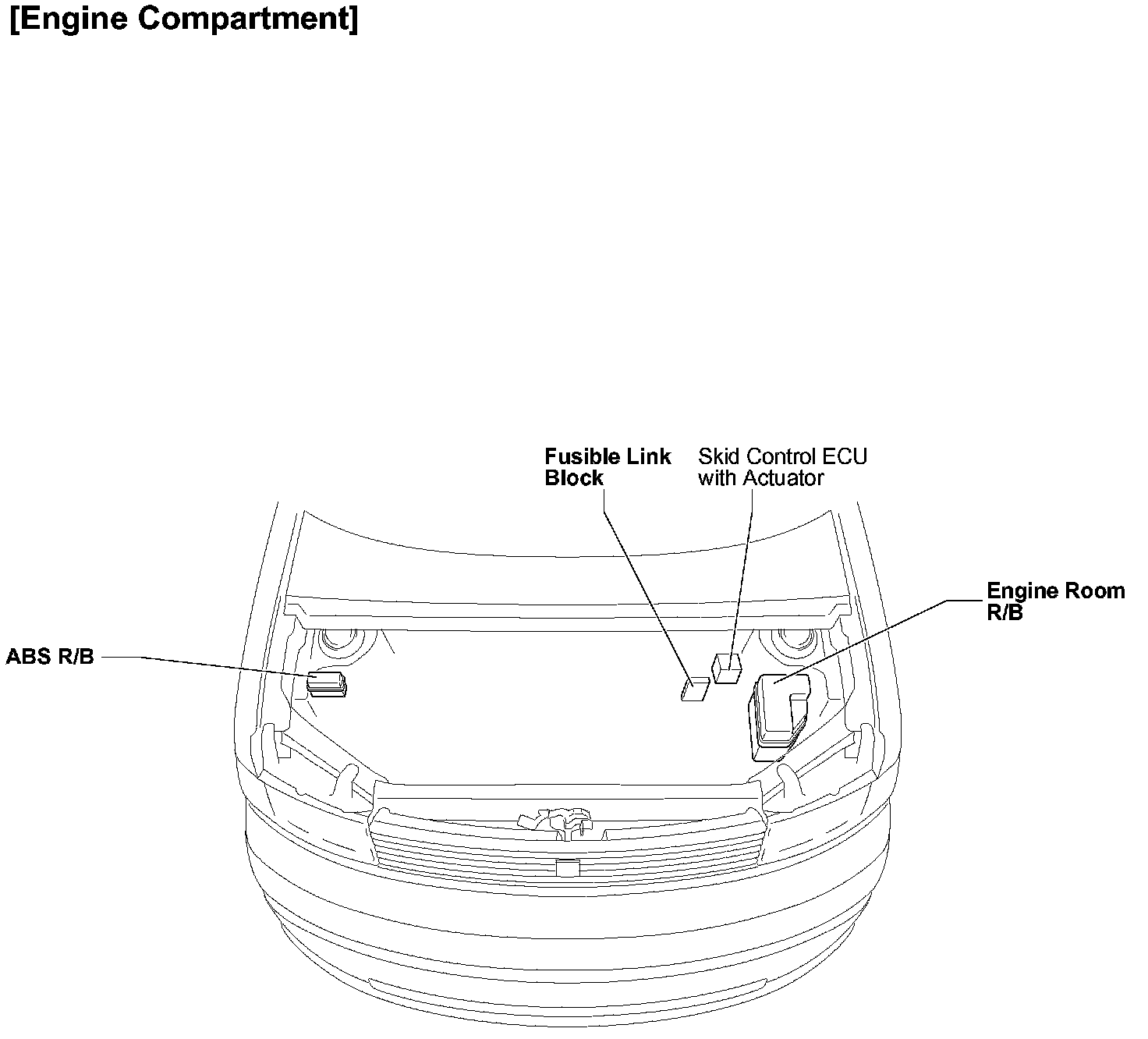

Engine Compartment:

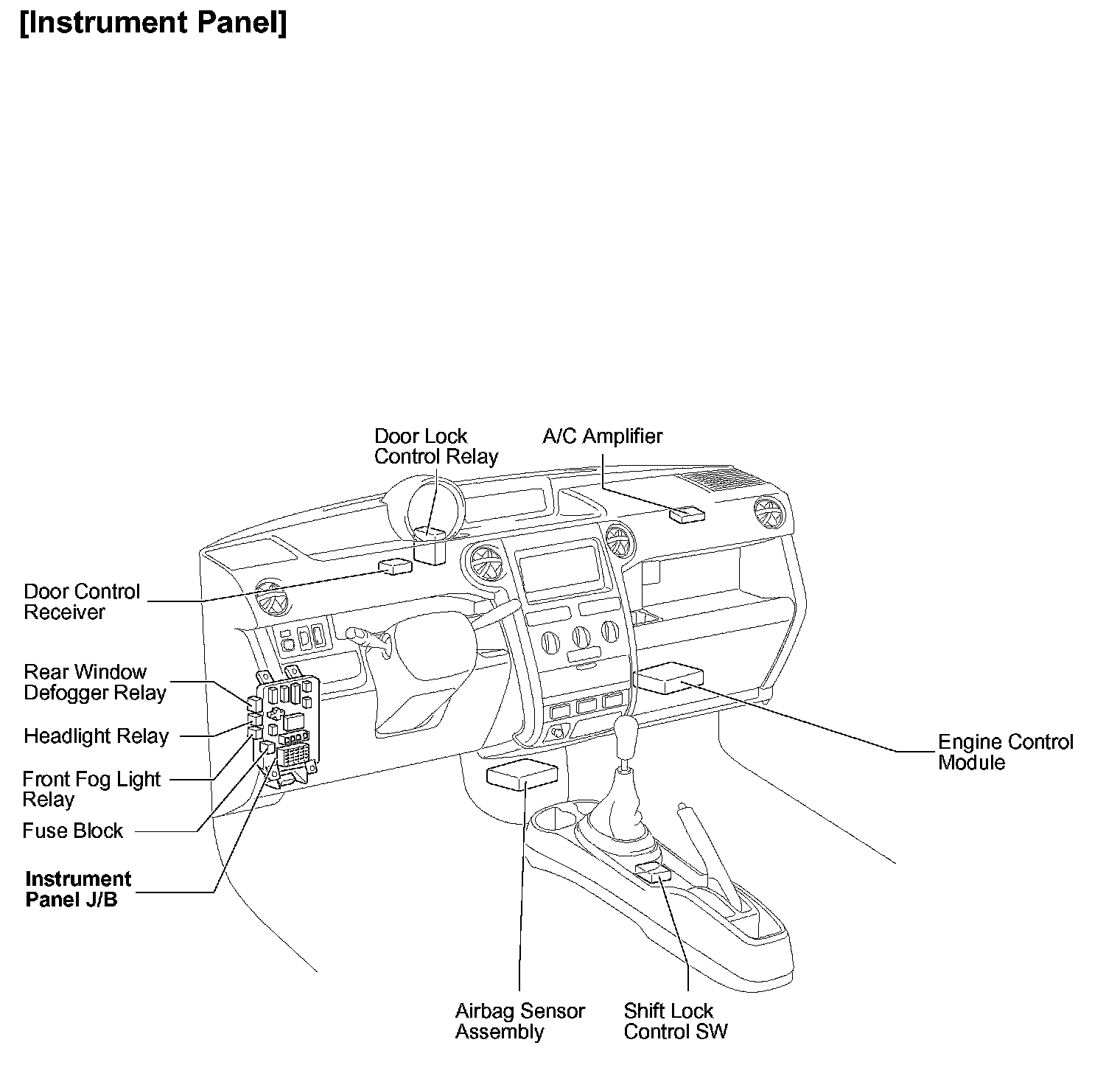

Instrument Panel:
Locations
