Instrument Panel J/B

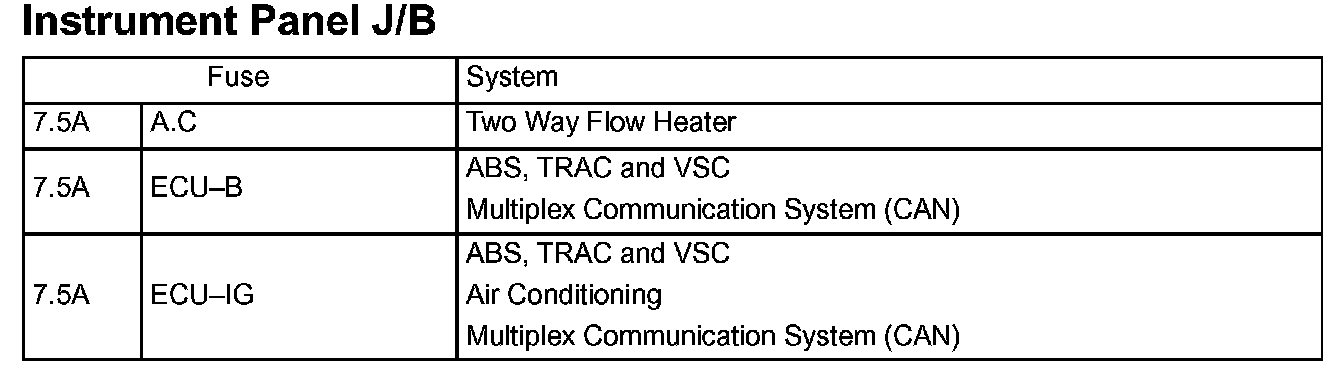

Instrument Panel J/B (Part 1):

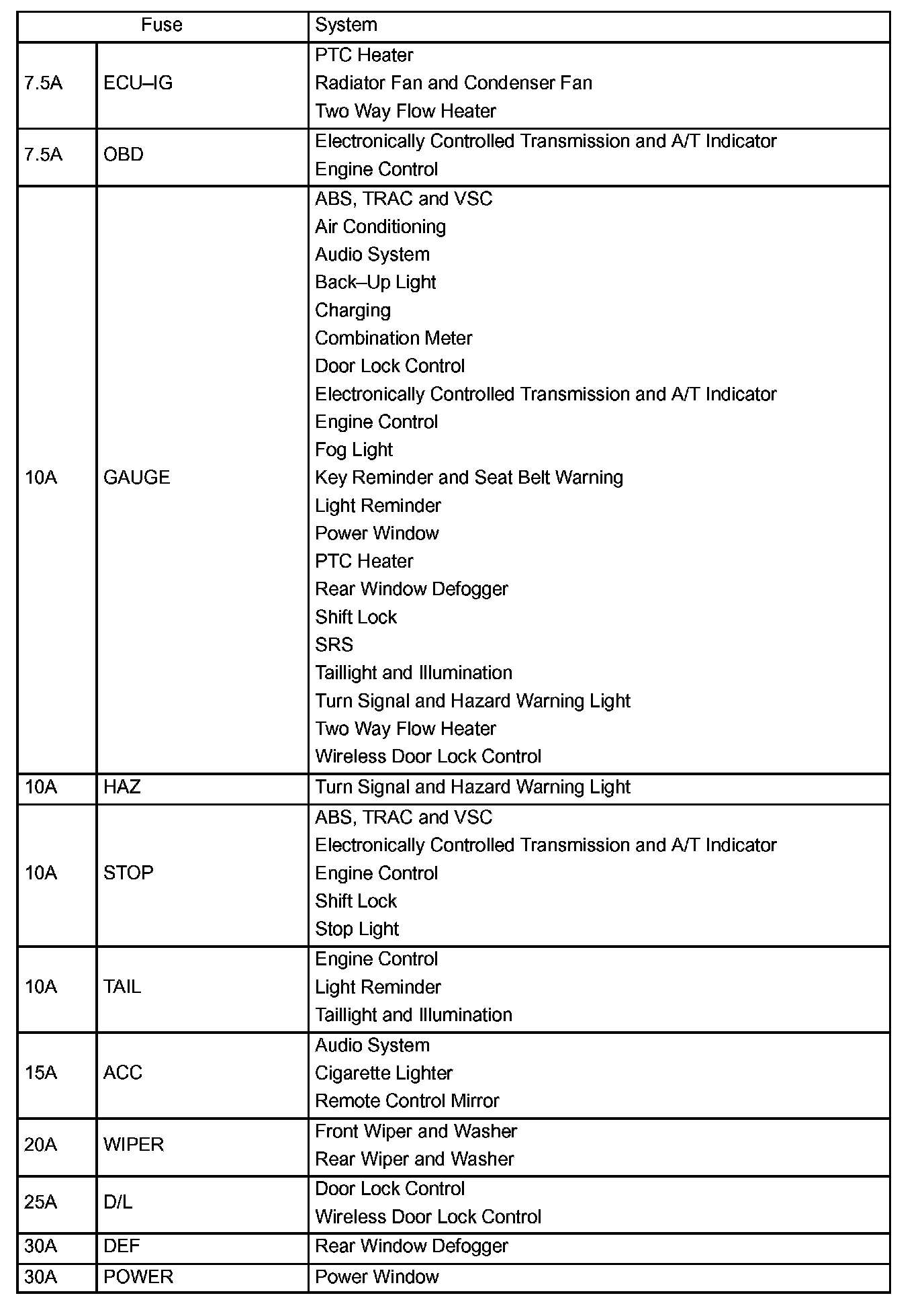

Instrument Panel J/B (Part 2):

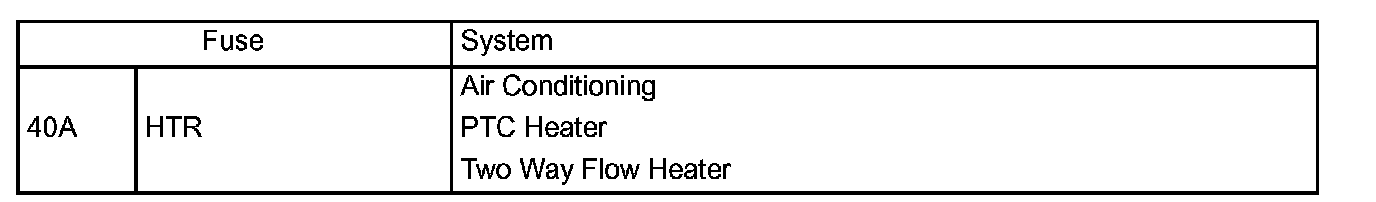

Instrument Panel J/B (Part 3):
