Symptom Related Diagnostic Procedures

PROBLEM SYMPTOMS TABLE

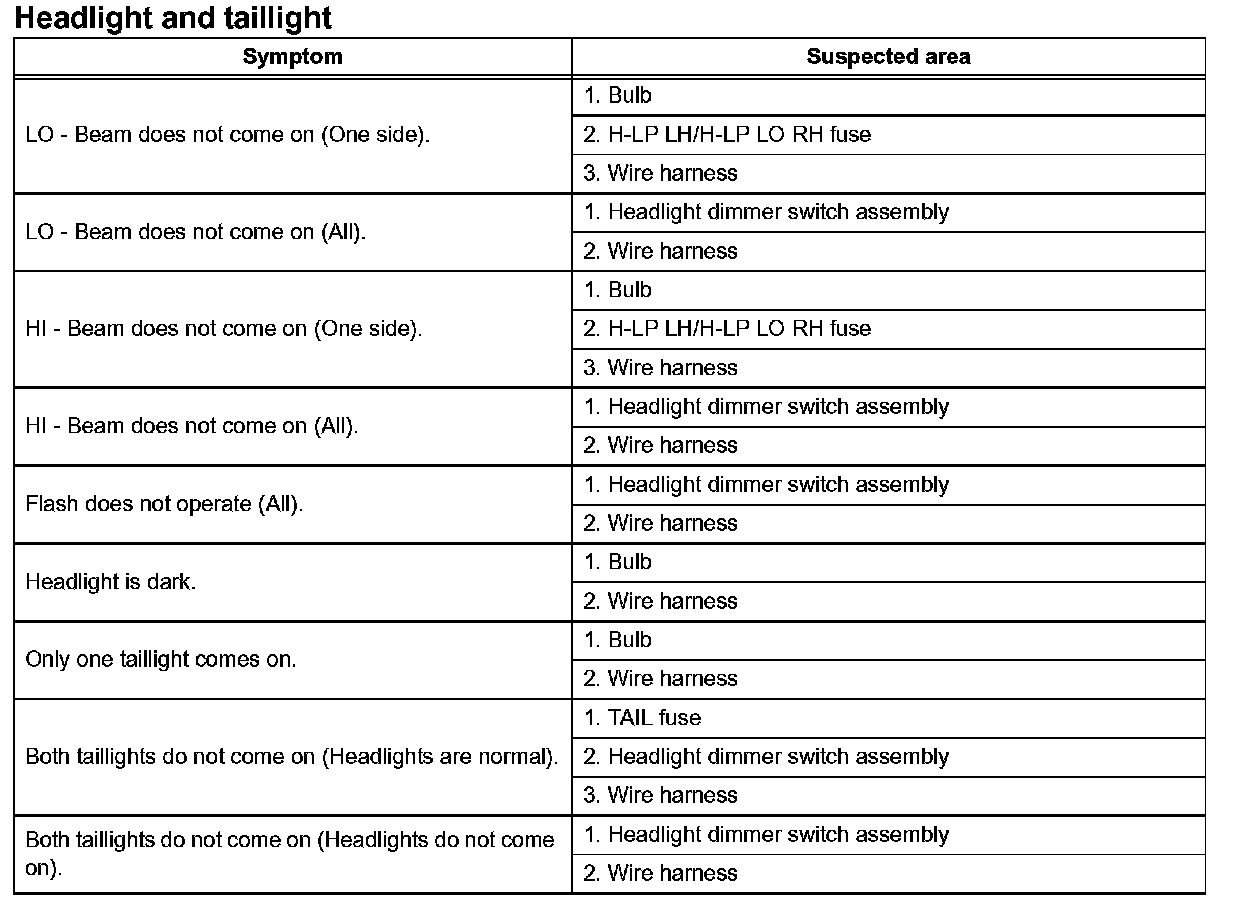

Problem Symptoms Table - Headlight And Taillight:

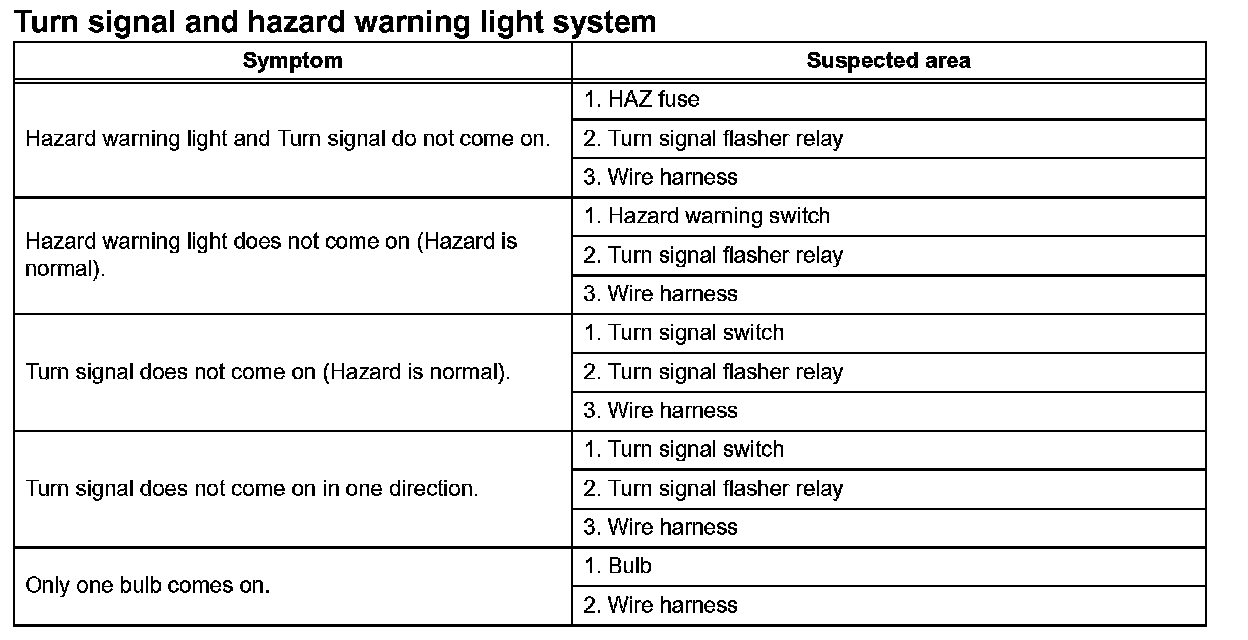

Problem Symptoms Table - Turn Signal And Hazard Warning Light System:

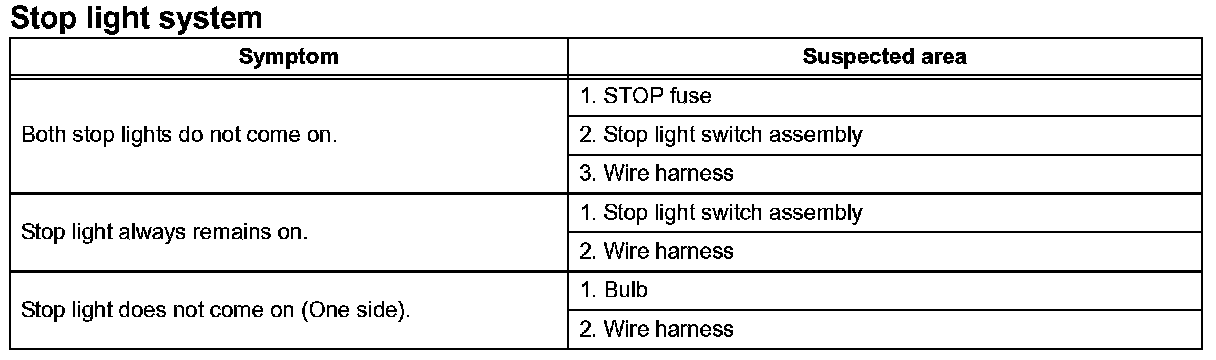

Problem Symptoms Table - Stop Light System:

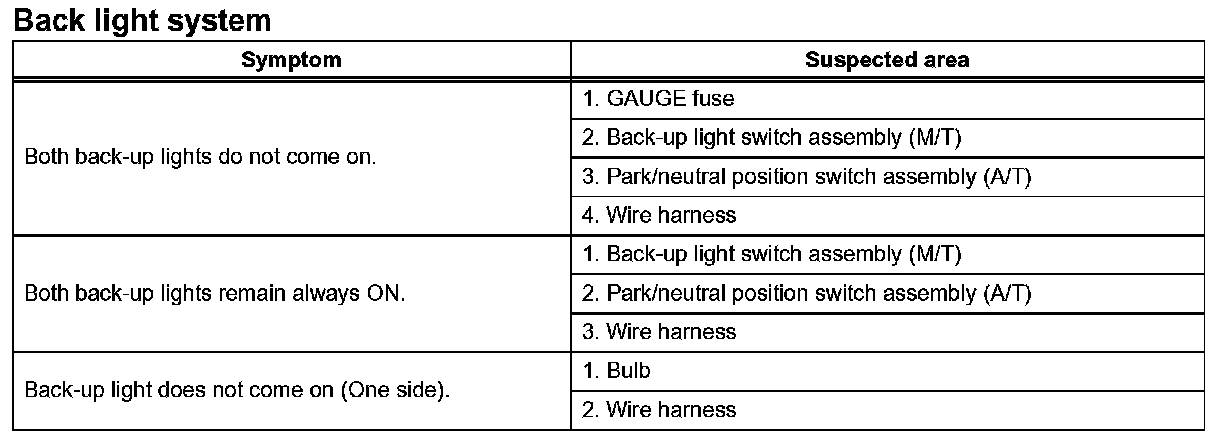

Problem Symptoms Table - Back Light System:

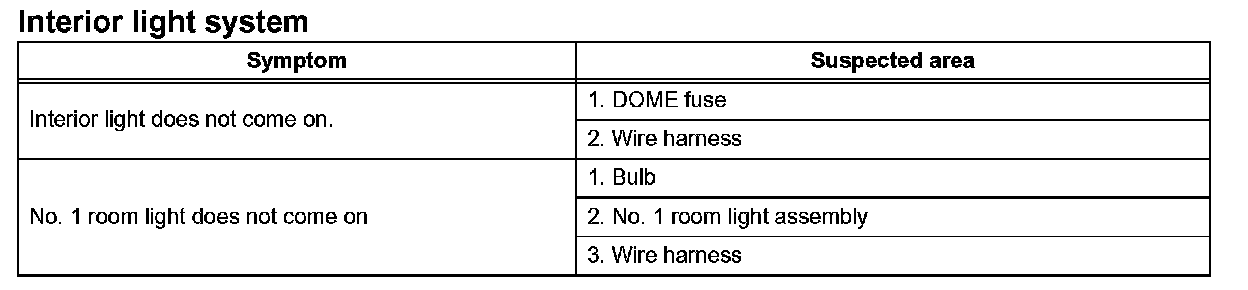

Problem Symptoms Table - Interior Light System:

HINT: Use the given table to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
