Disassembly and Reassembly
REAR COMBINATION LIGHT ASSEMBLYDISASSEMBLY
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. REMOVE REAR COMBINATION LIGHT BODY GASKET LH
2. REMOVE REAR COMBINATION LIGHT BULB

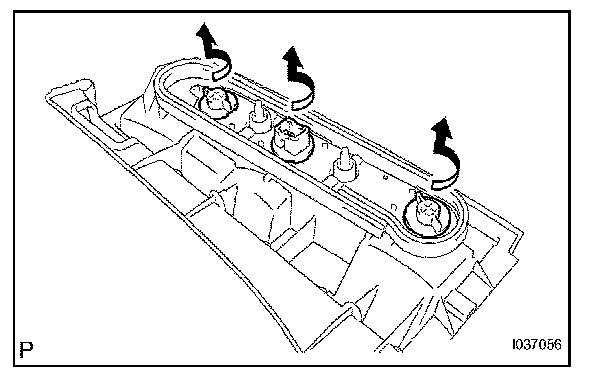

a. Remove the 3 light sockets as shown in the illustration.
b. Remove the 3 light bulbs from the light sockets.
3. REMOVE REAR COMBINATION LIGHT LENS LH

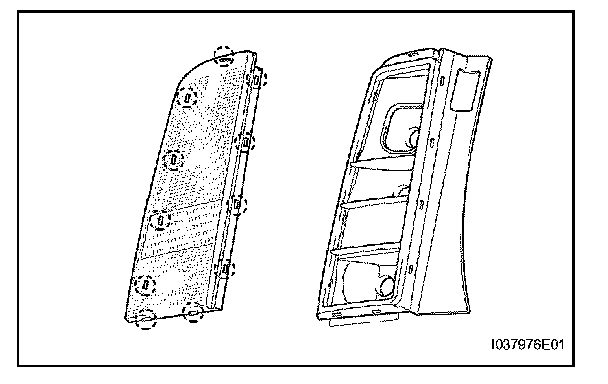

a. Using a screwdriver, detach the 11 claws and remove the rear combination light lens.
4. REMOVE REAR COMBINATION LIGHT LENS GASKET LH
REASSEMBLY
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.
1. INSTALL REAR COMBINATION LIGHT LENS GASKET LH
a. Install a new rear combination light lens gasket on the rear combination light lens.
NOTE: Be sure to replace the rear combination lens gasket with a new one because it cannot be reused.
2. INSTALL REAR COMBINATION LIGHT LENS LH

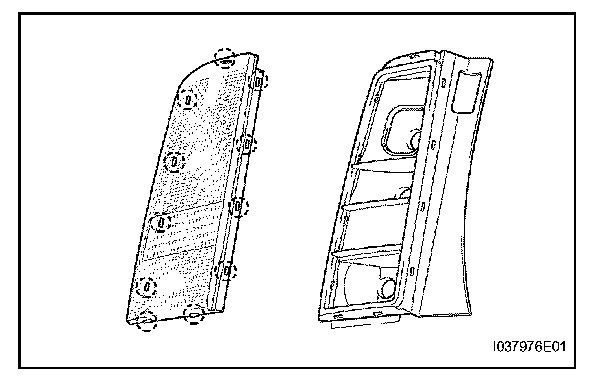

a. Attach the 11 claws to install the rear combination light lens.
NOTE: Make sure that water cannot go inside the rear combination light by applying water with automatic car wash or a hose.
3. INSTALL REAR COMBINATION LIGHT BULB
a. Install the 3 light bulbs to the light sockets.
b. Install the 3 light sockets.
4. INSTALL REAR COMBINATION LIGHT BODY GASKET LH
