Low Pitched Horn

REMOVAL

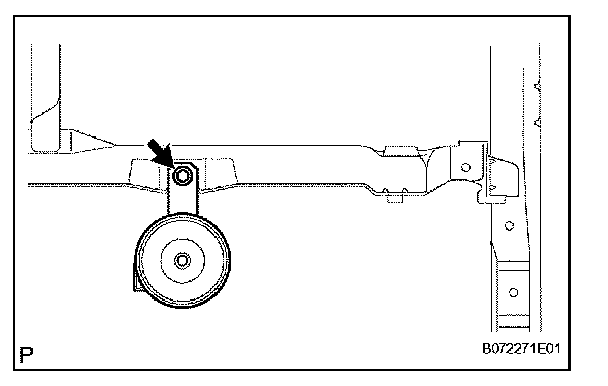

1. REMOVE LOW PITCHED HORN
a. Disconnect the horn connector.
b. Remove the bolt and horn.

INSTALLATION

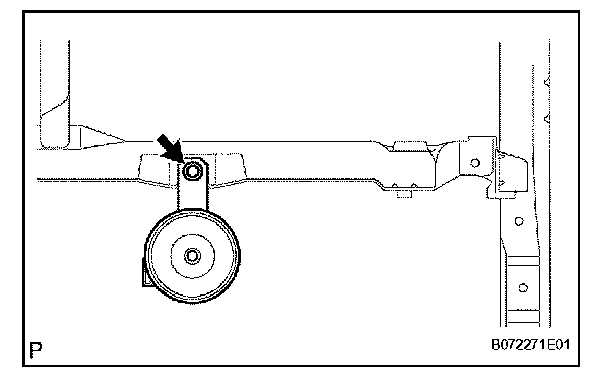

1. INSTALL LOW PITCHED HORN
a. Attach the horn stay to the body panel and then install the horn with the bolt.

Torque: 19.5 N.m (199 kgf.cm, 14 ft.lbf)

b. Connect the horn connector.
