Headlamp Relay: Testing and Inspection
HEADLIGHT RELAYINSPECTION

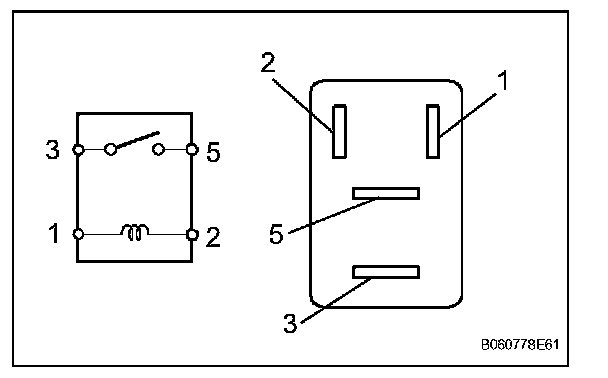

1. INSPECT HEADLIGHT RELAY

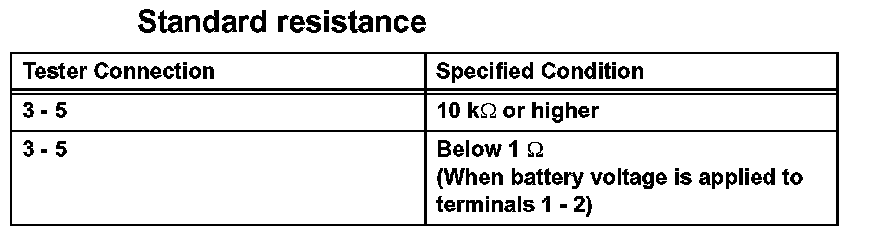

a. Measure the resistance of the relay.
If the result is not as specified, replace the relay.
INSPECTION
1. INSPECT HEADLIGHT RELAY
a. Measure the resistance of the relay.
If the result is not as specified, replace the relay.
