Front Door Courtesy Switch
INSPECTION
1. INSPECT FRONT DOOR COURTESY SWITCH ASSEMBLY
a. Inspect the front door courtesy switch.

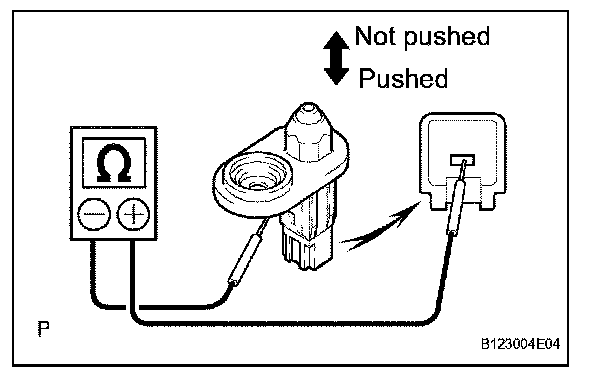

1. Measure the resistance of the switch.

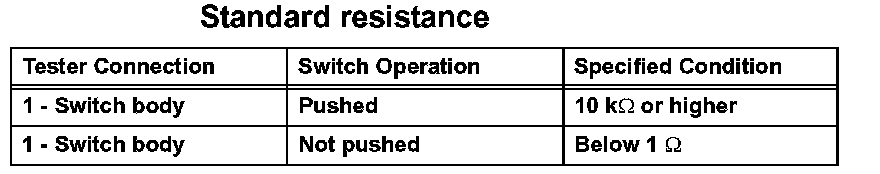

If the result is not as specified, replace the switch assembly.
1. INSPECT FRONT DOOR COURTESY SWITCH ASSEMBLY
a. Inspect the front door courtesy switch.
1. Measure the resistance of the switch.
If the result is not as specified, replace the switch assembly.
