Warning Buzzer Does Not Sound

Warning Buzzer Does Not Sound

Wiring Diagram:

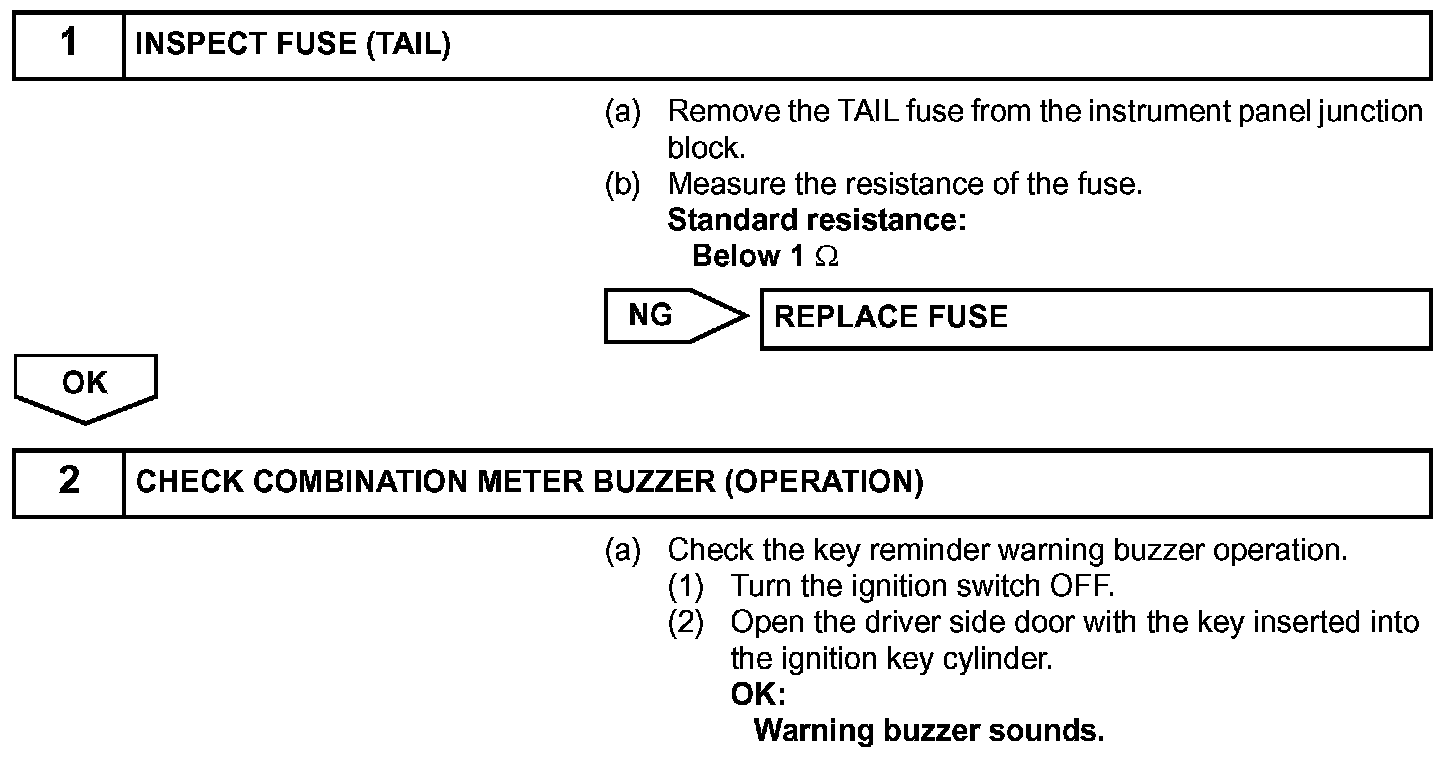

Step 1-2:

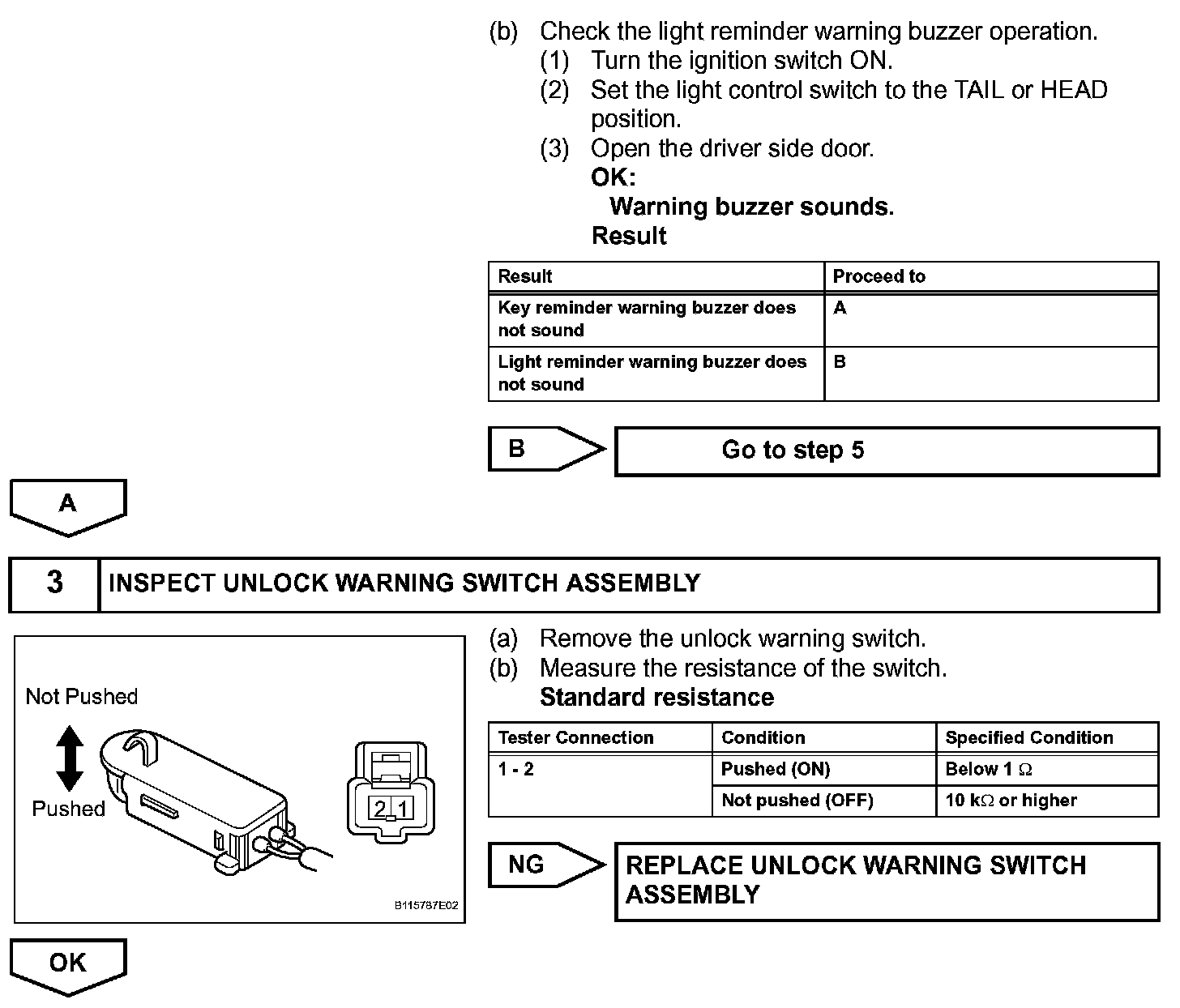

Step 2(continued)-3:

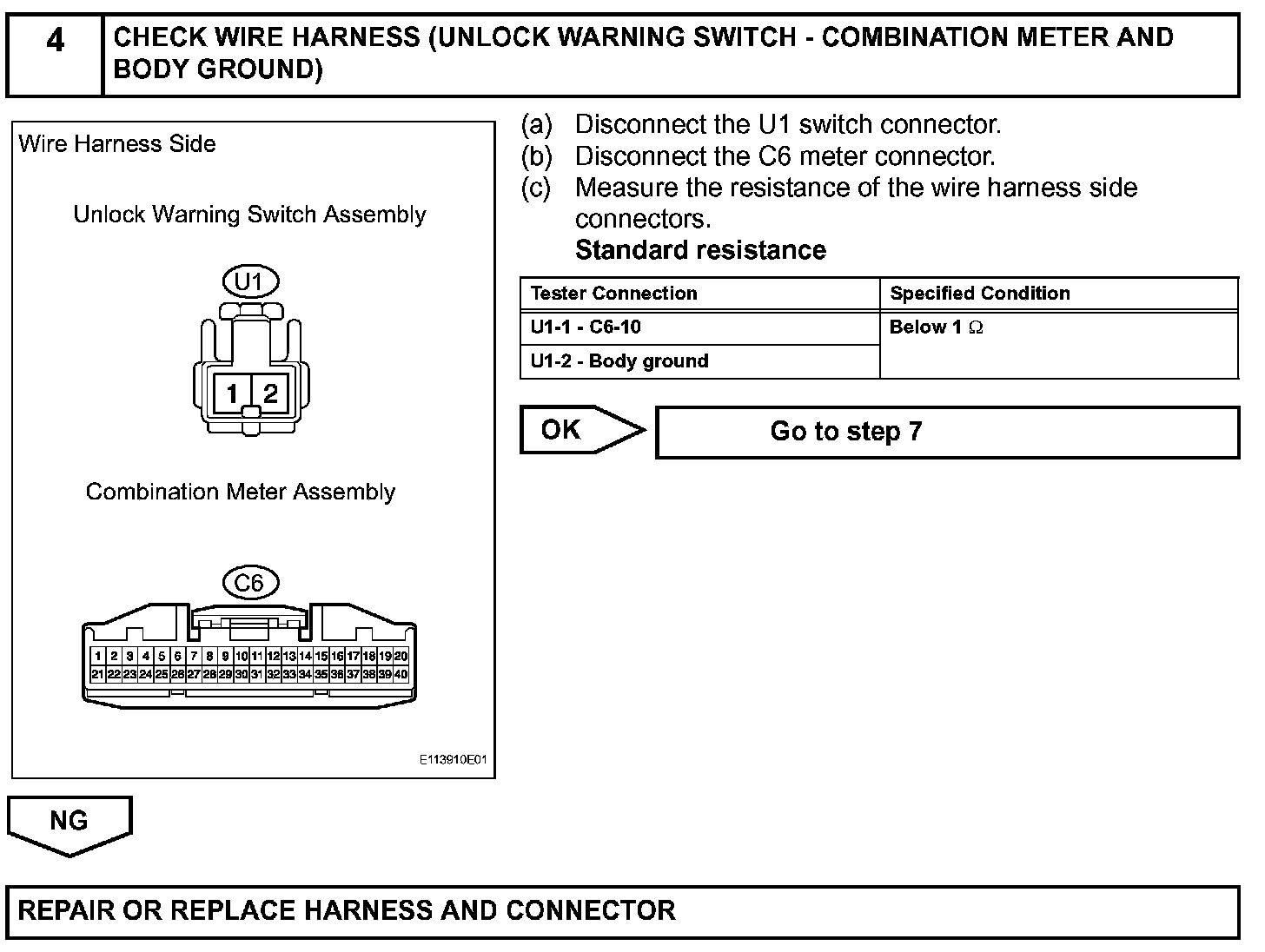

Step 4:




Step 5-6:

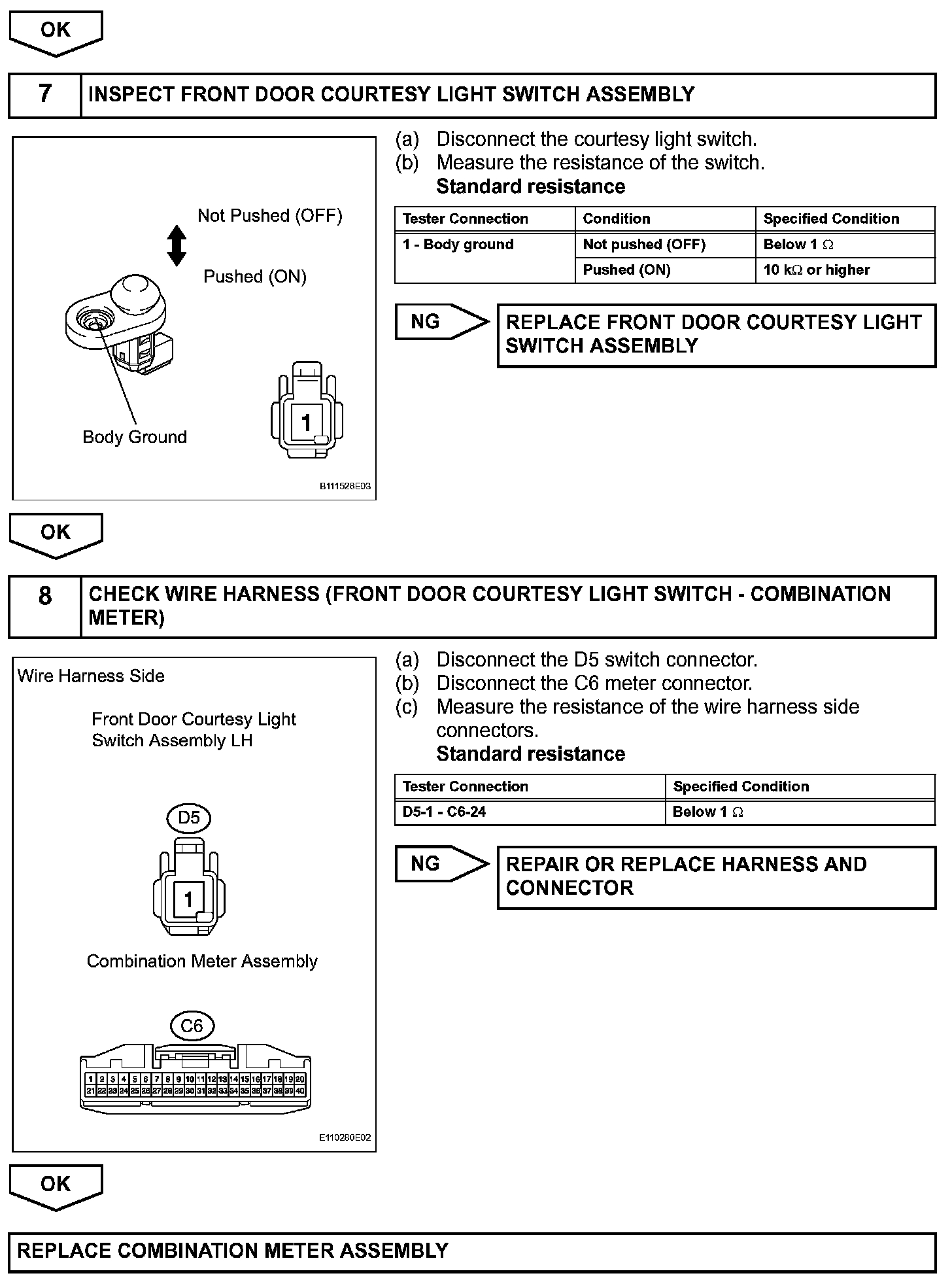

Step 6(continued)-8:




INSPECTION PROCEDURE
