Symptom Index

PROBLEM SYMPTOMS TABLE

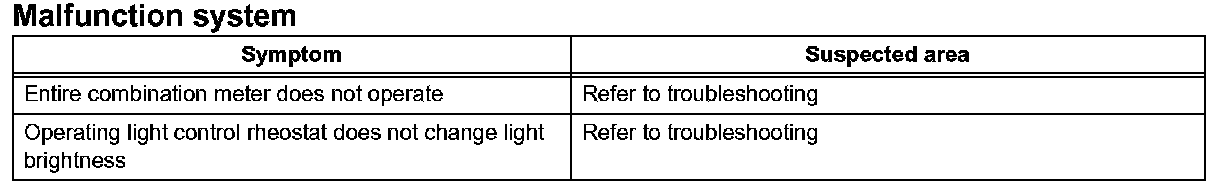

Problem Symptoms Table - Malfunction System:

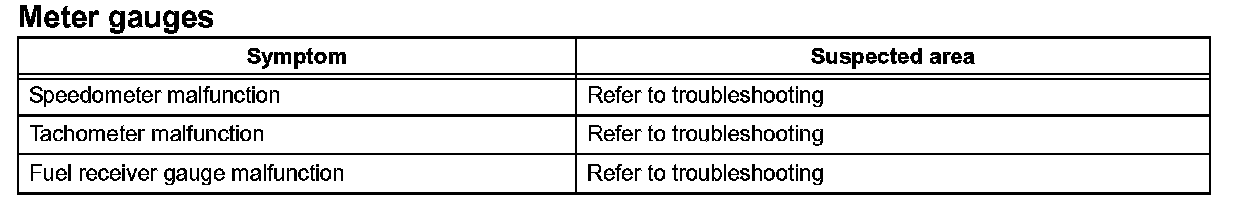

Problem Symptoms Table - Meter Gauges:

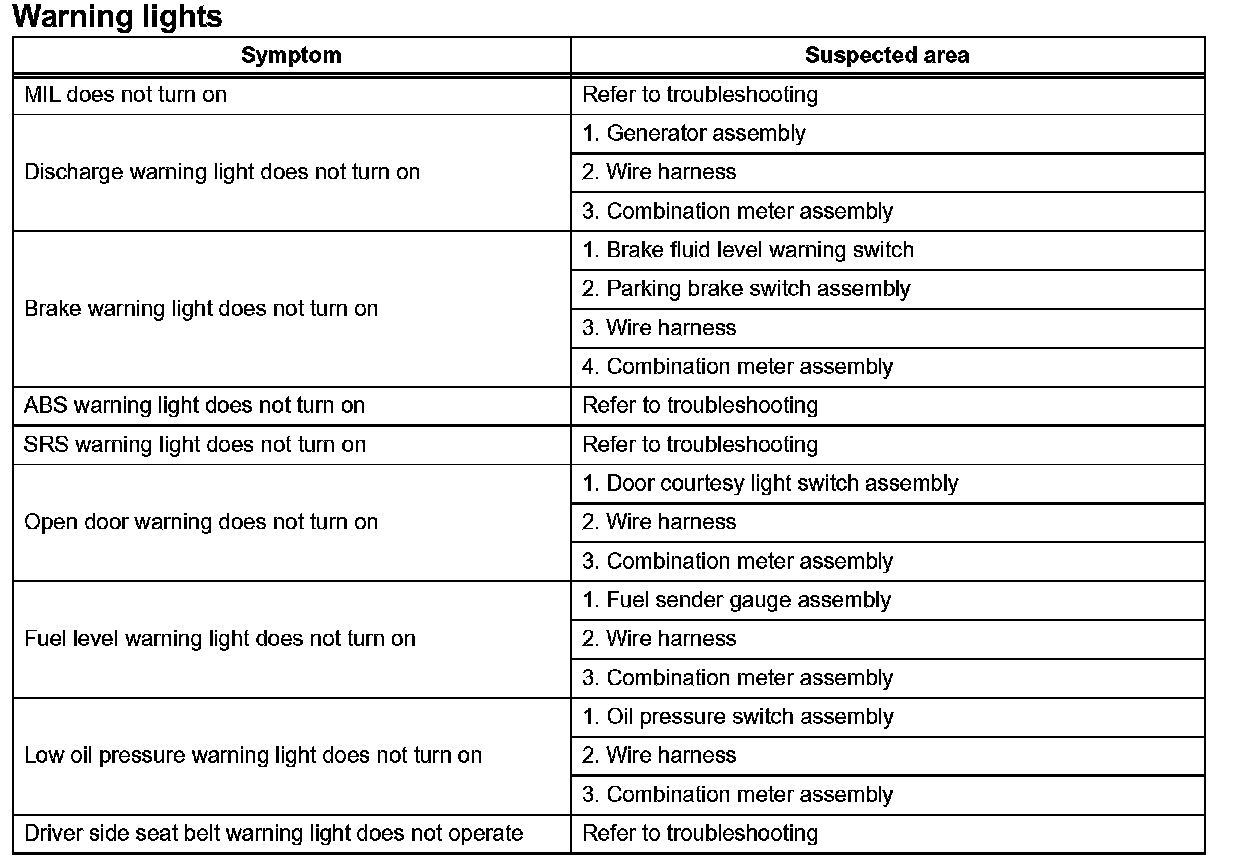

Problem Symptoms Table - Warning Lights:

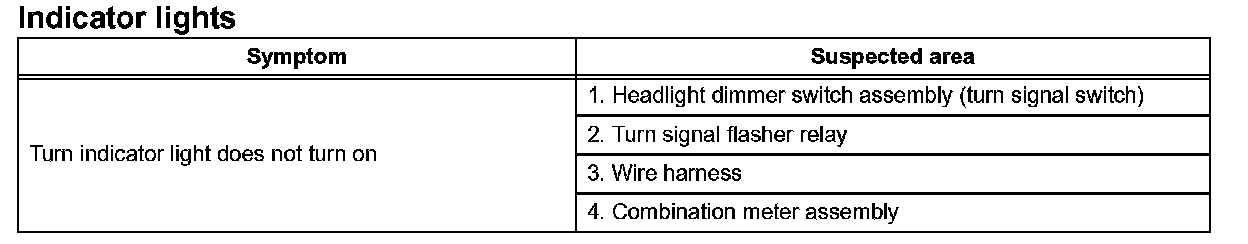

Problem Symptoms Table - Indicator Lights (Part 1):

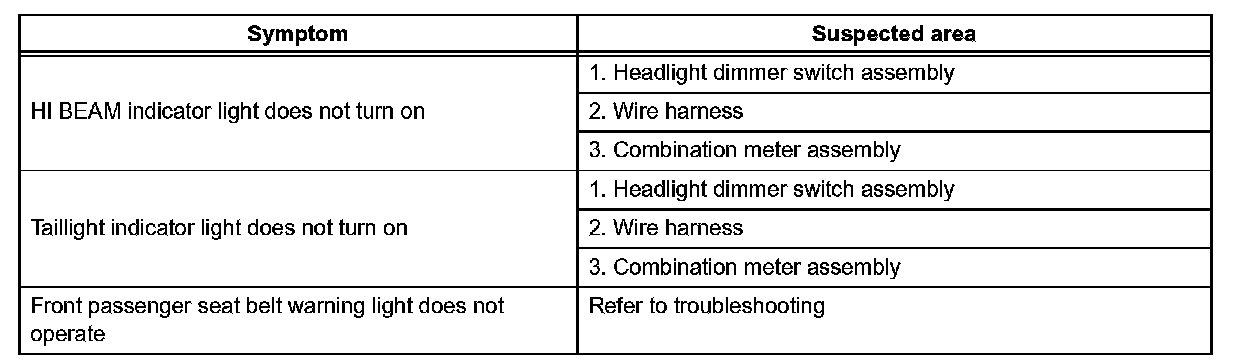

Problem Symptoms Table - Indicator Lights (Part 2):

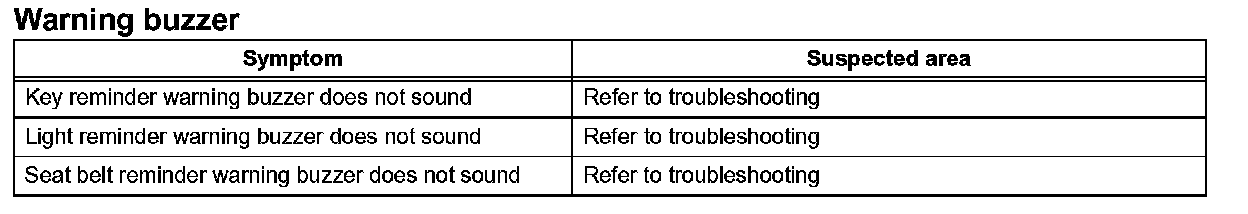

Problem Symptoms Table - Warning Buzzer:

HINT:
- Use the given table to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected area" column of the table. Check each symptom by checking the suspected area in the order they are listed. Replace parts as necessary.
- Inspect the related fuses and relays before confirming the suspected area in the table.
