Operating Light Control Rheostat Does Not Change Light Brightness

Operating Light Control Rheostat Does Not Change Light Brightness

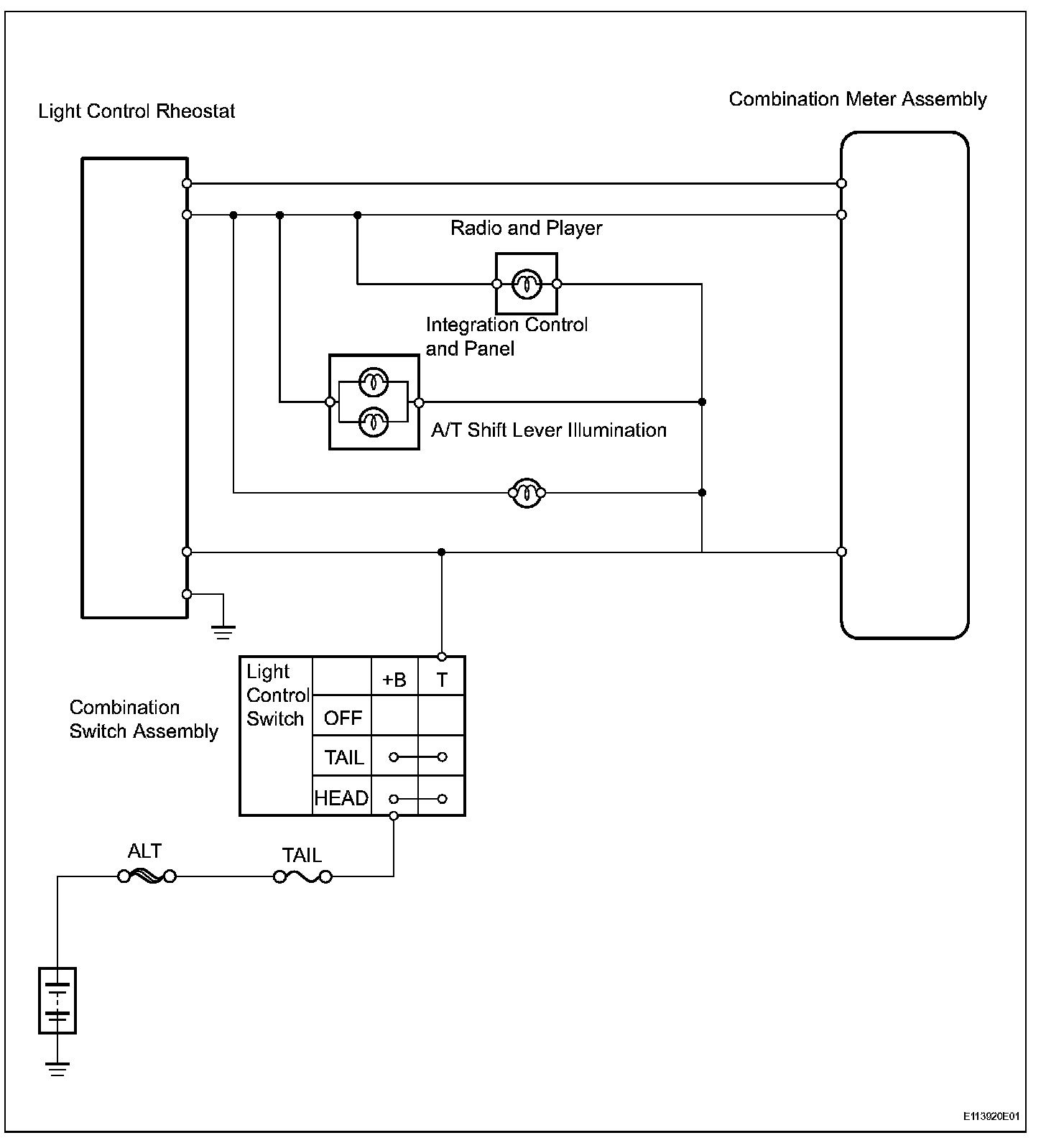

Wiring Diagram:






Step 1-2:

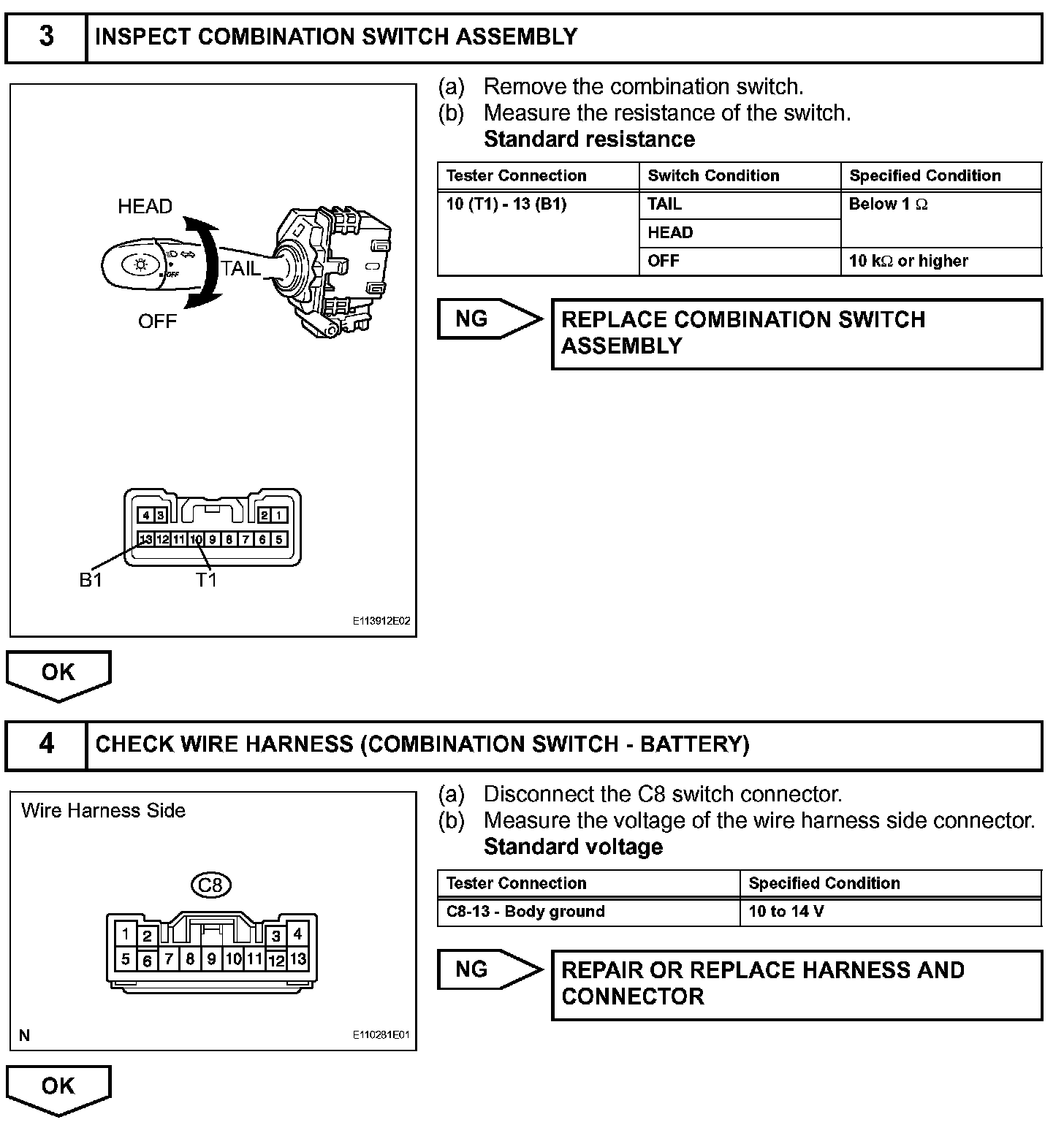

Step 3-4:

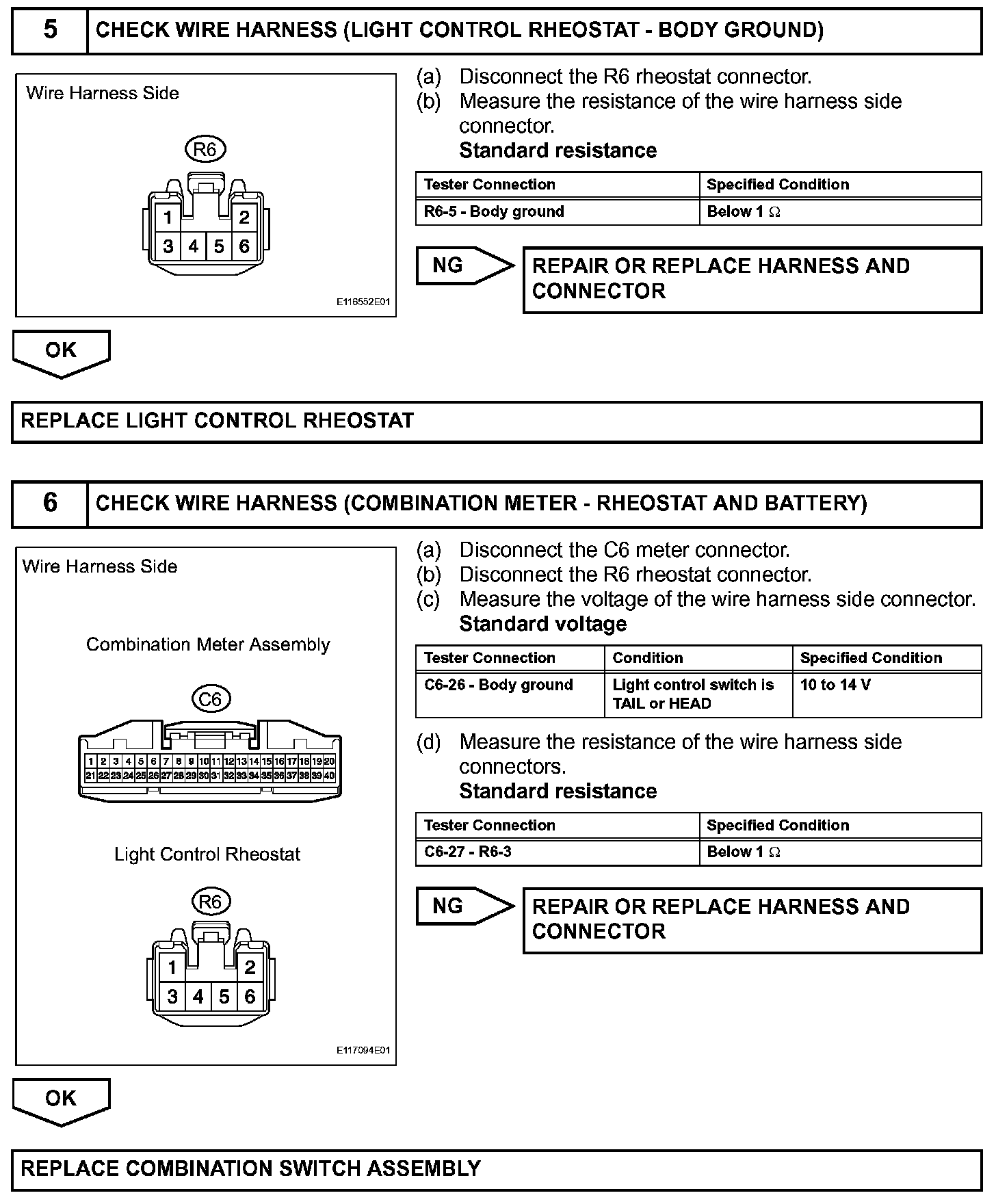

Step 5-6:




Step 7:

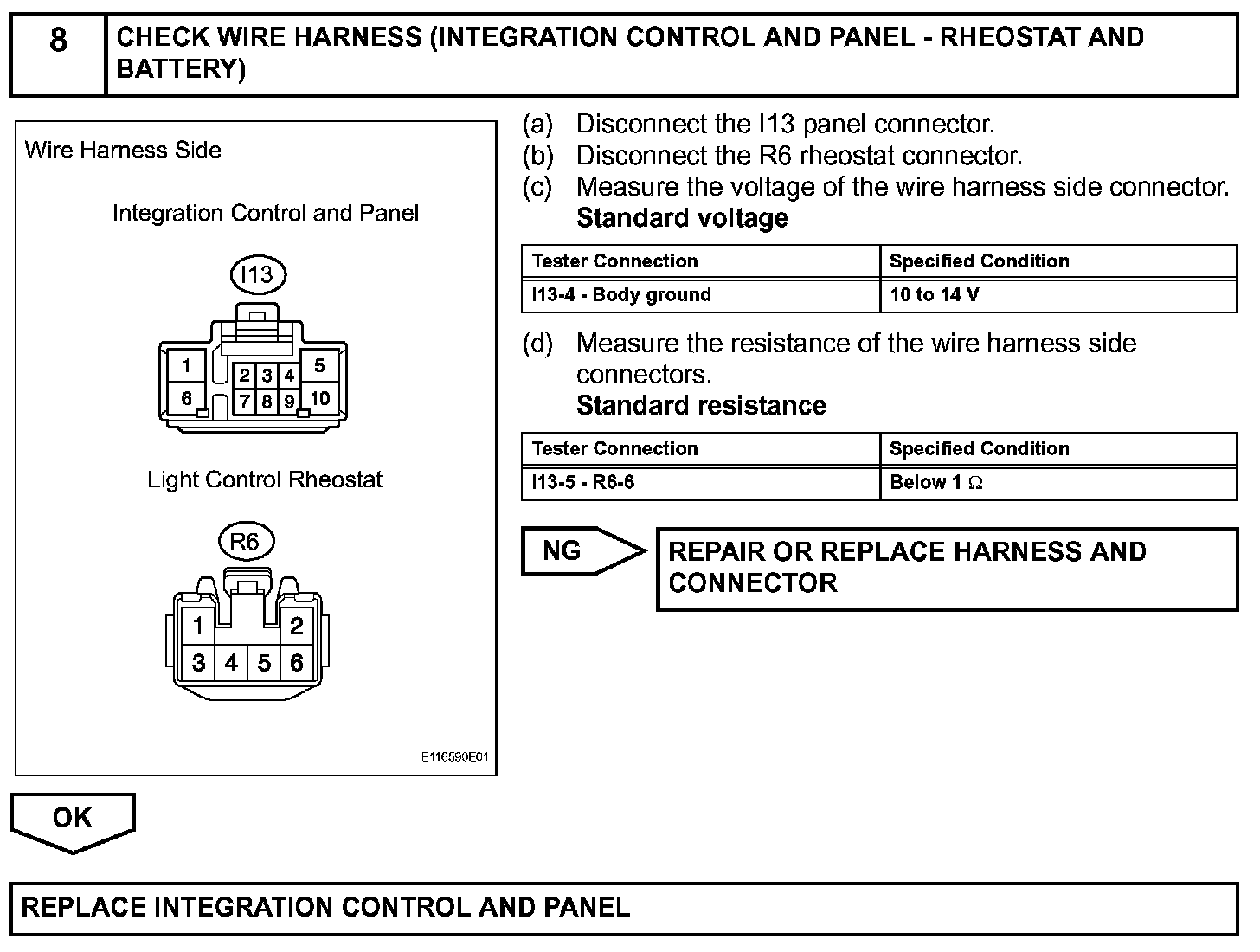

Step 8:

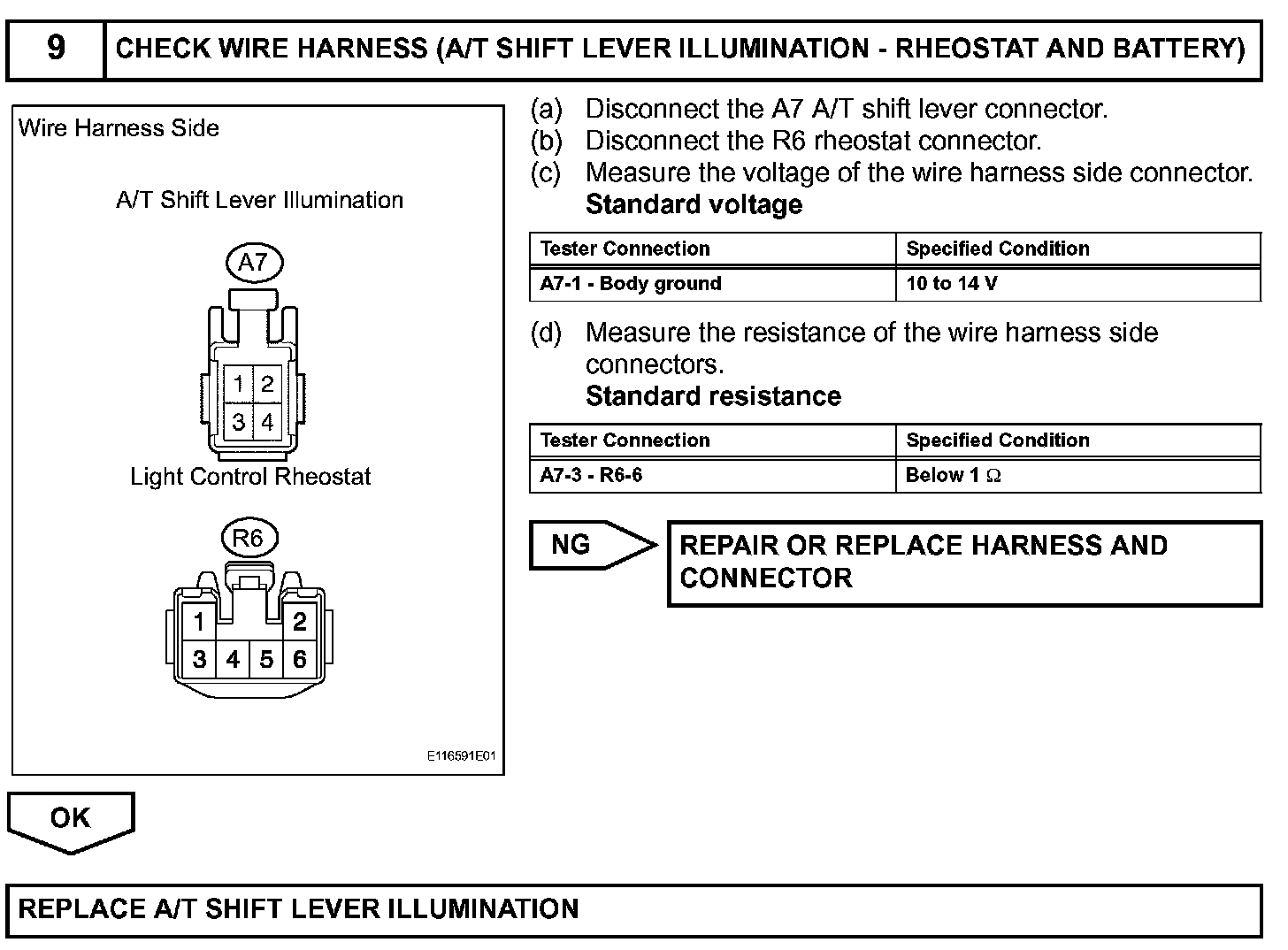

Step 9:




INSPECTION PROCEDURE
