Entire Combination Meter Does Not Operate
Entire Combination Meter Does Not Operate
Entire Combination Meter Does Not Operate

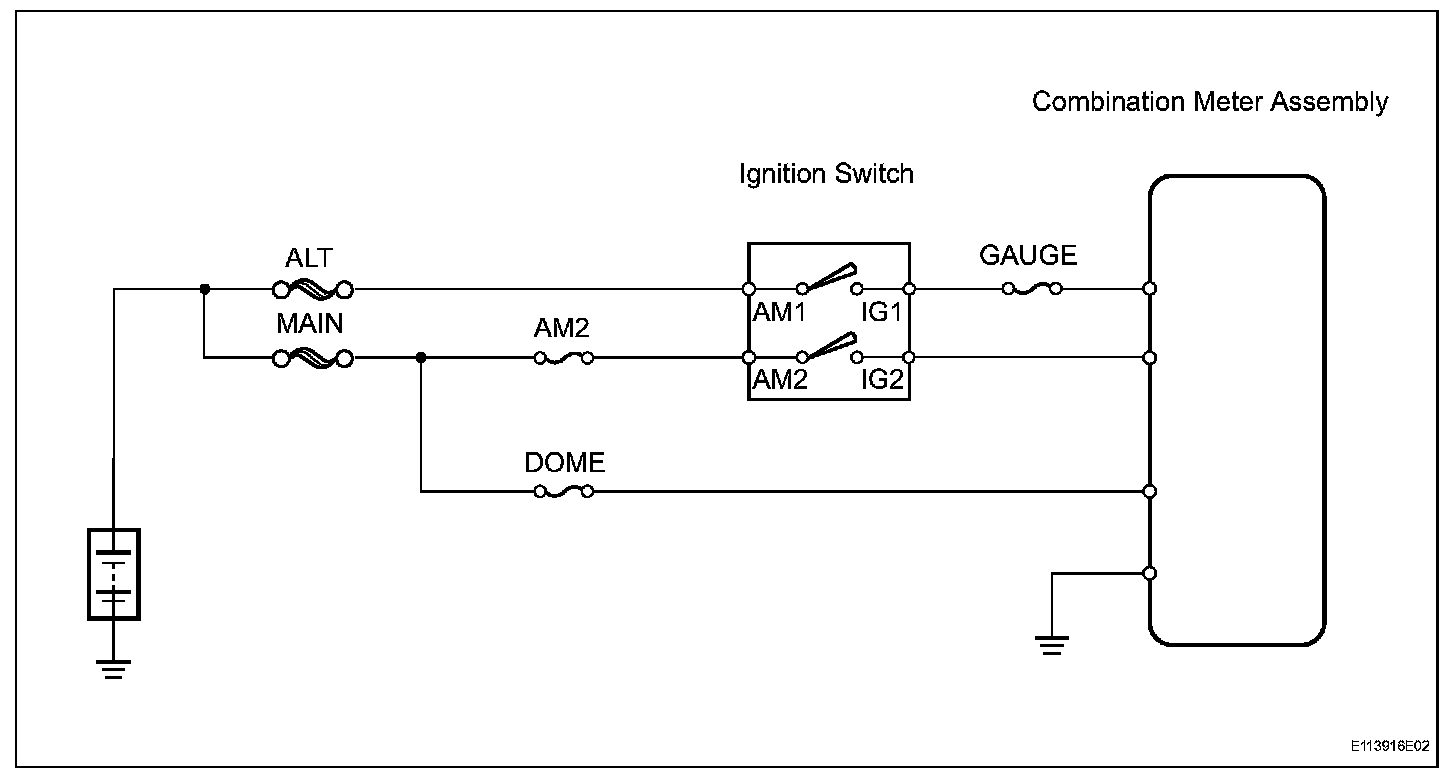

Wiring Diagram:

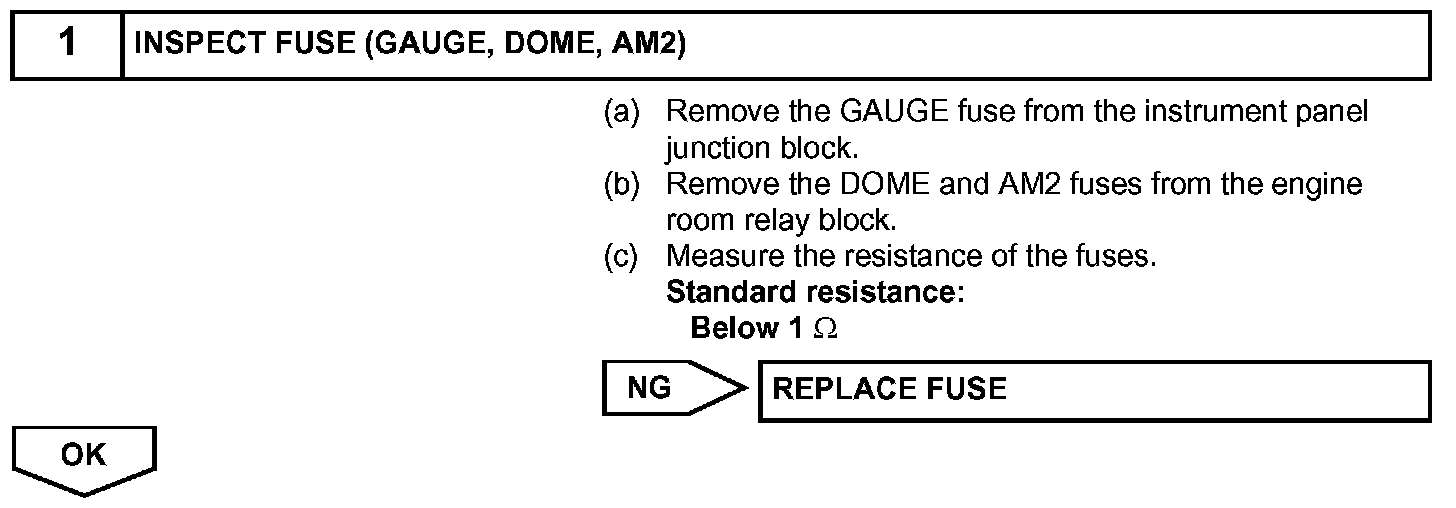

Step 1:

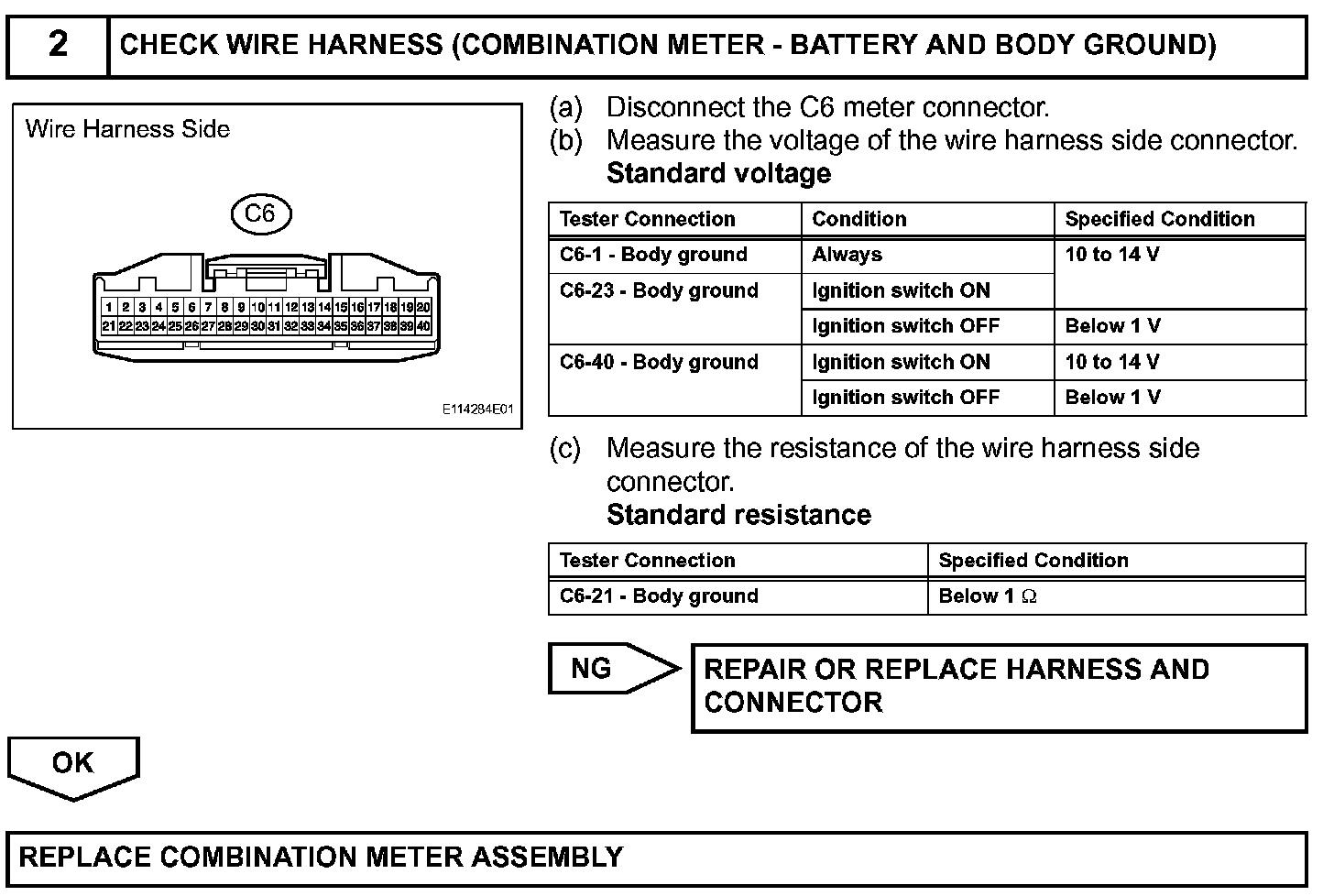

Step 2:
INSPECTION PROCEDURE
