Removal and Installation

COMBINATION METER

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.




2. REMOVE INSTRUMENT CLUSTER FINISH PANEL
a. Remove the clip.

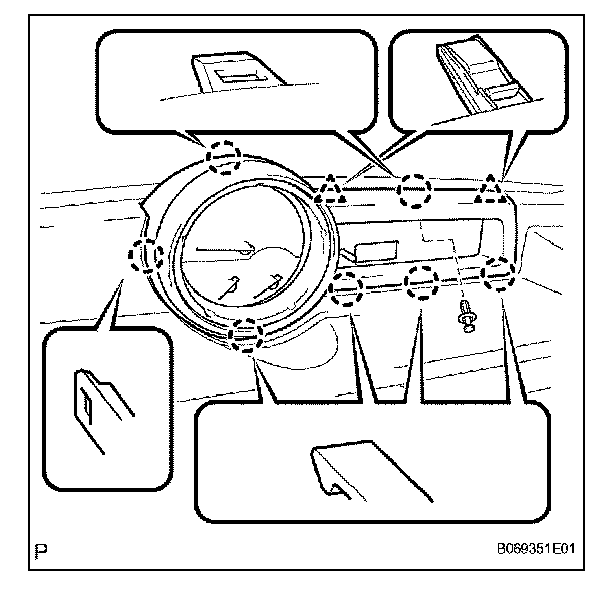

b. Using a screwdriver, detach the 7 claws and 2 clips, and remove the instrument cluster finish panel.

HINT: Tape the screwdriver tip before use.




3. REMOVE COMBINATION METER ASSEMBLY

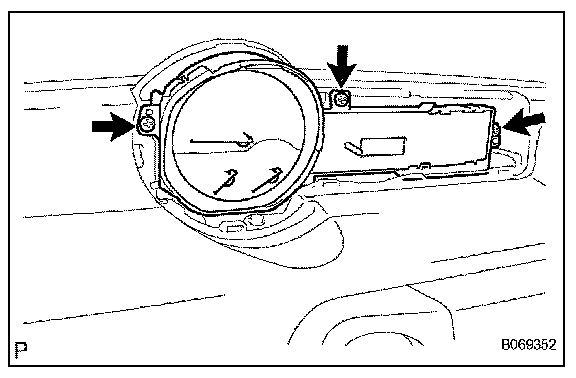

a. Remove the 3 screws.
b. Disconnect the connector, and remove the combination meter.

INSTALLATION




1. INSTALL COMBINATION METER ASSEMBLY
a. Connect the connector and install the combination meter.

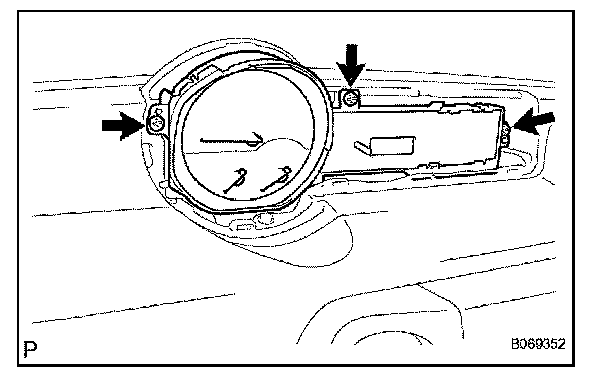

b. Install the 3 screws.




2. INSTALL INSTRUMENT CLUSTER FINISH PANEL

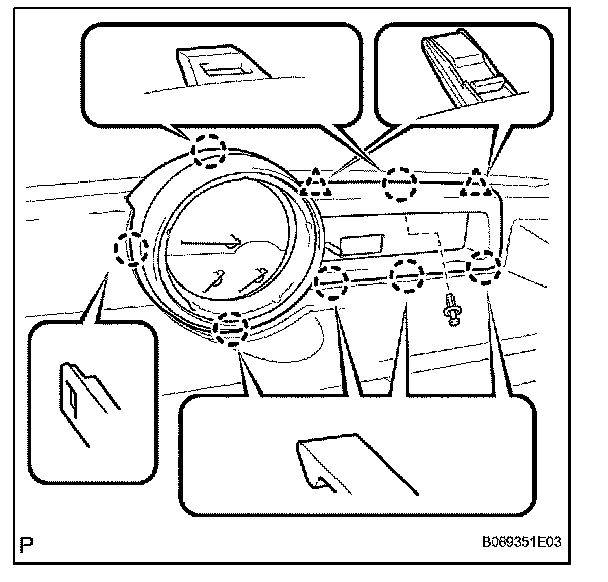

a. Attach the 7 claws and 2 clips to install the instrument cluster finish panel.
b. Install the clip.

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. CHECK SRS WARNING LIGHT
a. Check the SRS warning light.
