Instrument Cluster / Carrier: Description and Operation

METER/GAUGE SYSTEM

SYSTEM DESCRIPTION

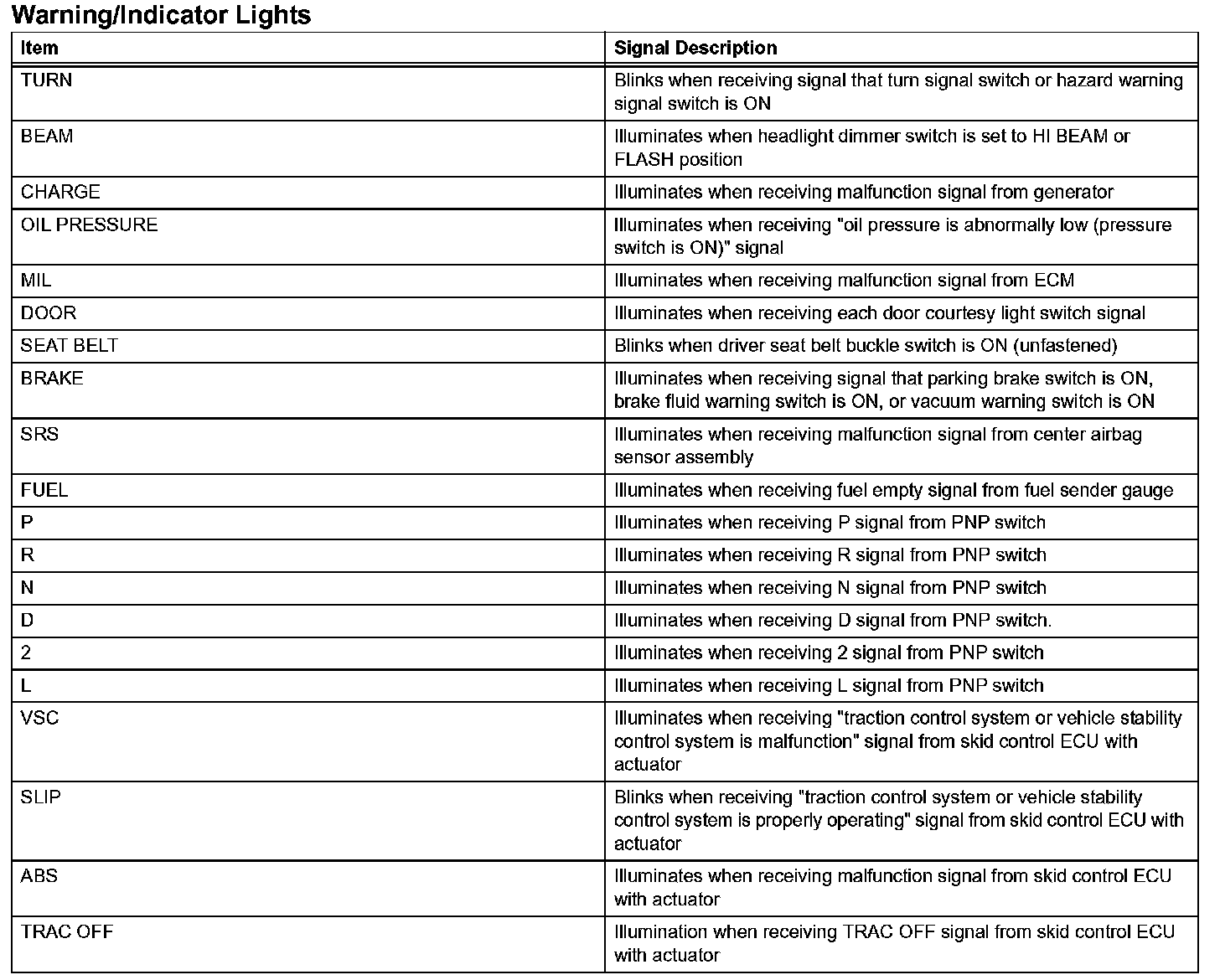

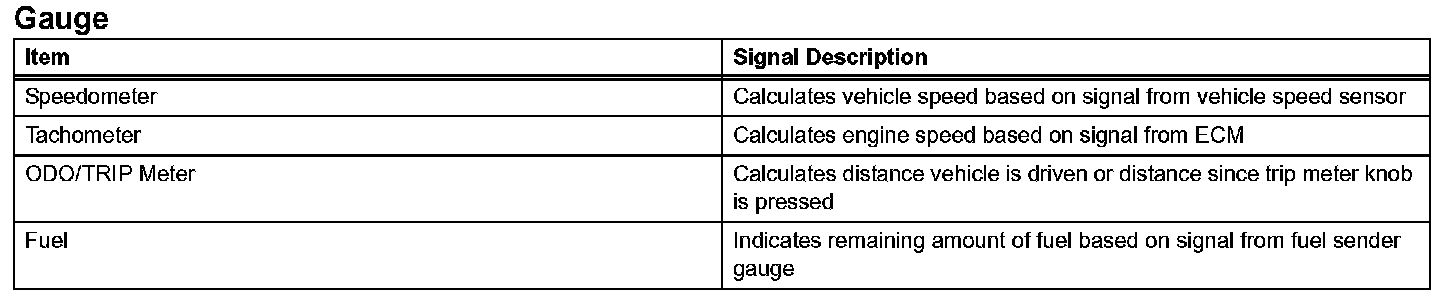

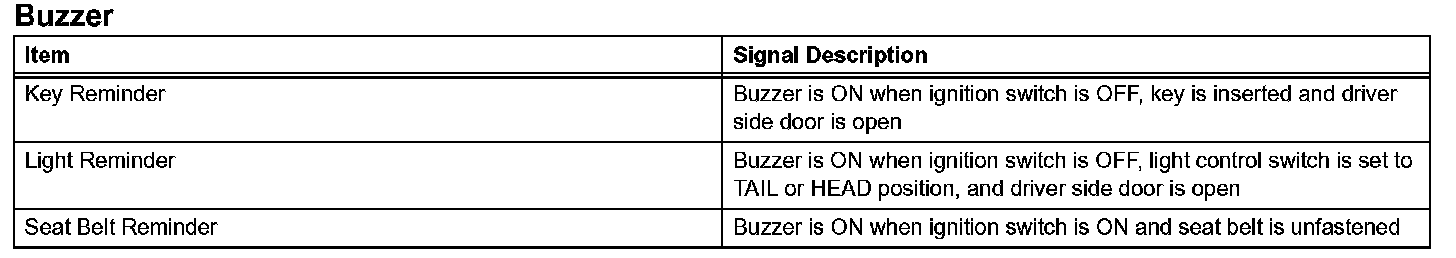

1. METER GAUGE AND WARNING/INDICATOR LIGHT
