Pinout Values and Diagnostic Parameters

TERMINALS OF ECU

Terminals Of Control Module/Pinouts - Check Air Conditioning Amplifier Assembly:

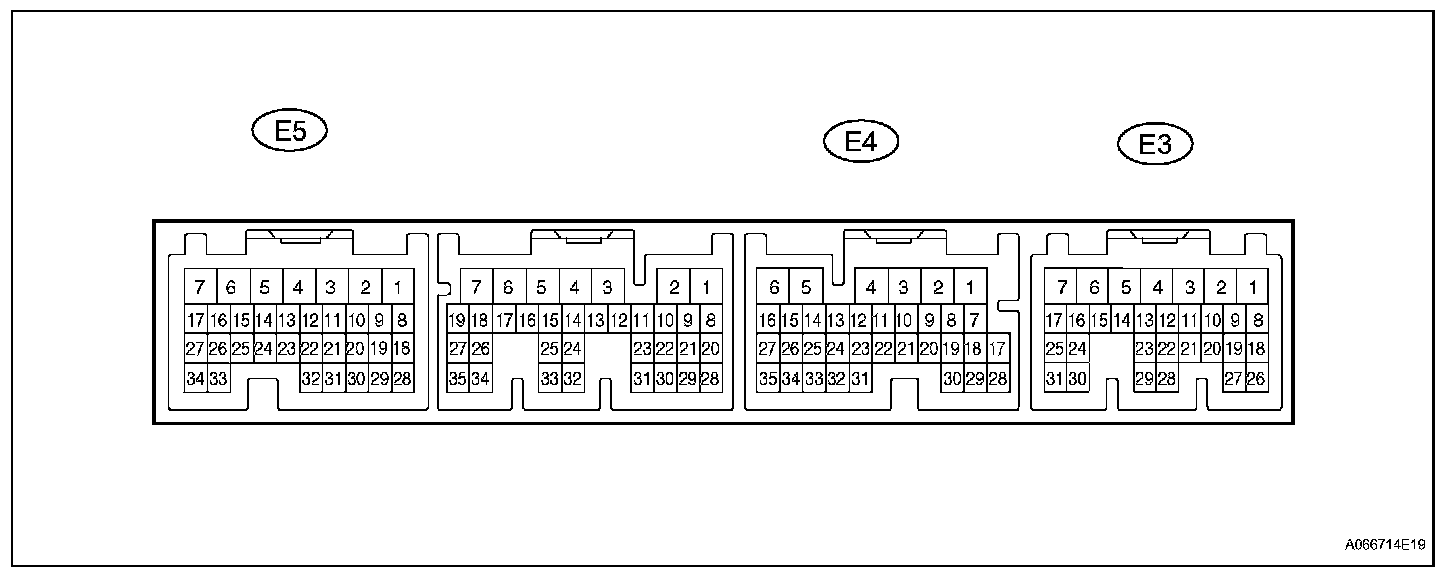

1. CHECK AIR CONDITIONING AMPLIFIER ASSEMBLY

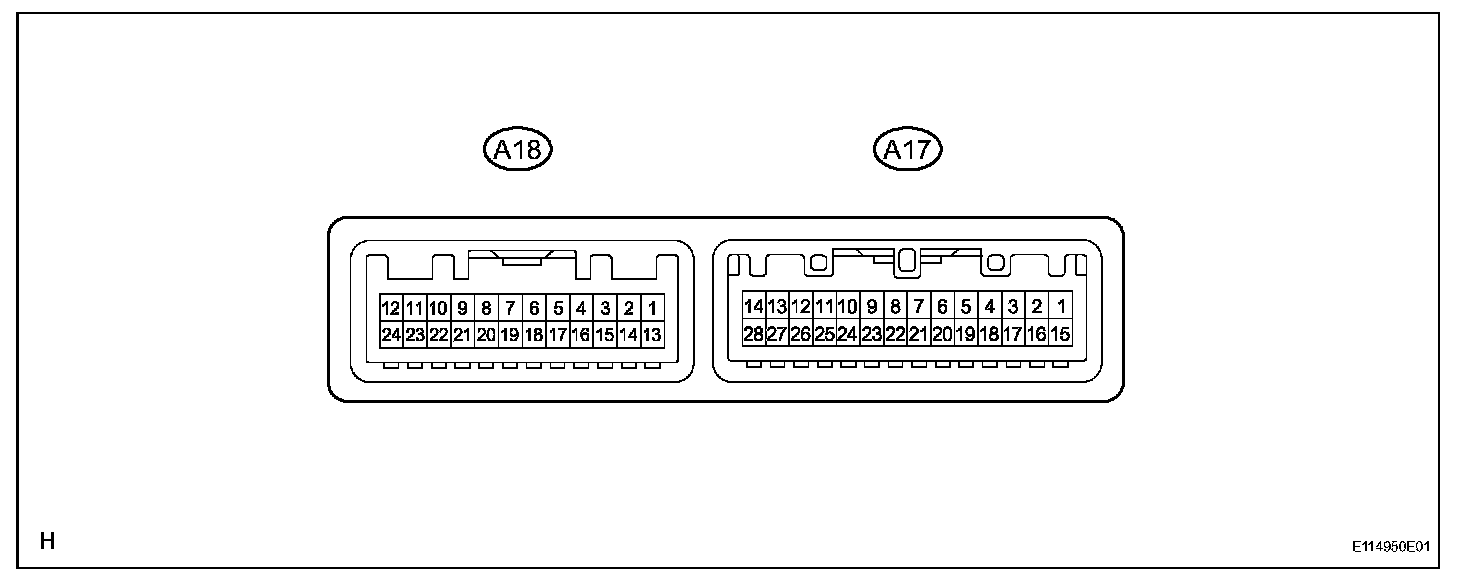

Part 1:




Part 2:

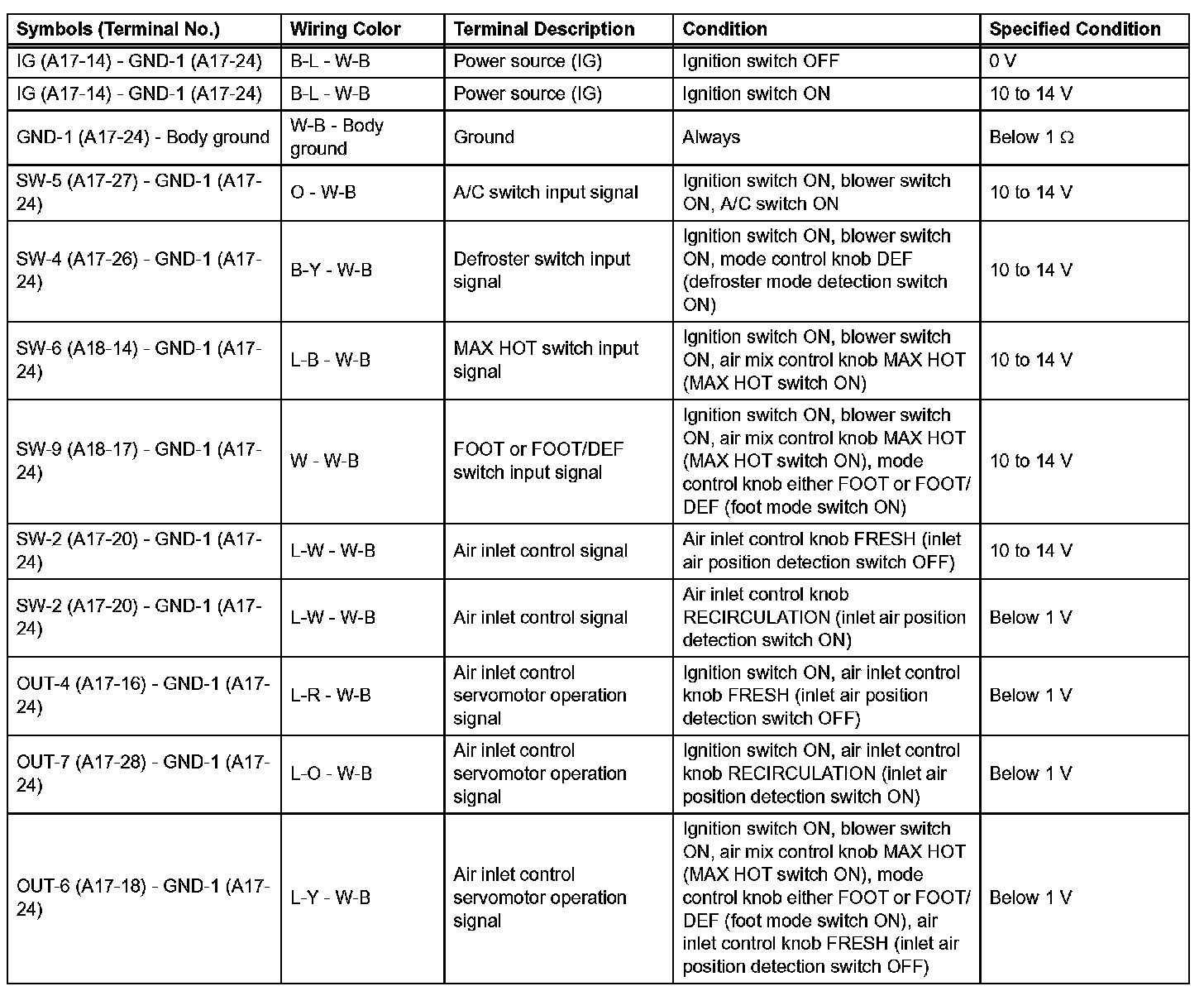

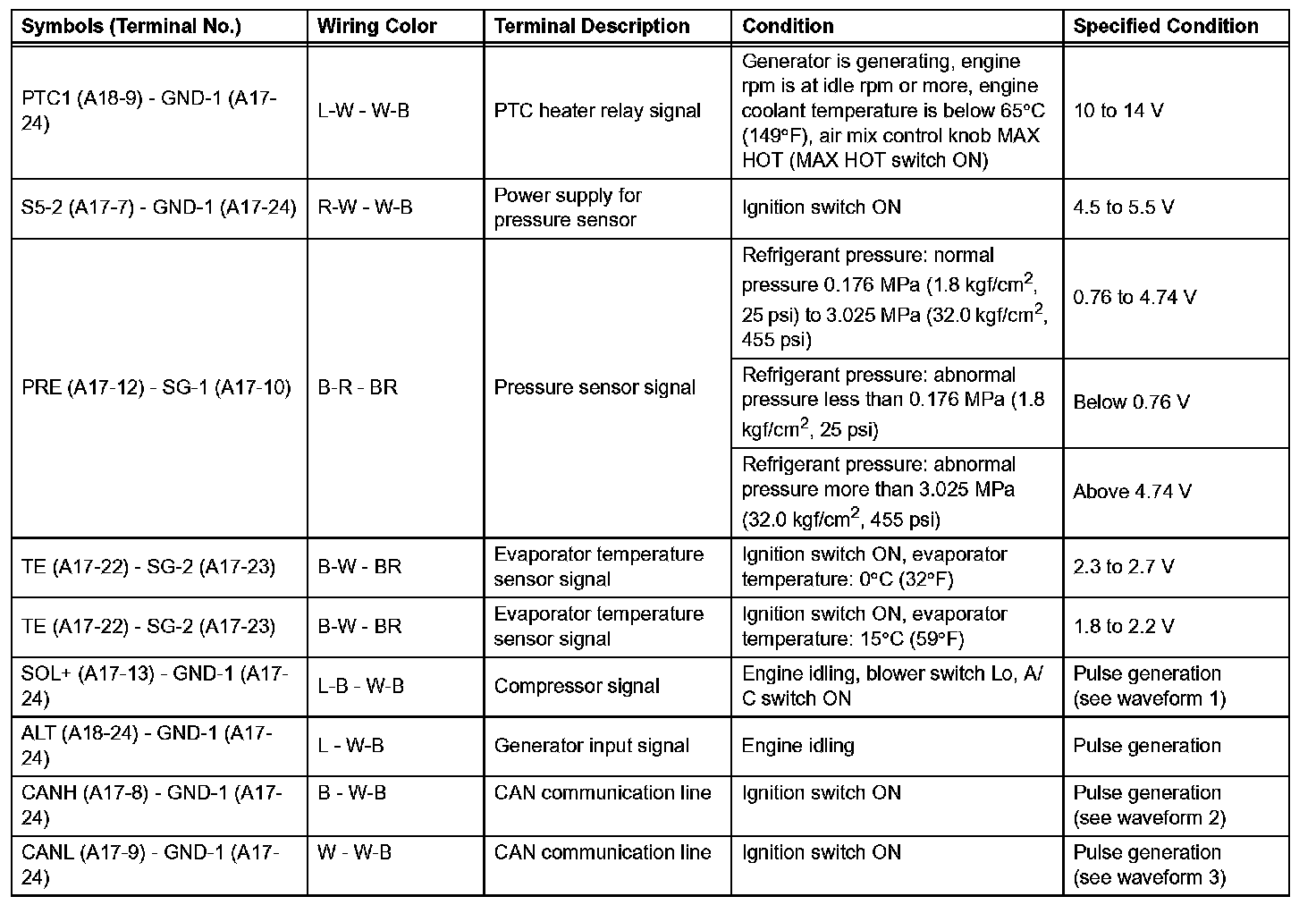

a. Measure the voltage and resistance of the wire harness side connector.
If the result is not as specified, the A/C amplifier may have a malfunction.

Oscilloscope Waveform:




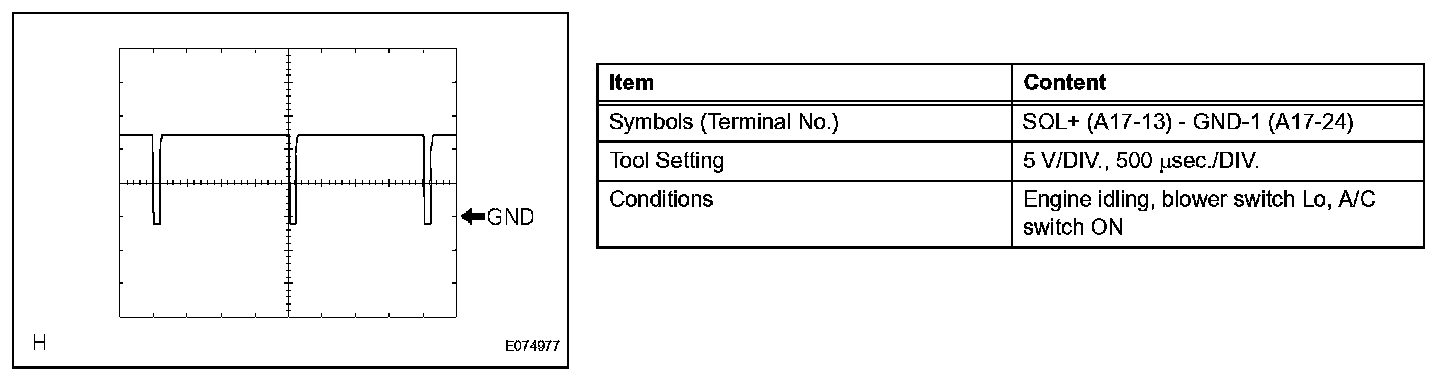

1. Waveform 1 (Reference)

Oscilloscope Waveform:

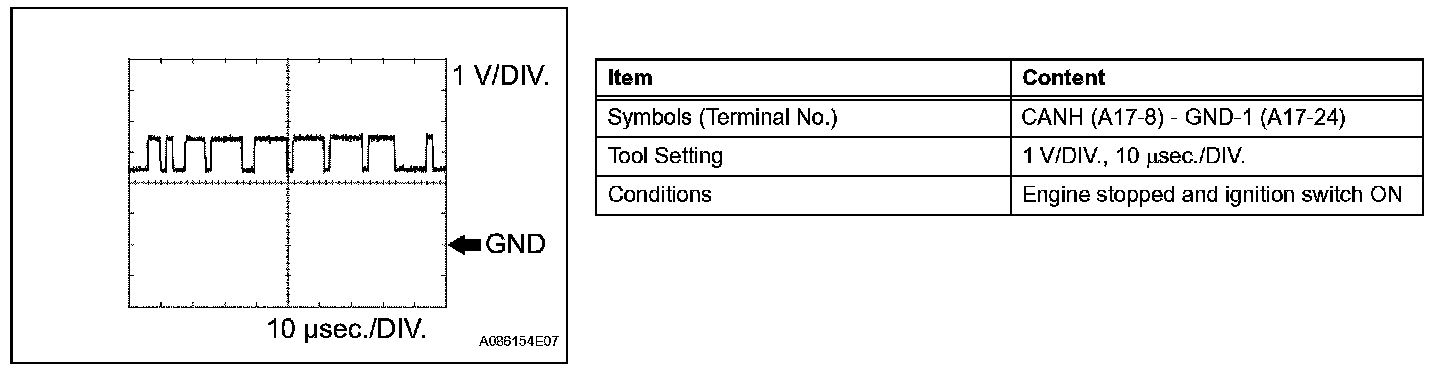

2. Waveform 2 (Reference)

HINT: The waveform varies depending on the CAN communication signal.

Oscilloscope Waveform:

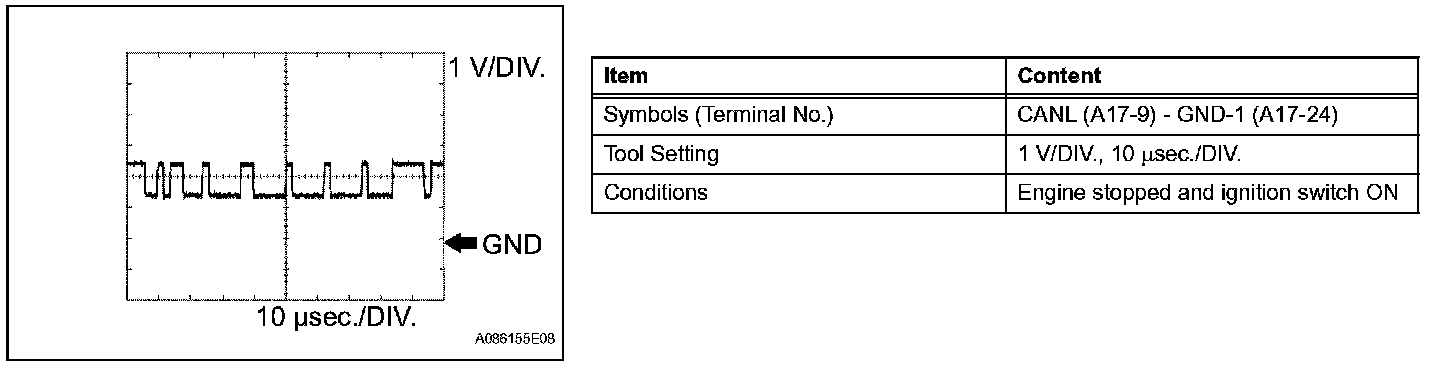

3. Waveform 3 (Reference)

HINT: The waveform varies depending on the CAN communication signal.

Terminals Of Control Module/Pinouts - Check ECM:




2. CHECK ECM




a. Measure the voltage of the connectors.
If the result is not as specified, the ECM may have a malfunction.

Oscilloscope Waveform:

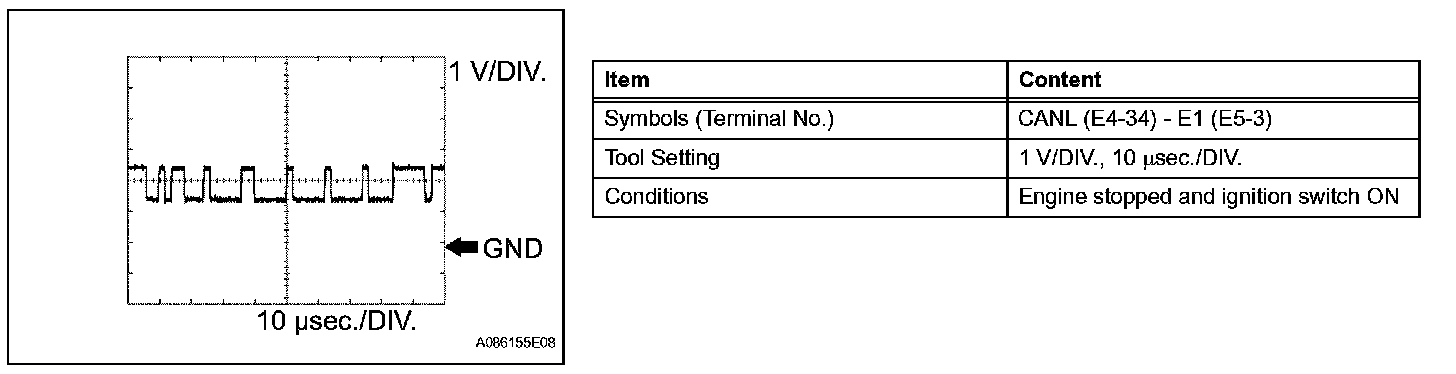

1. Waveform 1 (Reference)

HINT: The waveform varies depending on the CAN communication signal.

Oscilloscope Waveform:

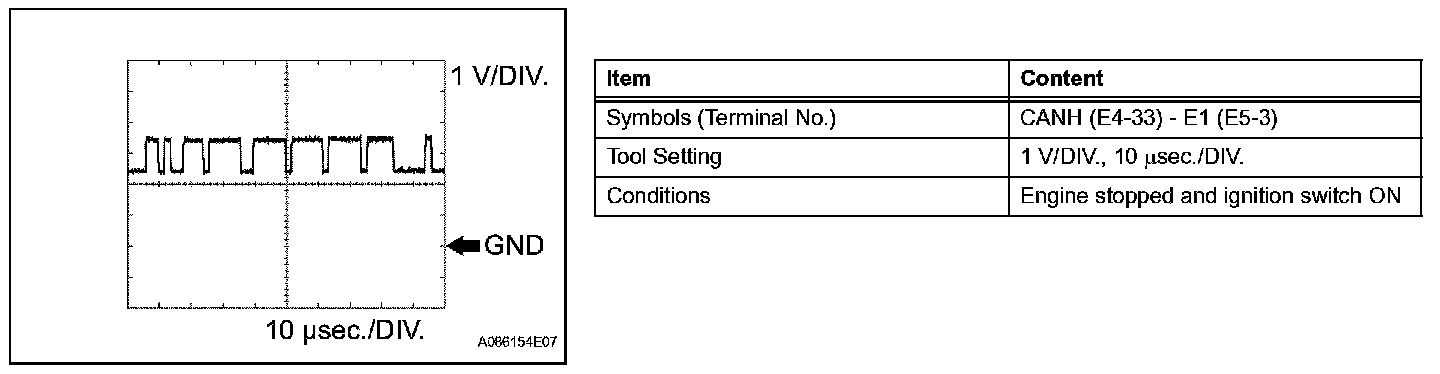

2. Waveform 2 (Reference)

HINT: The waveform varies depending on the CAN communication signal.
