Component Tests and General Diagnostics

PTC Heater Circuit

DESCRIPTION
The PTC relay turns on when it receives a signal from the A/C amplifier. As a result, power is supplied to the PTC heater installed on the heater radiator unit sub-assembly.

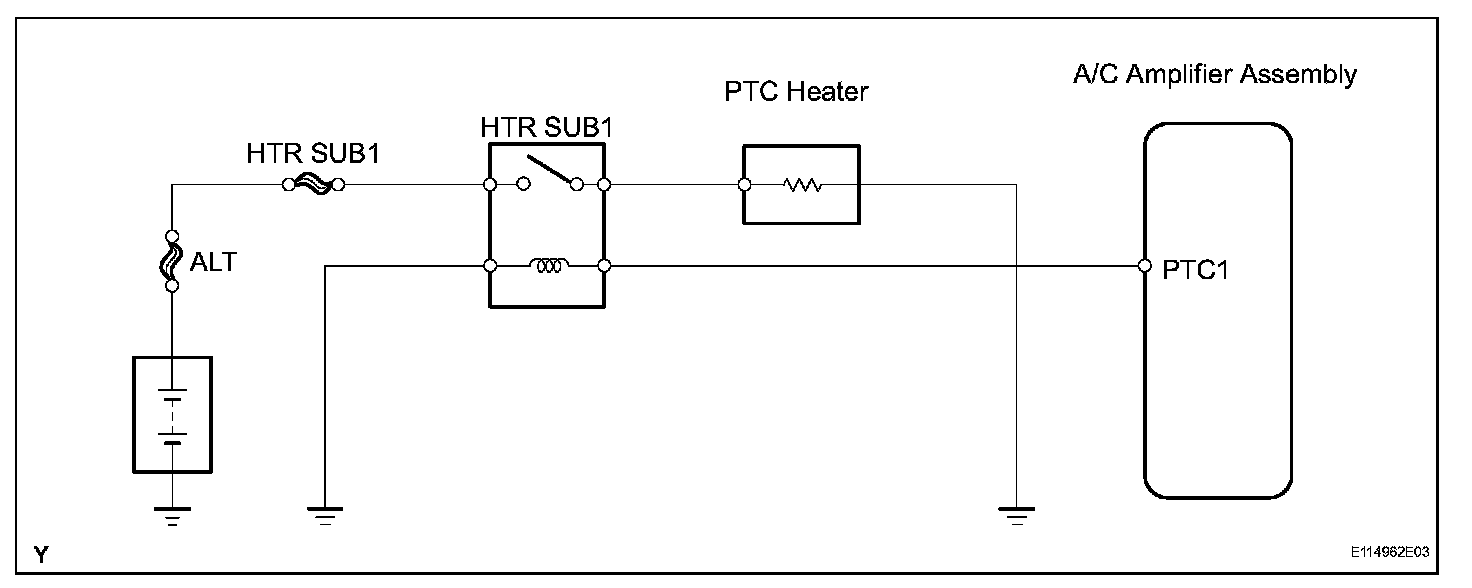

Wiring Diagram:

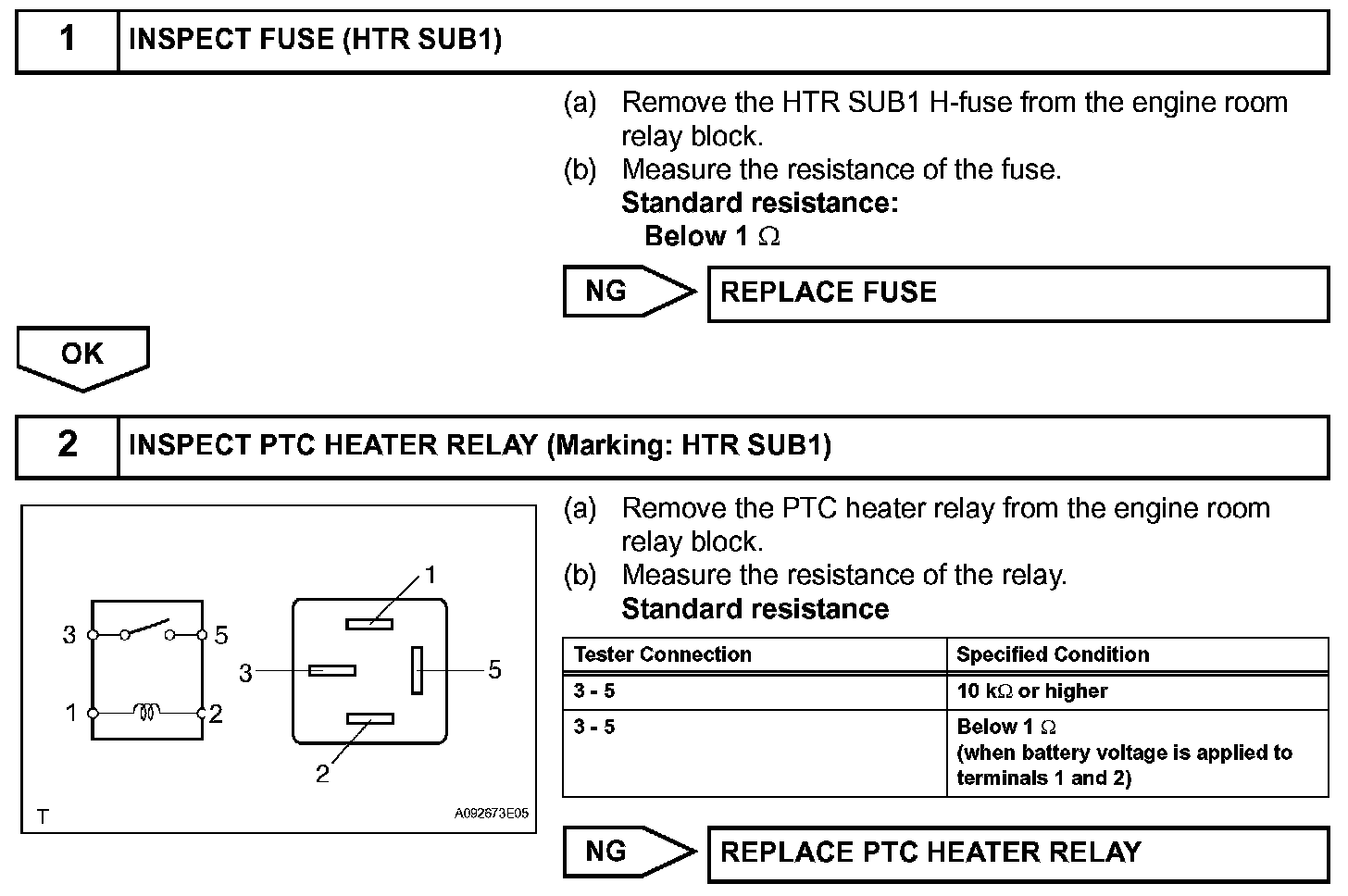

Step 1-2:

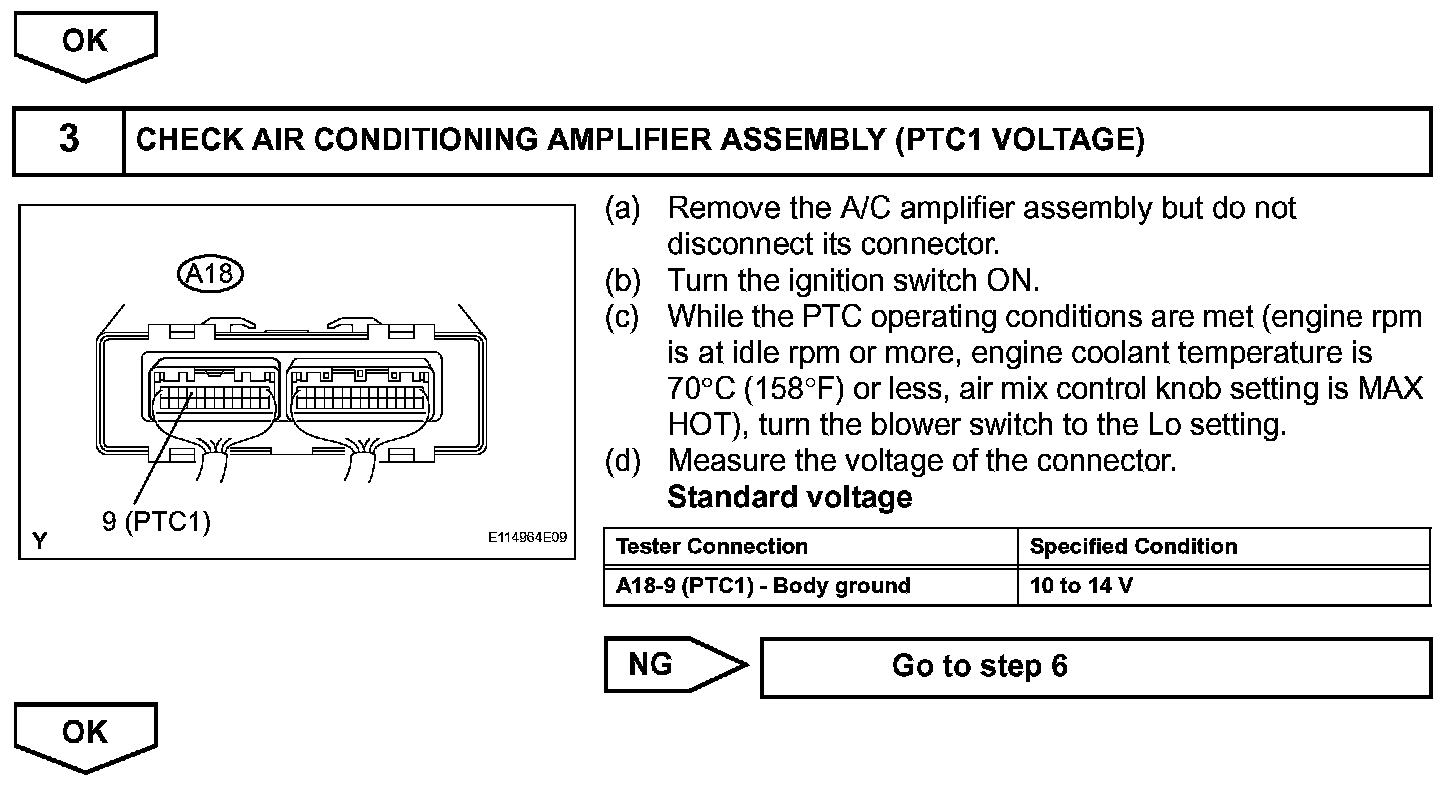

Step 2(continued)-3:

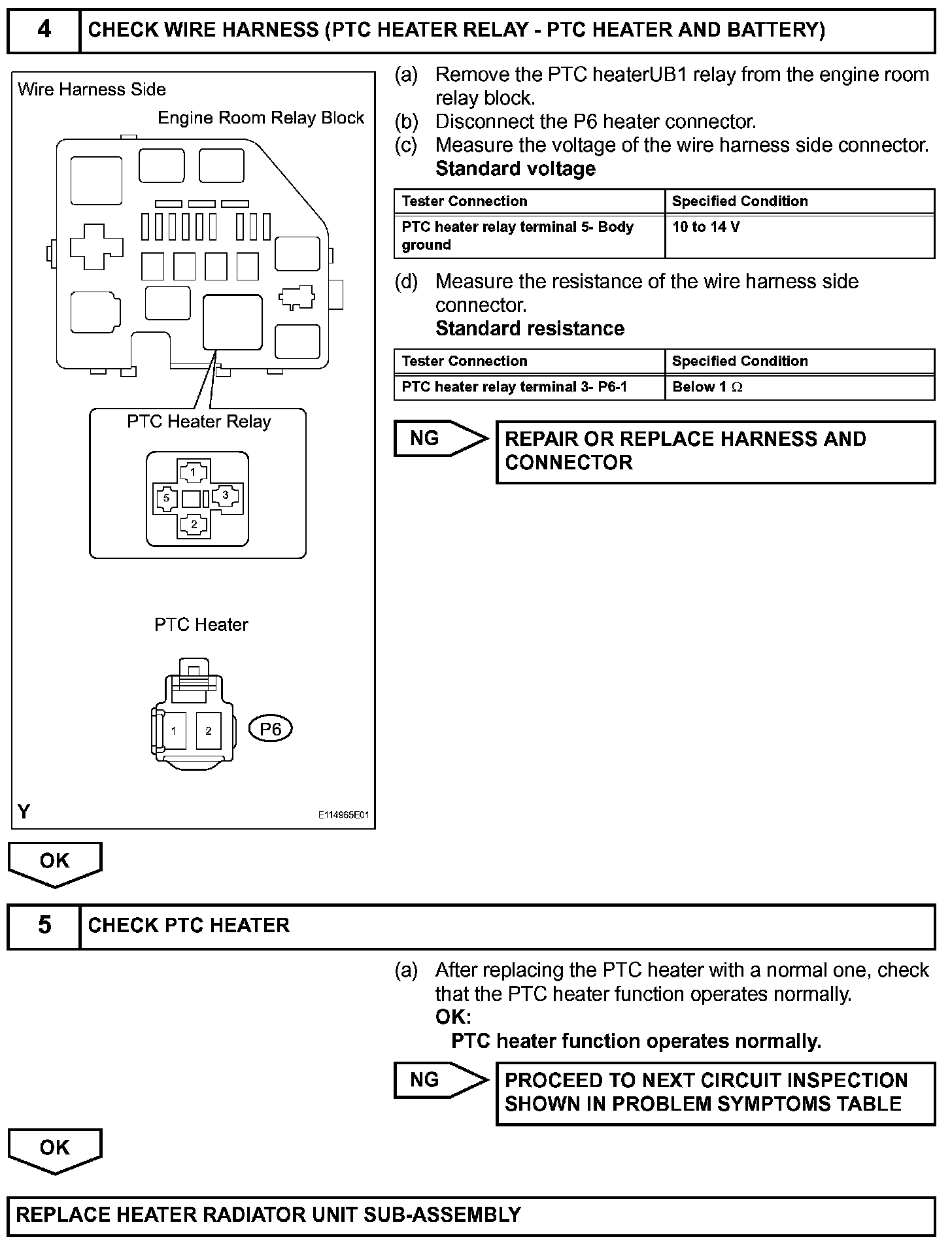

Step 4-5:

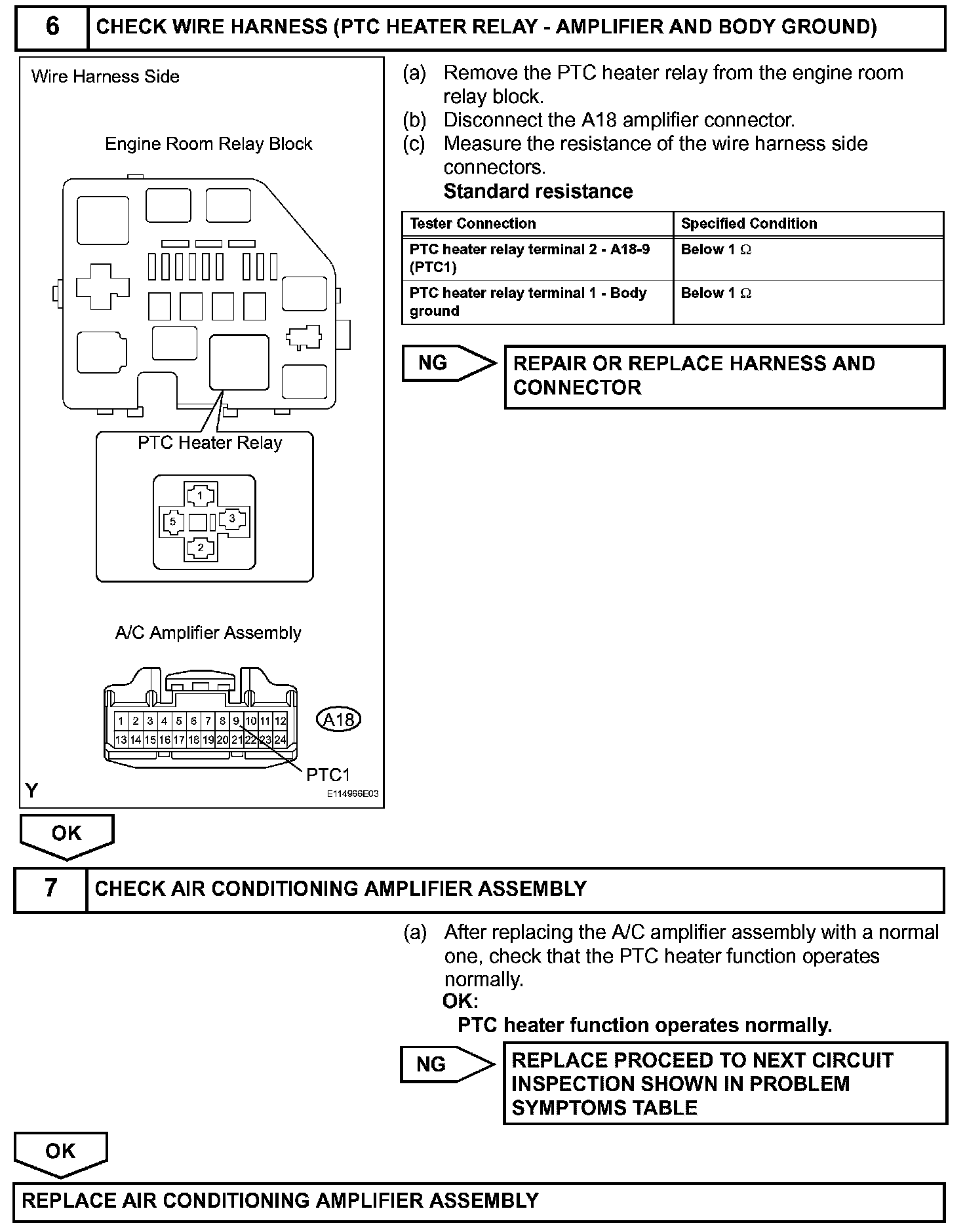

Step 6-7:

INSPECTION PROCEDURE
