Thermistor Assembly

REMOVAL

1. REMOVE HEATER RADIATOR ASSEMBLY
a. Remove the heater radiator.

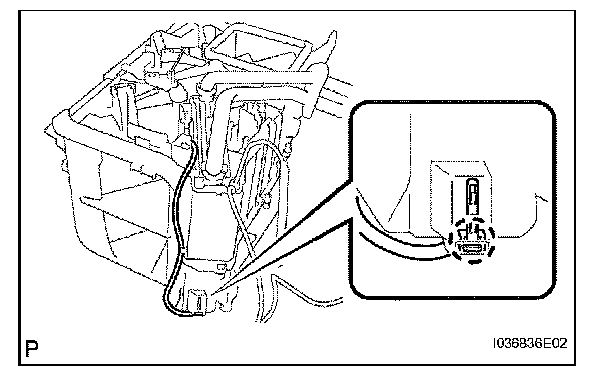

2. REMOVE THERMISTOR ASSEMBLY
a. Detach the claw and remove the clamp.
b. Remove the thermistor.

INSTALLATION

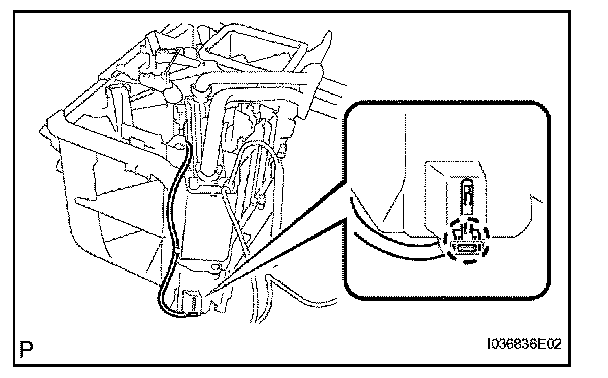

1. INSTALL THERMISTOR ASSEMBLY
a. Install the thermistor.
b. Install the clamp and attach the claw.

2. INSTALL HEATER RADIATOR ASSEMBLY
a. Install the heater radiator.
