Blower Motor Switch: Service and Repair

Heater Switch

REMOVAL

1. REMOVE HEATER CONTROL AND ACCESSORY ASSEMBLY
a. Remove the heater control and accessory.




2. REMOVE HEATER SWITCH ASSEMBLY

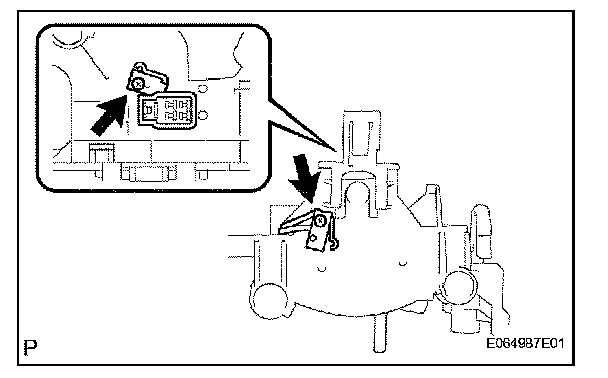

a. Remove the 2 screws and heater switch.

INSTALLATION




1. INSTALL HEATER SWITCH ASSEMBLY

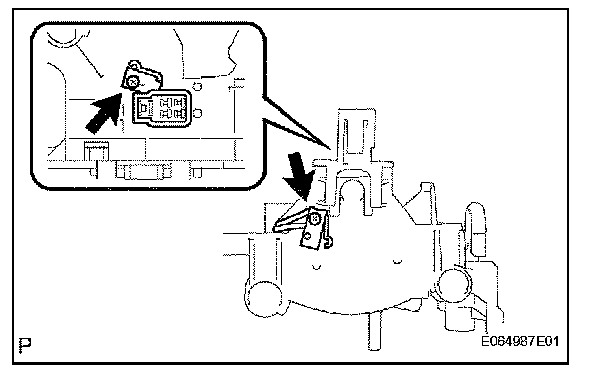

a. Install the heater switch with the 2 screws.

2. INSTALL HEATER CONTROL AND ACCESSORY ASSEMBLY
a. Install the heater control and accessory.
