Heater Core: Testing and Inspection
HEATER RADIATOR ASSEMBLYINSPECTION

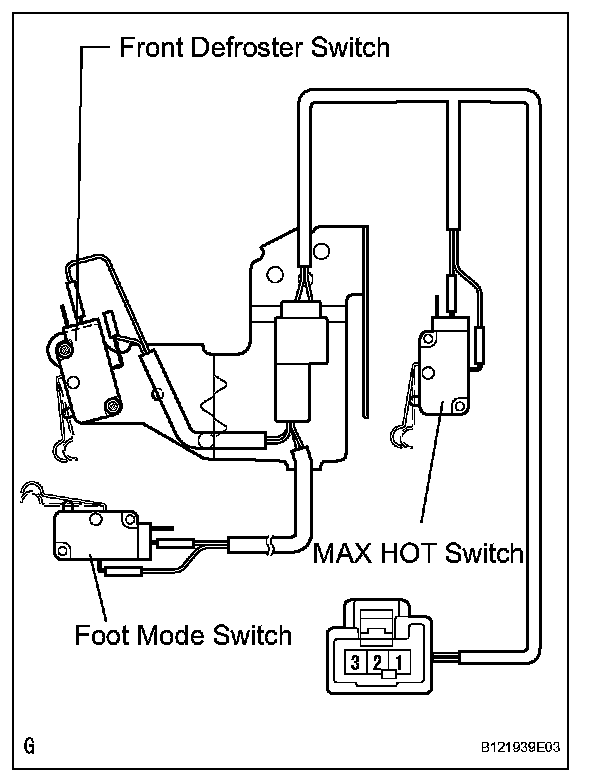

1. INSPECT NO. 2 COOLER WIRING

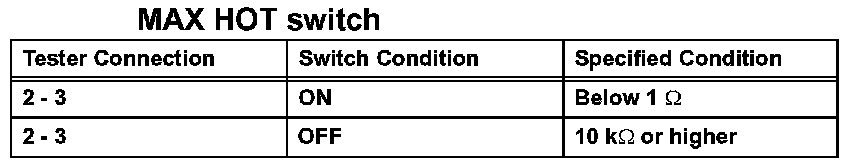

a. Measure the resistance of the switch.
If the result is not as specified, replace the No. 2 cooler wiring.
INSPECTION
1. INSPECT NO. 2 COOLER WIRING

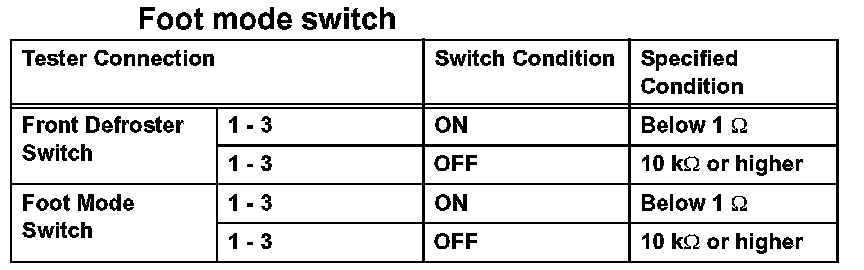

a. Measure the resistance of the switch.
If the result is not as specified, replace the No. 2 cooler wiring.
