Removal and Installation

CENTER CLUSTER MODULE SWITCH

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

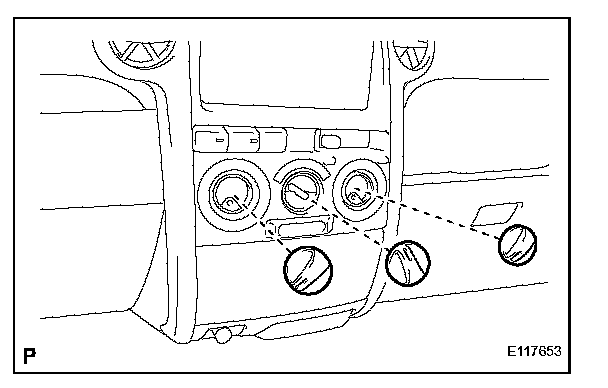

2. REMOVE HEATER CONTROL KNOB
a. Remove the 3 heater control knobs.

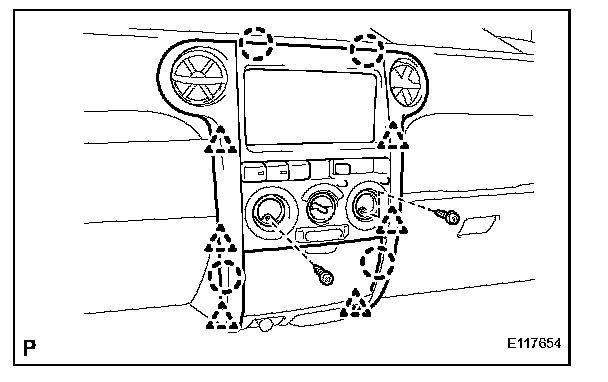

3. REMOVE INSTRUMENT CLUSTER FINISH PANEL CENTER
a. Remove the 2 screws.
b. Detach the 6 clips and 4 claws, and then remove the instrument cluster finish panel.
c. Disconnect the connectors.

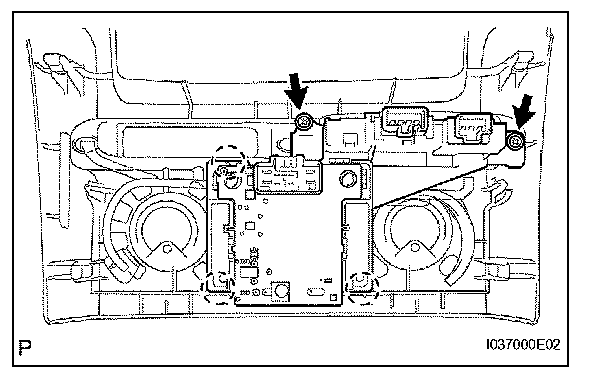

4. REMOVE CENTER CLUSTER MODULE SWITCH
a. Remove the 2 screws.
b. Detach the 3 claws and remove the center cluster module switch.

INSTALLATION




1. INSTALL CENTER CLUSTER MODULE SWITCH
a. Attach the 3 claws to install the center cluster module switch.
b. Install the 2 screws.

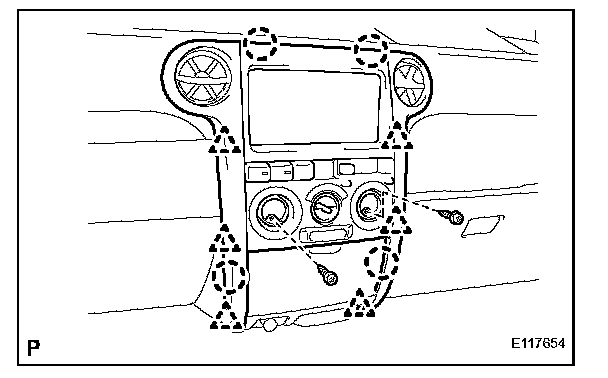

2. INSTALL INSTRUMENT CLUSTER FINISH PANEL CENTER
a. Connect the connectors.
b. Attach the 6 clips and 4 claws to install the instrument cluster finish panel.
c. Install the 2 screws.

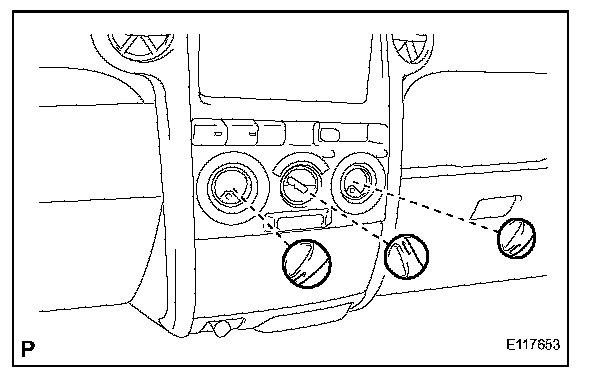

3. INSTALL HEATER CONTROL KNOB
a. Install the 3 heater control knobs.

4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
