Disassembly and Reassembly

CONDENSER

DISASSEMBLY




1. REMOVE NO. 1 CONDENSER BRACKET COLLAR

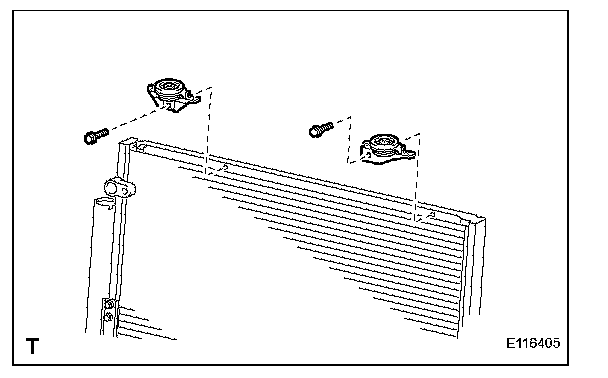

a. Remove the 2 bolts and 2 condenser bracket collars.

2. REMOVE COOLER DRYER

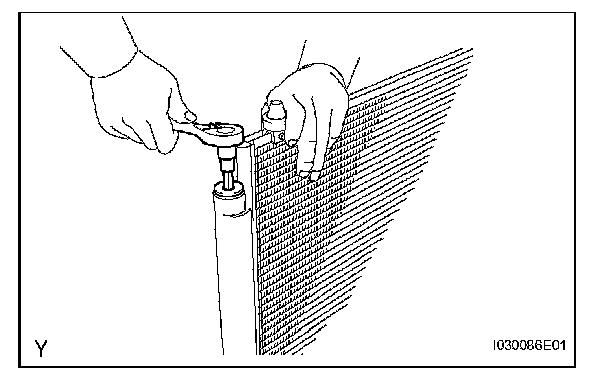

a. Using a 14 mm socket hexagon wrench, remove the cap from the modulator.

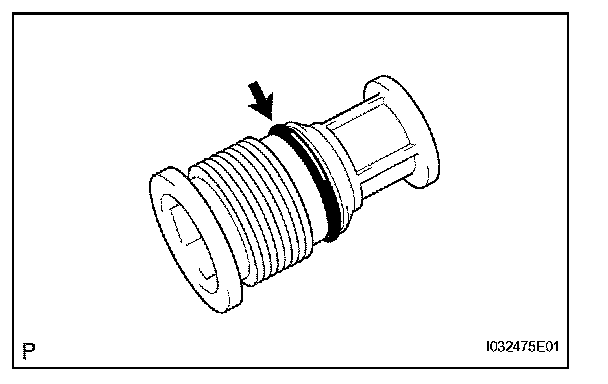

b. Remove the O-ring from the cap.

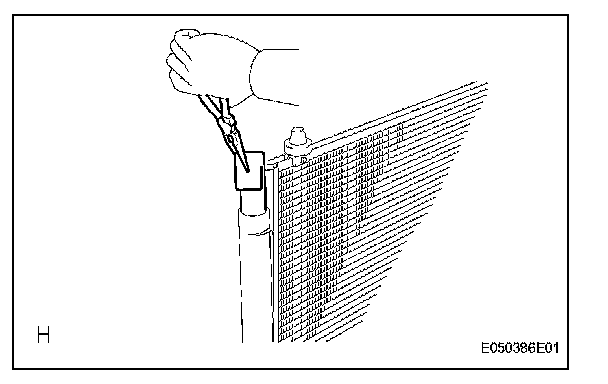

c. Using pliers, remove the cooler dryer.

REASSEMBLY

1. INSTALL COOLER DRYER

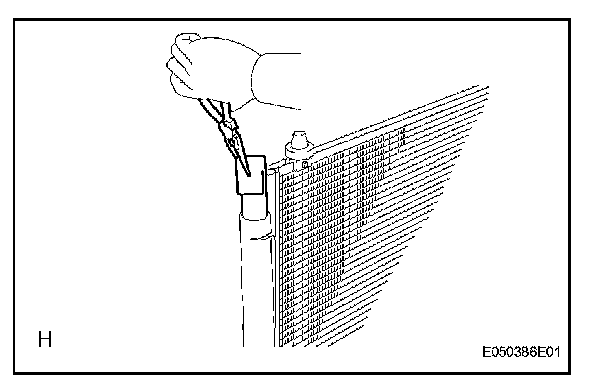

a. Using pliers, install the cooler dryer.




b. Apply a sufficient amount of compressor oil to the contact surfaces of a new O-ring and the cap.

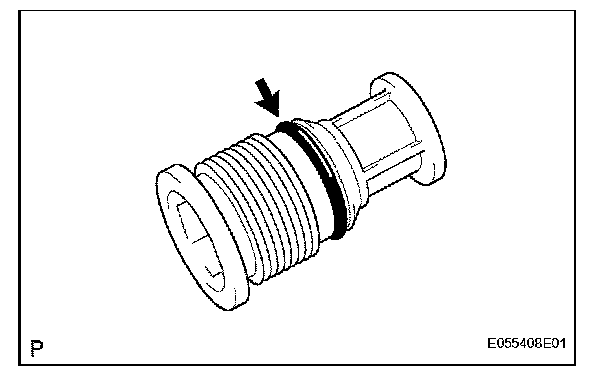

c. Install the O-ring to the cap.

Compressor oil: ND-OIL 8 or equivalent

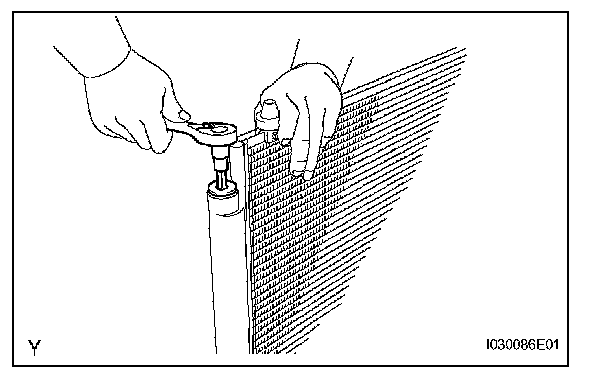

d. Using a 14 mm socket hexagon wrench, install the cap to the modulator.

Torque: 2.9 N.m (29 kgf.cm, 25 in.lbf)




2. INSTALL NO.1 CONDENSER BRACKET COLLAR

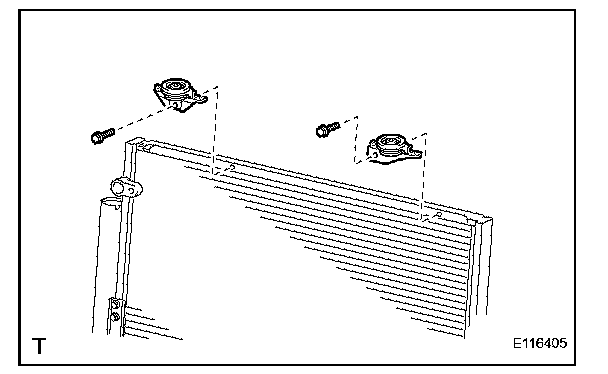

a. Install the 2 condenser bracket collars with the 2 bolts.

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
