Initial Inspection
COMPRESSOR AND PULLEYINSPECTION
1. INSPECT COMPRESSOR WITH PULLEY ASSEMBLY

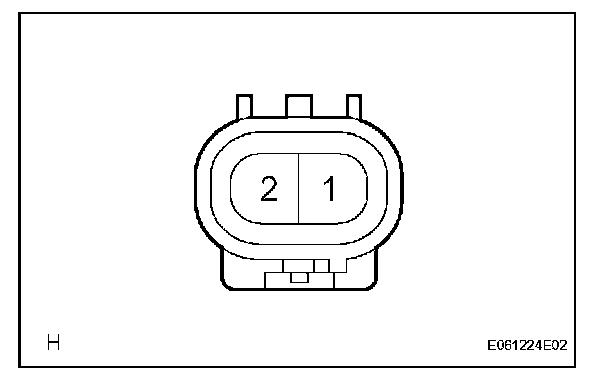

a. Measure the resistance between terminals 1 and 2.
Standard resistance: 160 to 320 at 20 degrees C (68 degrees F)
If the value is not as specified, replace the compressor assembly.
