Blower Motor: Service and Repair

REMOVAL

1. REMOVE ECM COVER
2. REMOVE ECM

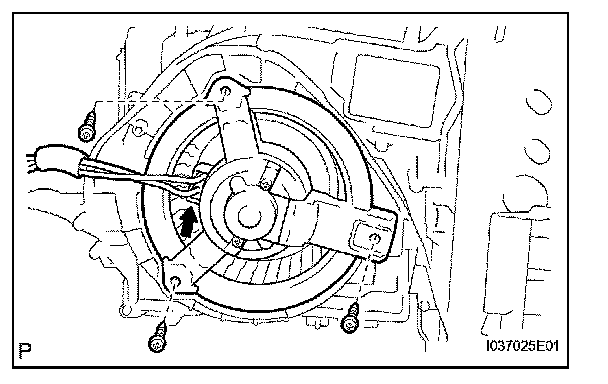

3. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY
a. Disconnect the connector.
b. Remove the 3 screws and blower motor.

INSTALLATION




1. INSTALL BLOWER WITH FAN MOTOR SUB-ASSEMBLY
a. Install the blower motor with the 3 screws.
b. Connect the connector.

2. INSTALL ECM
3. INSTALL ECM COVER
