Blower Motor Resistor: Testing and Inspection

INSPECTION







1. INSPECT BLOWER RESISTOR

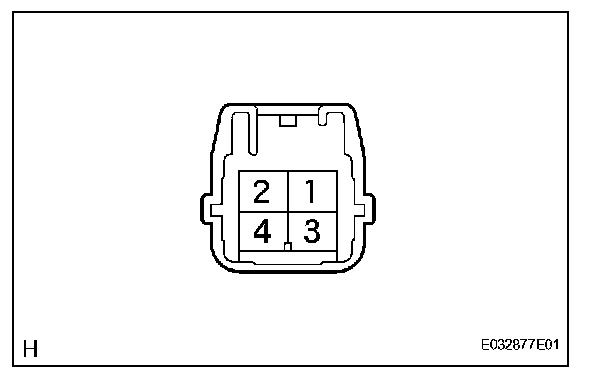

a. Measure the resistance of the resistor.
If the result is not as specified, replace the blower resistor.
