Blower Motor Resistor: Service and Repair

REMOVAL

1. REMOVE ECM COVER
2. REMOVE ECM




3. REMOVE BLOWER RESISTOR
a. Disconnect the connector.

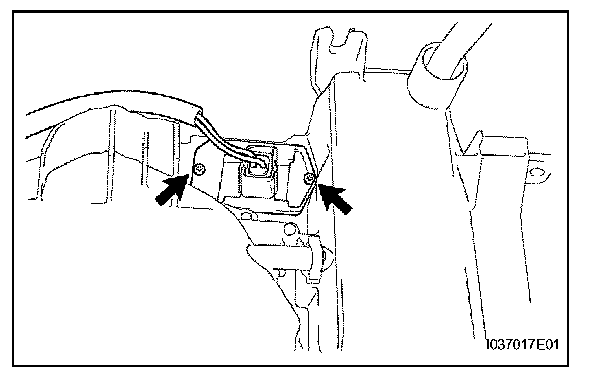

b. Remove the 2 screws and blower resistor.

INSTALLATION




1. INSTALL BLOWER RESISTOR

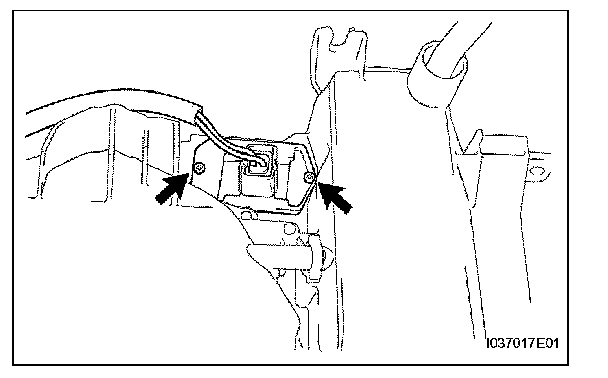

a. Install the blower resistor with the 2 screws.
b. Connect the connector.

2. INSTALL ECM
3. INSTALL ECM COVER
