Air Door Actuator / Motor: Service and Repair

REMOVAL

1. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY
a. Remove the instrument panel.

2. REMOVE LOWER INSTRUMENT PANEL ASSEMBLY
a. Remove the instrument panel.




3. REMOVE DAMPER SERVO SUB-ASSEMBLY
a. Disconnect the connector.

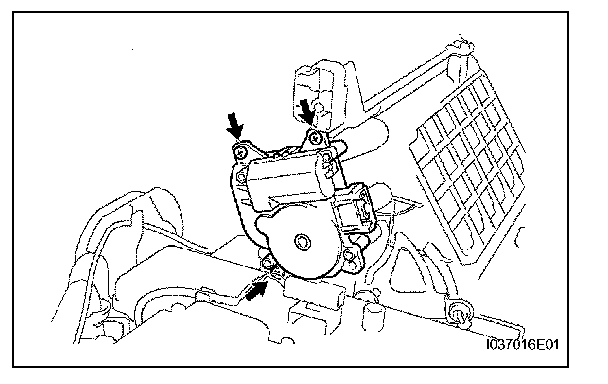

b. Remove the 3 screws and damper servo.

INSTALLATION




1. INSTALL DAMPER SERVO SUB-ASSEMBLY

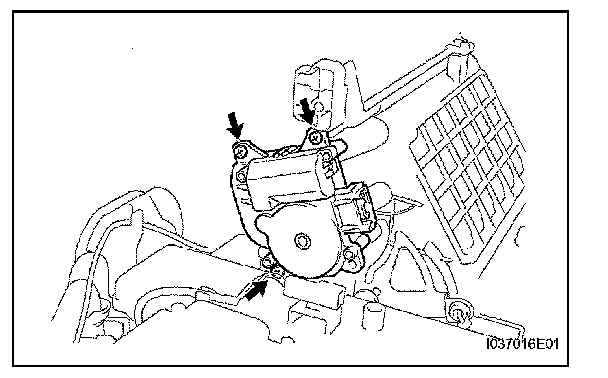

a. Install the damper servo with the 3 screws.
b. Connect the connector.

2. INSTALL LOWER INSTRUMENT PANEL ASSEMBLY
a. Install the instrument panel.

3. INSTALL INSTRUMENT PANEL SUB-ASSEMBLY
a. Install the instrument panel.
