Home >> Scion >> 2006 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Engine Lubrication >> Tools and Equipment

Engine Lubrication: Tools and Equipment

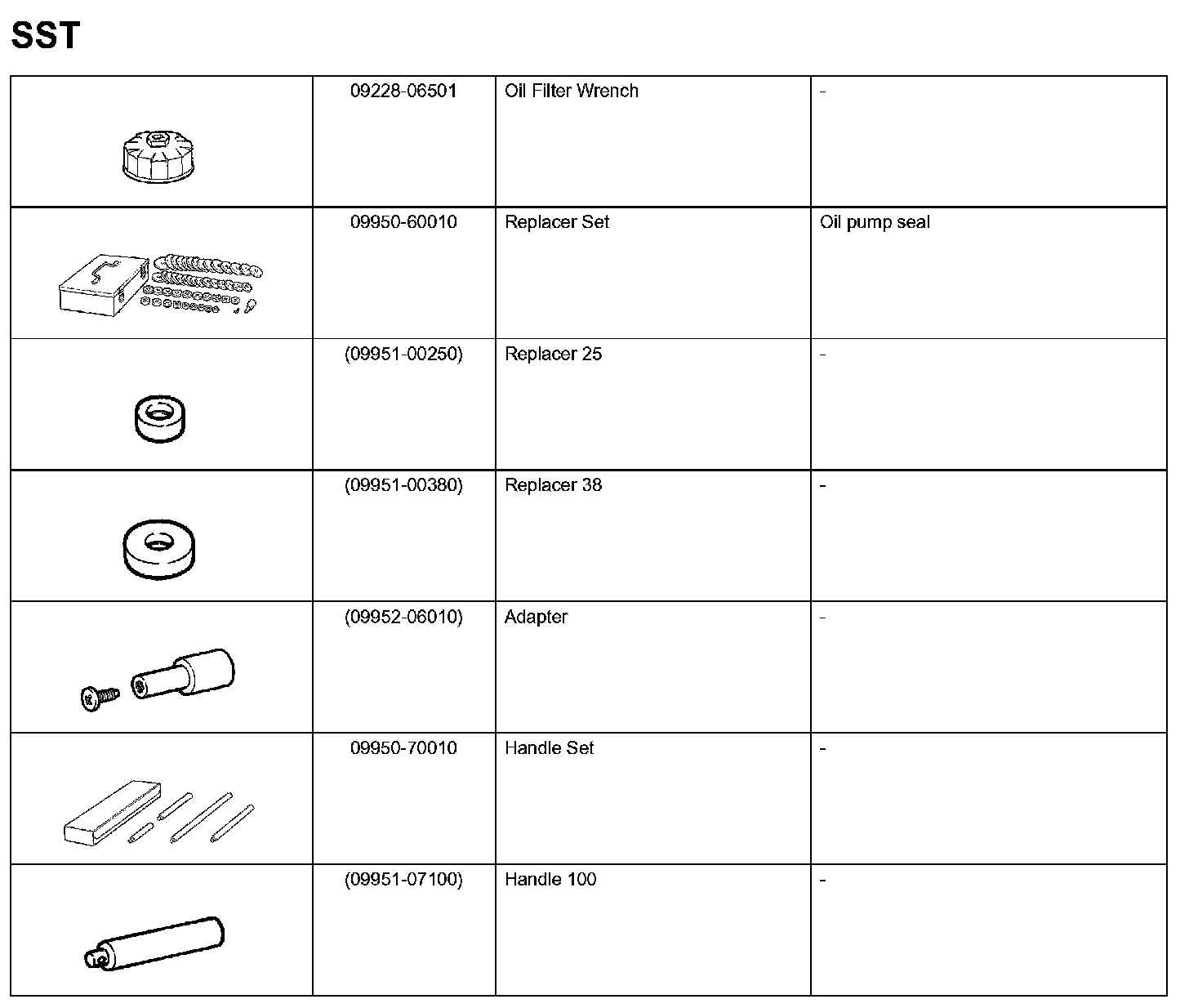

Lubrication-SST:

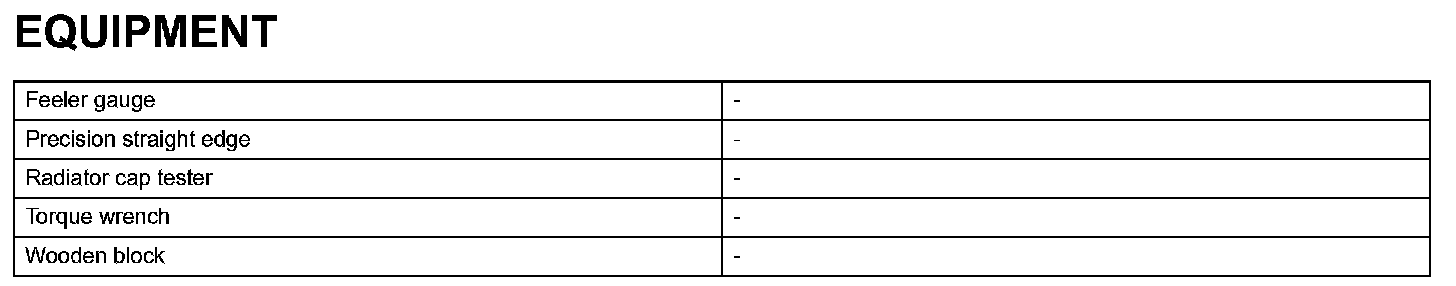

Lubrication-Equipment:

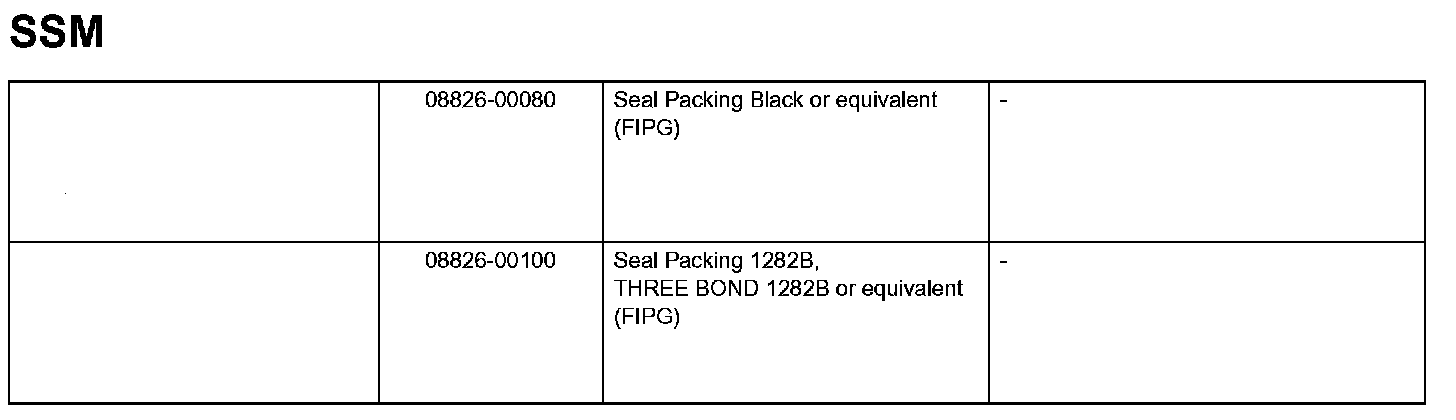

Lubrication-SSM:
