Evaporator Temperature Sensor / Switch

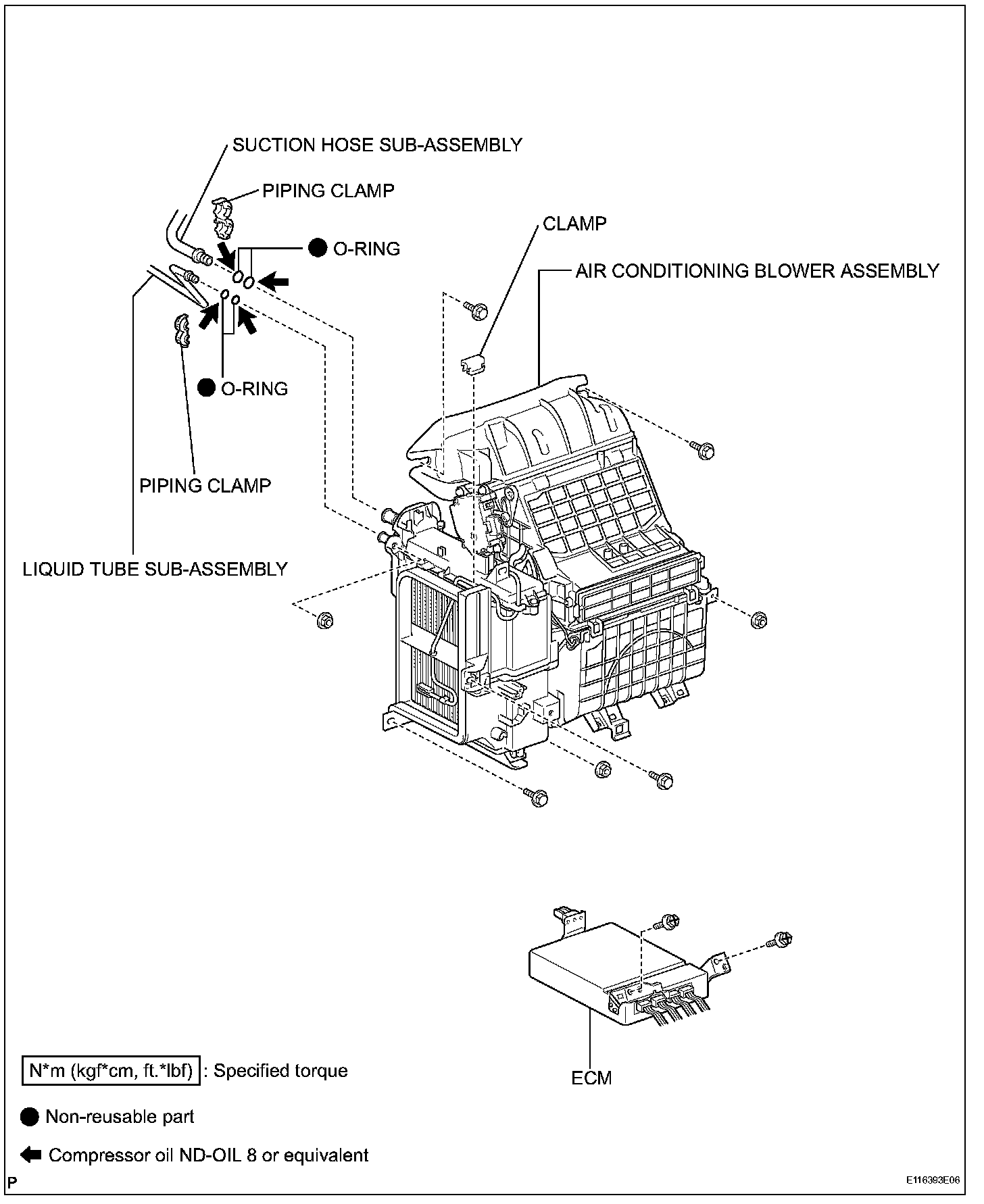

Evaporator Temperature Senor:

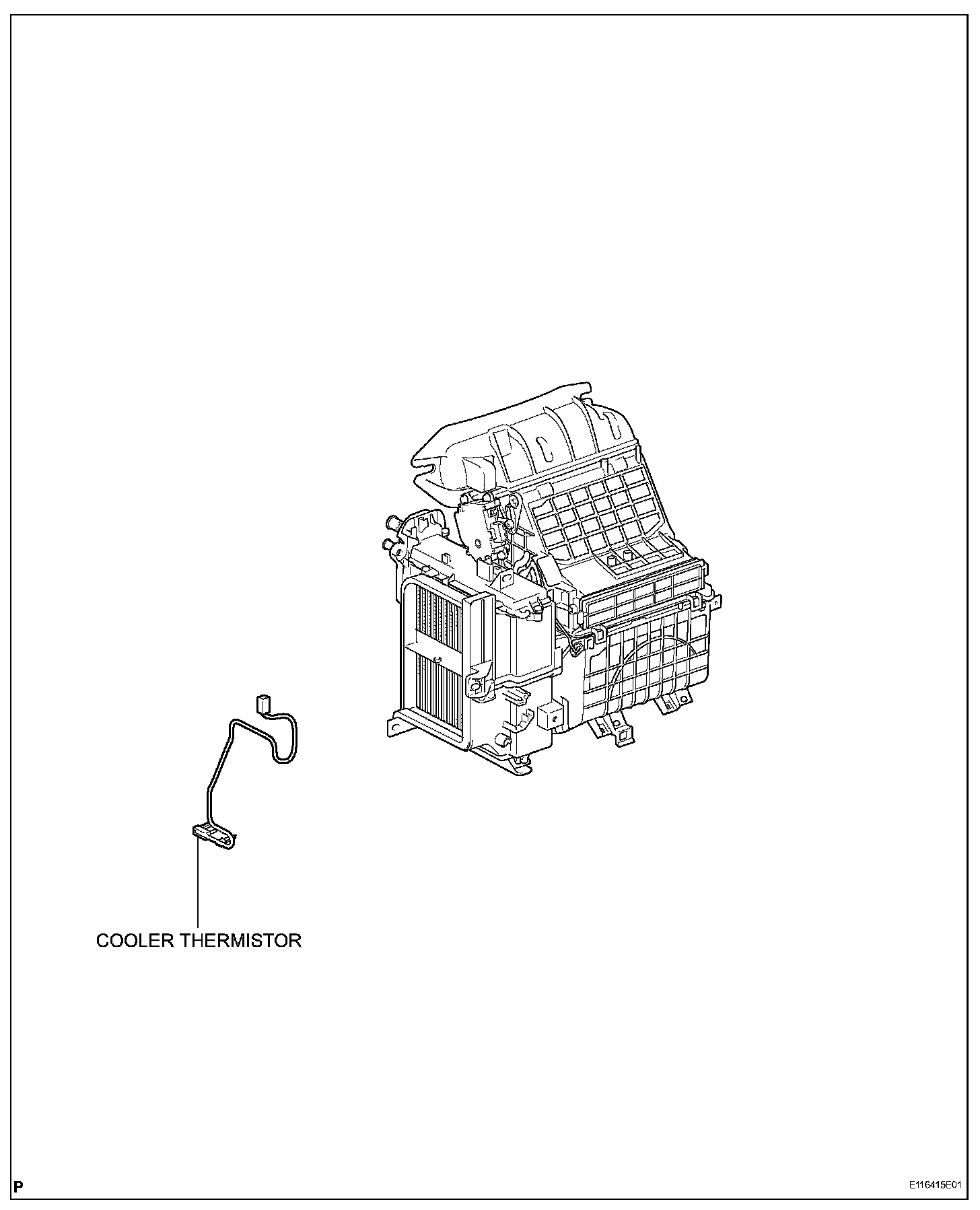

Evaporator Temperature Sensor:

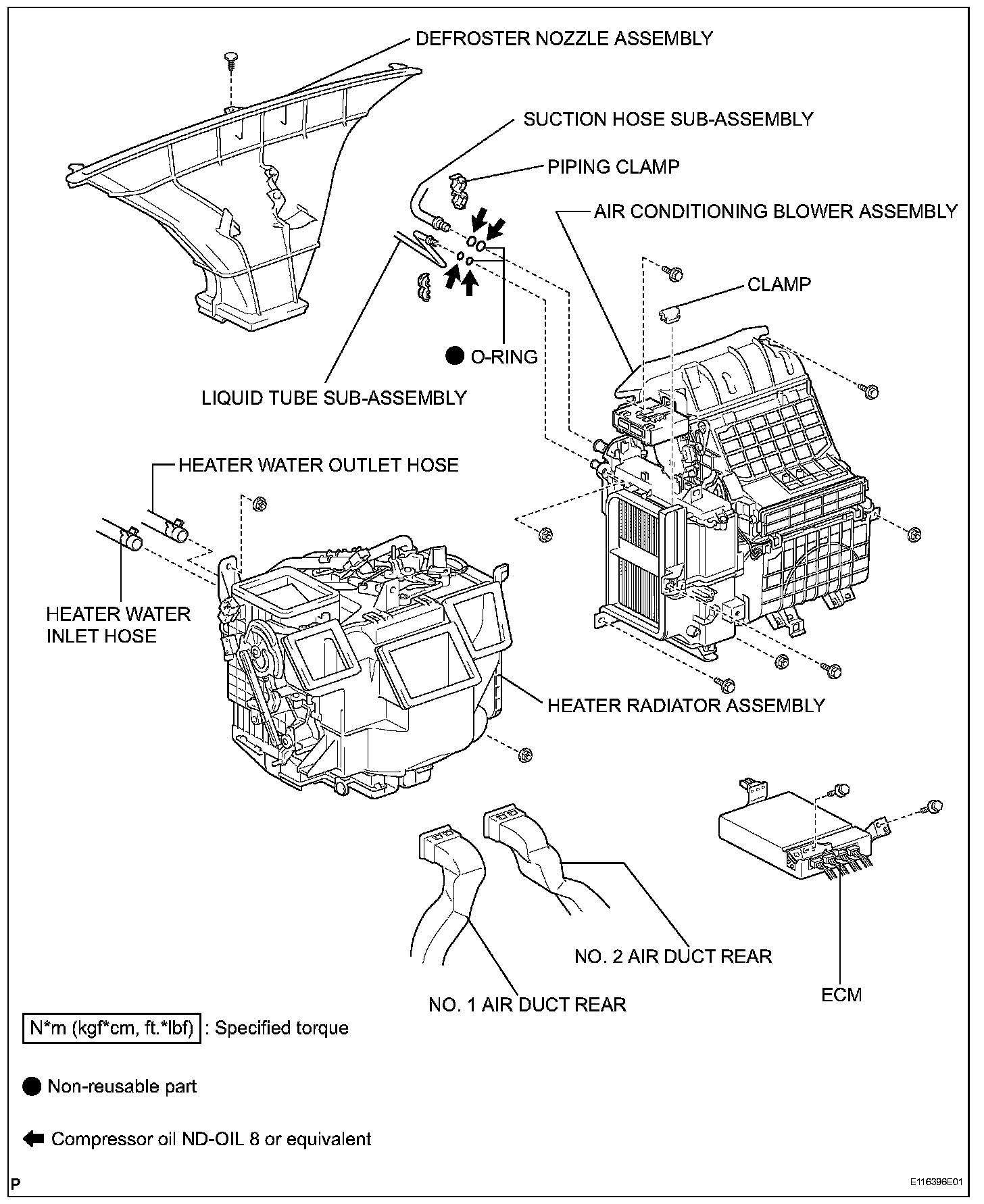

Thermistor Assembly:

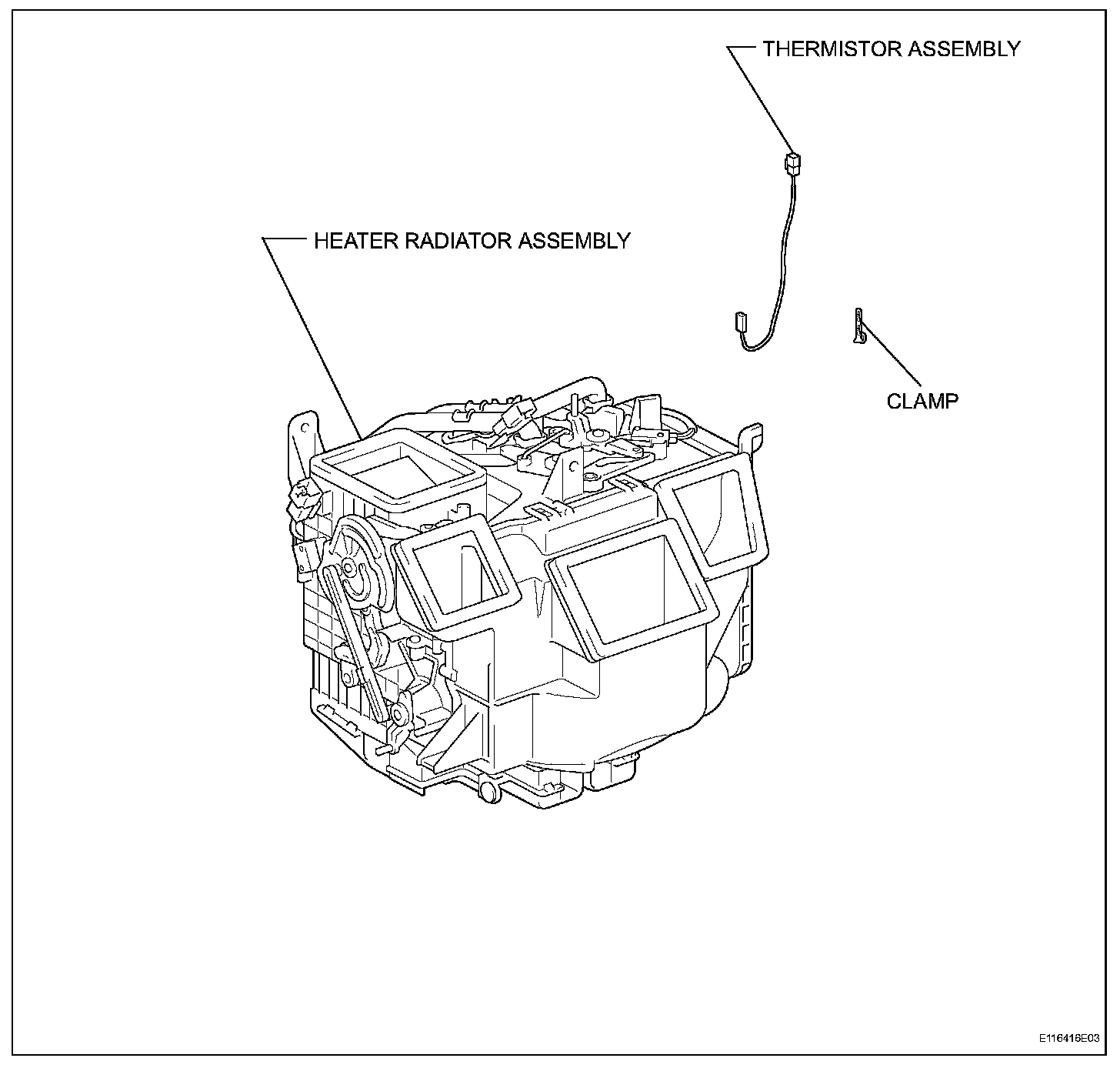

Thermistor Assembly:
