Home >> Scion >> 2006 >> xB L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Dashboard / Instrument Panel

Dashboard / Instrument Panel

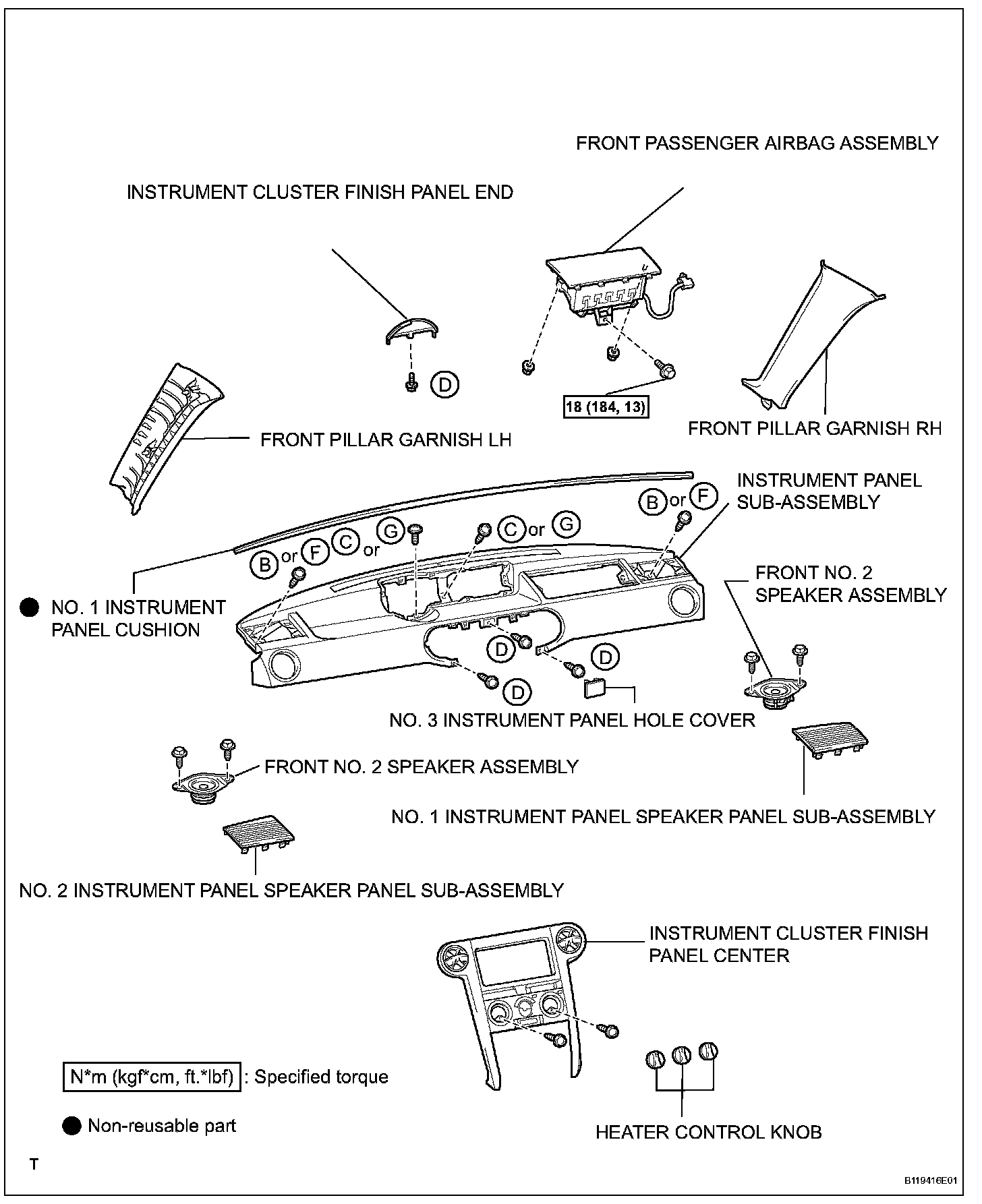

Upper Instrument Panel:

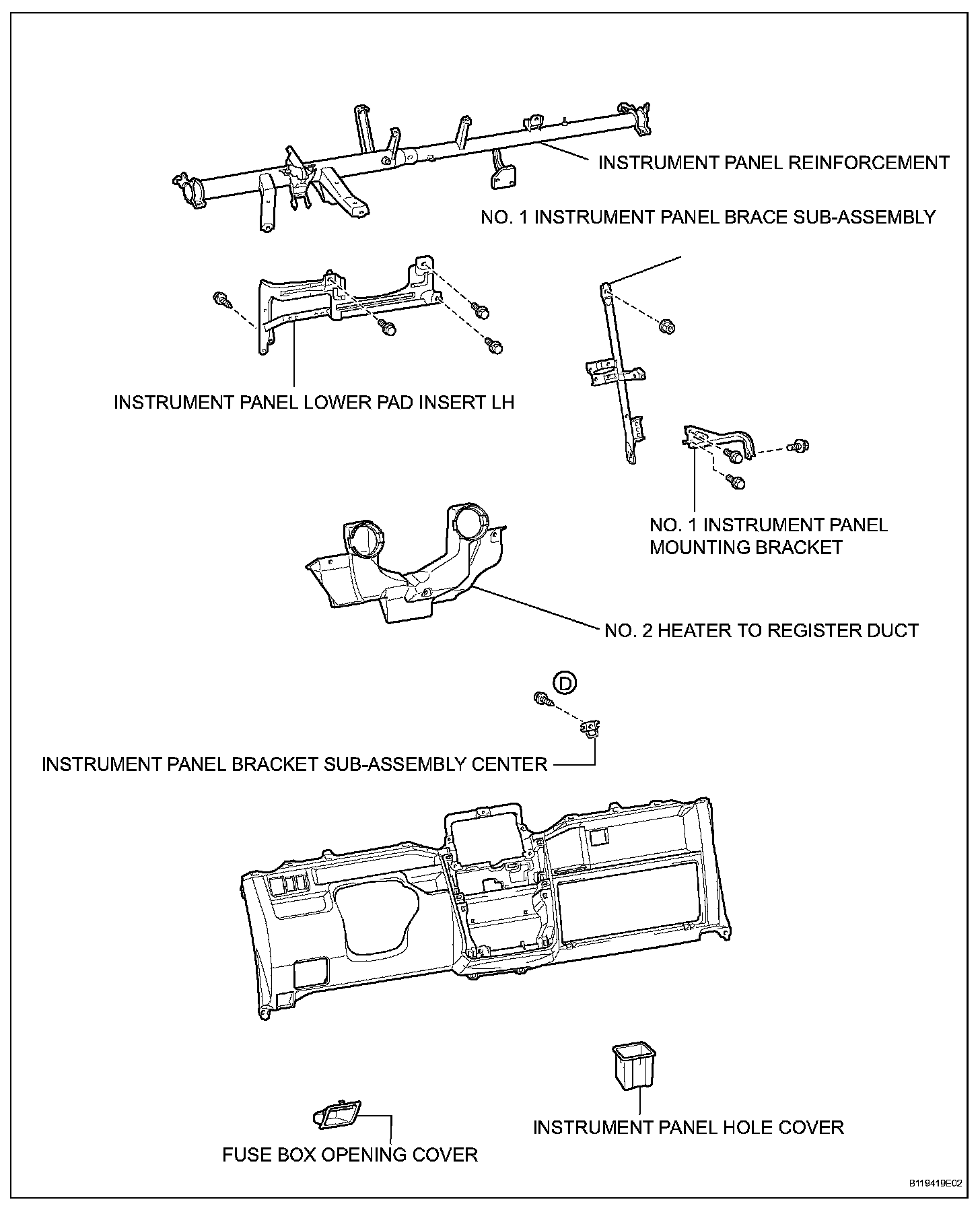

Upper Instrument Panel:

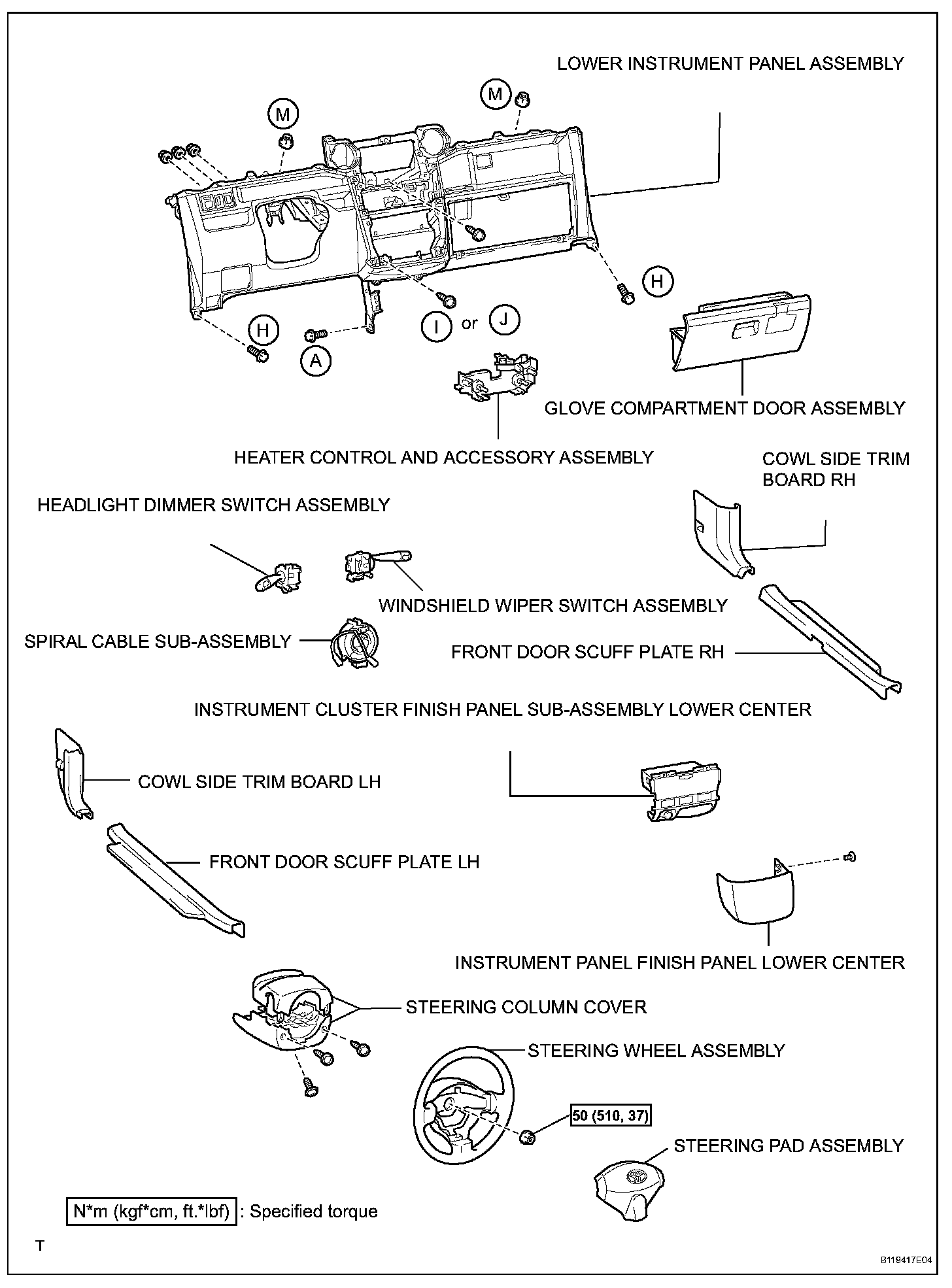

Lower Instrument Panel:

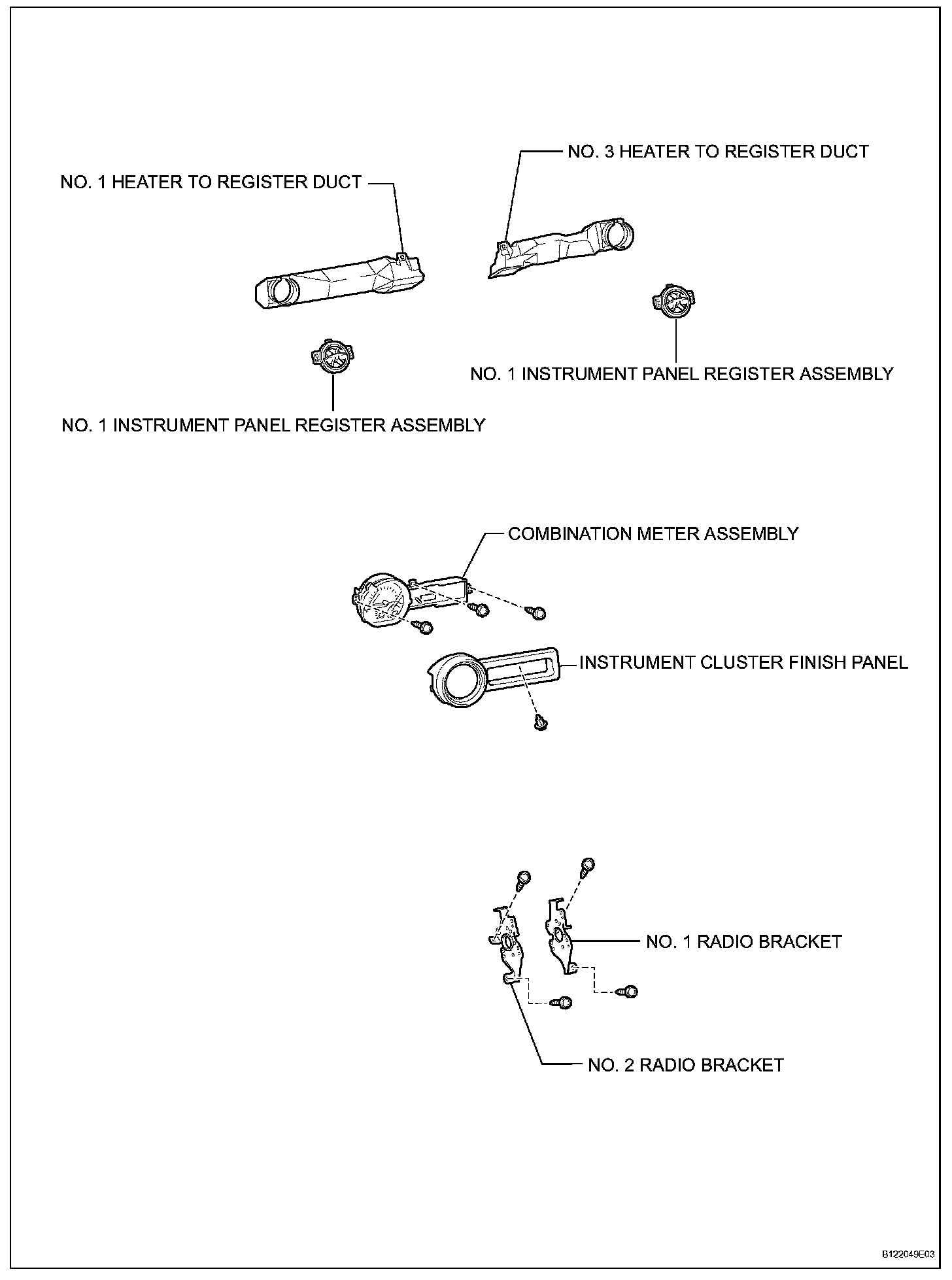

Lower Instrument Panel:
