Current Flow Chart

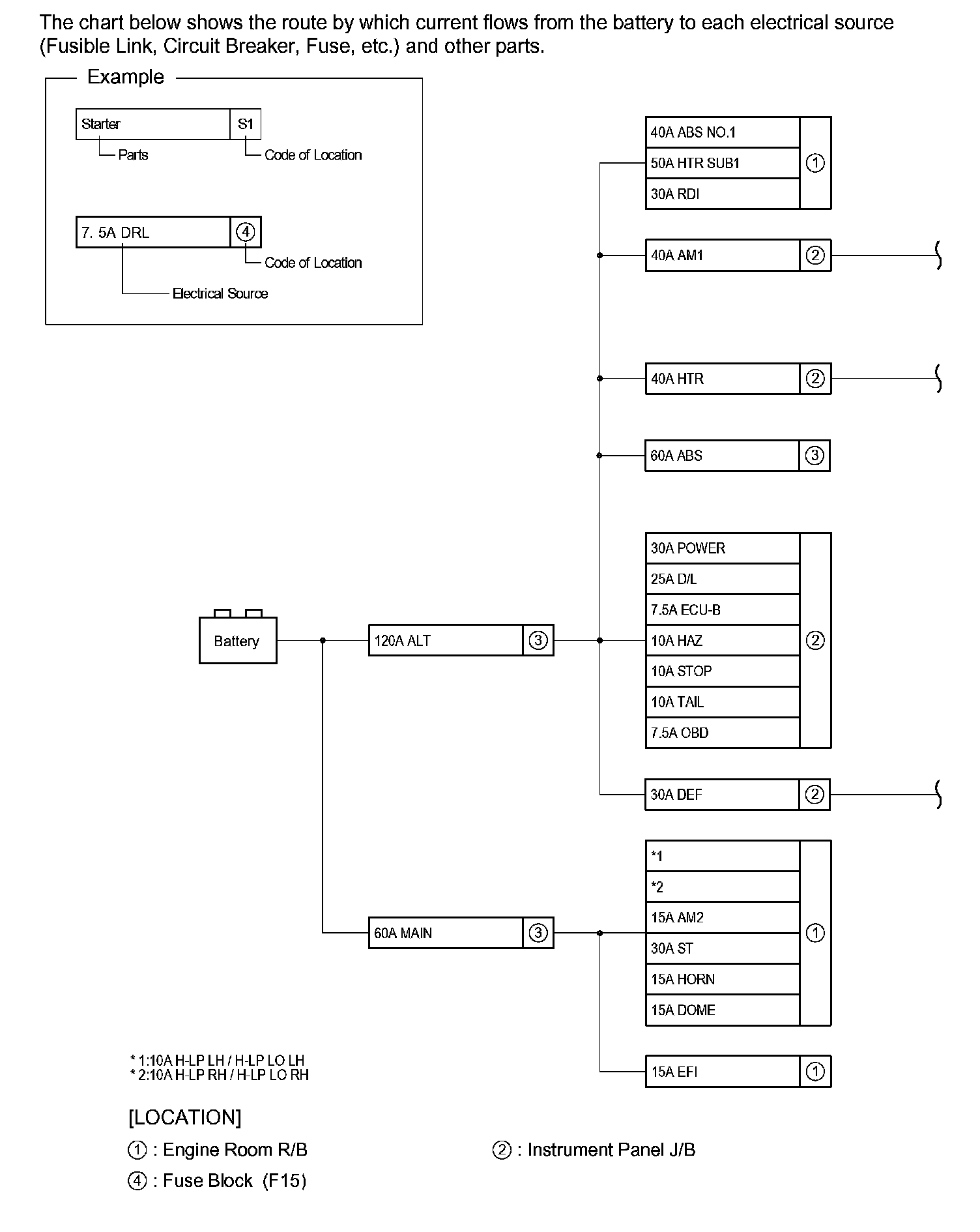

Power Source (Current Flow Chart) (Part 1):

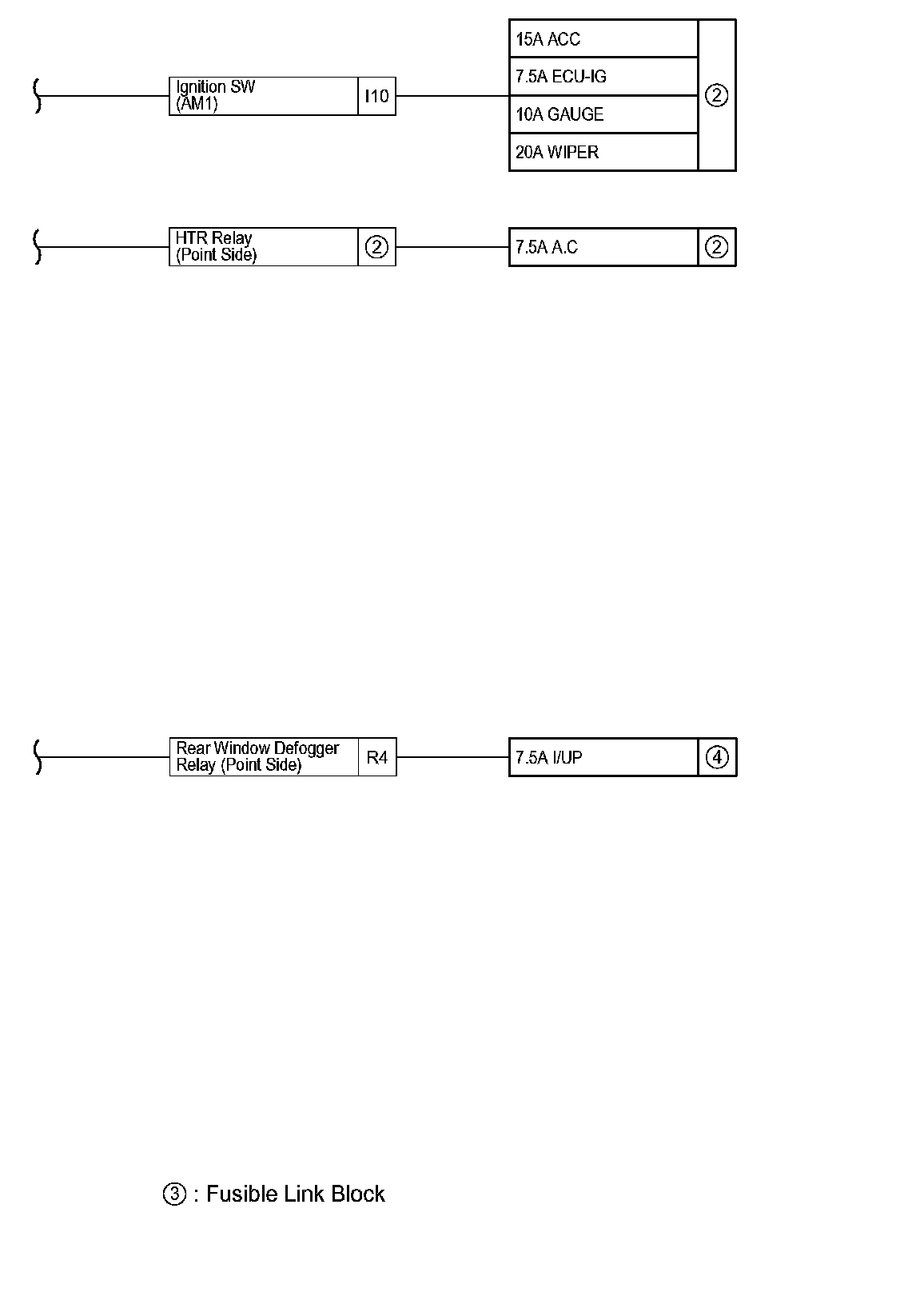

Power Source (Current Flow Chart) (Part 2):
