Parking Brake System: Adjustments
ADJUSTMENT1. REMOVE REAR WHEEL
2. ADJUST REAR BRAKE DRUM SHOE CLEARANCE
3. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft. lbs.)
4. CHECK PARKING BRAKE LEVER TRAVEL
a) Pull the lever upward with a force of approximately 196 N (20 kgf, 44.1 lbs.) and count the number of clicks.
OK: 6 to 9 clicks
5. REMOVE CONSOLE BOX REAR COVER
6. REMOVE CONSOLE BOX CARPET
7. REMOVE REAR CONSOLE BOX ASSEMBLY
8. ADJUST PARKING BRAKE LEVER TRAVEL
a) Loosen the lock nut.

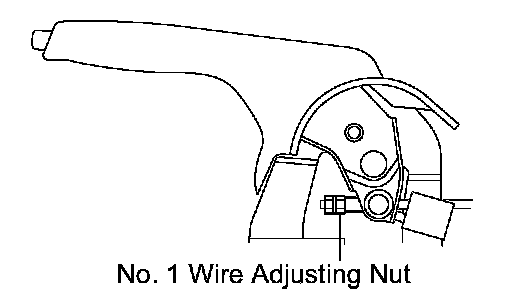

b) Turn the No. 1 wire adjusting nut until the lever travel is correct.
c) Tighten the lock nut.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
