VSC Warning Light Circuit (Remains ON)

VSC Warning Light Remains ON

DESCRIPTION

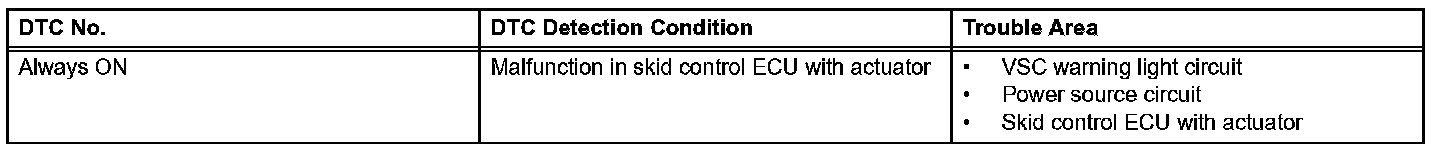

DTC Detection Condition:

If the ECU stores a DTC, the VSC warning light illuminates.

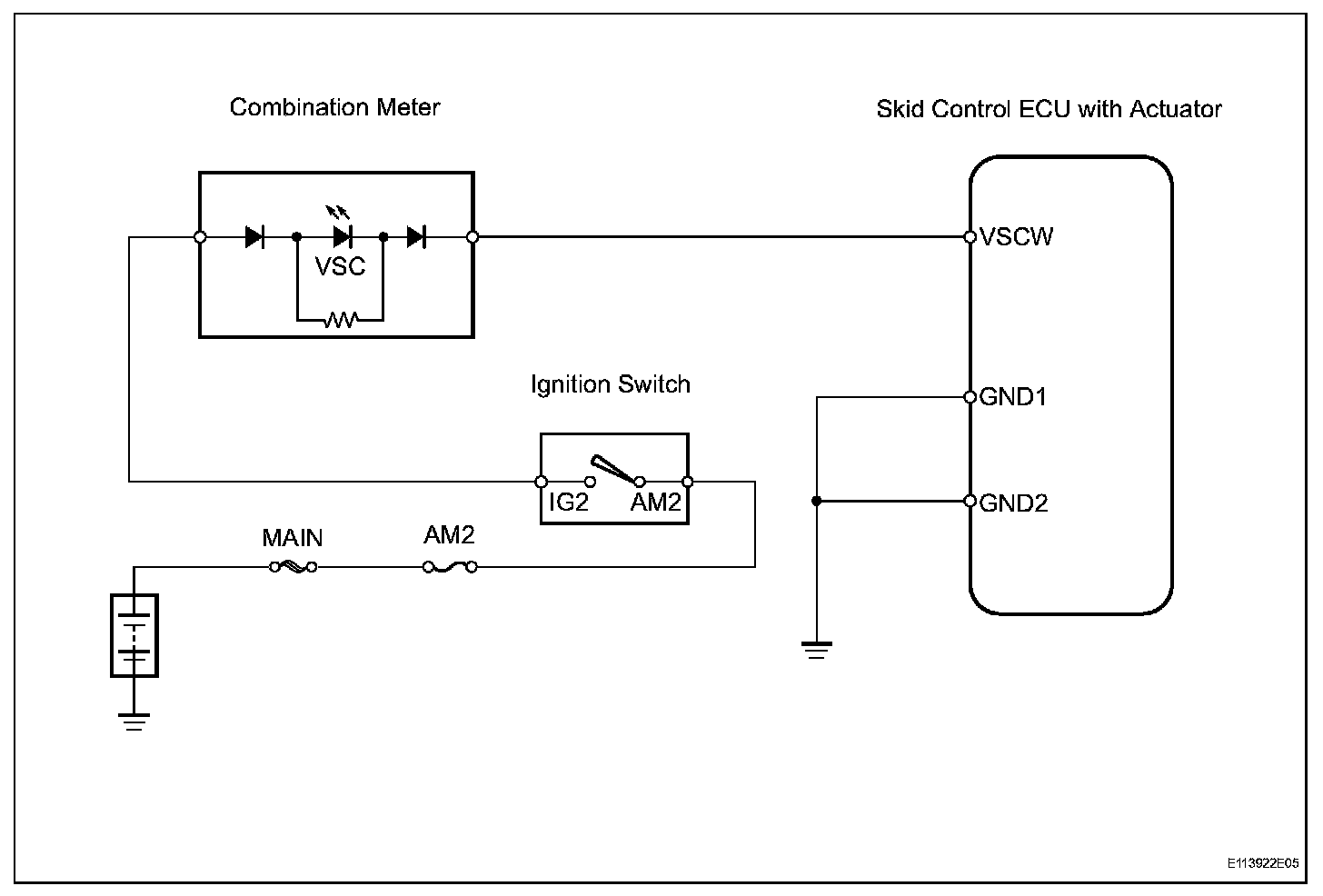

Wiring Diagram:

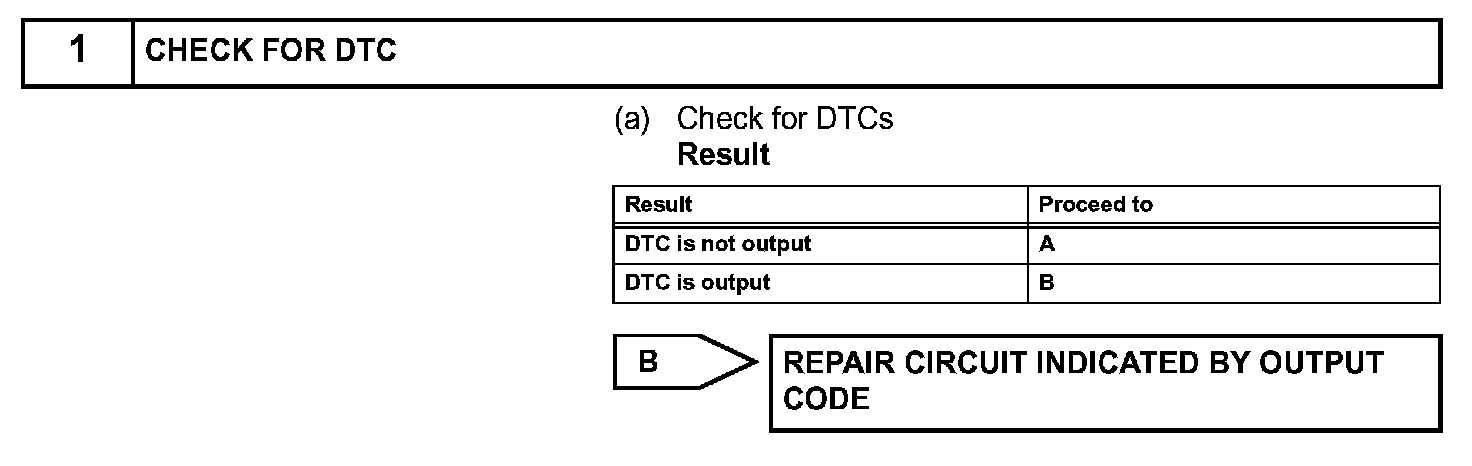

Step 1:

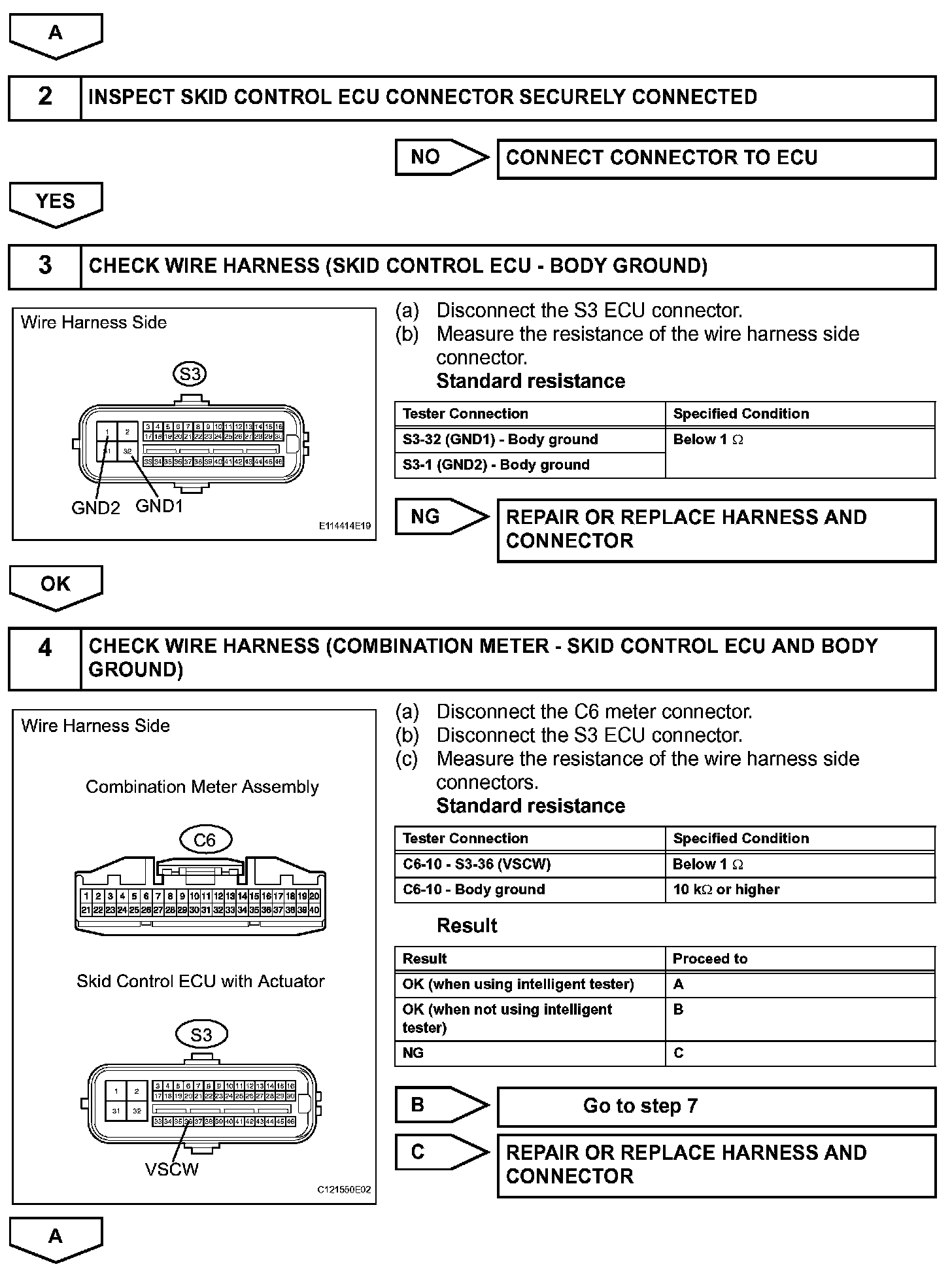

Step 1(Continued)-4:

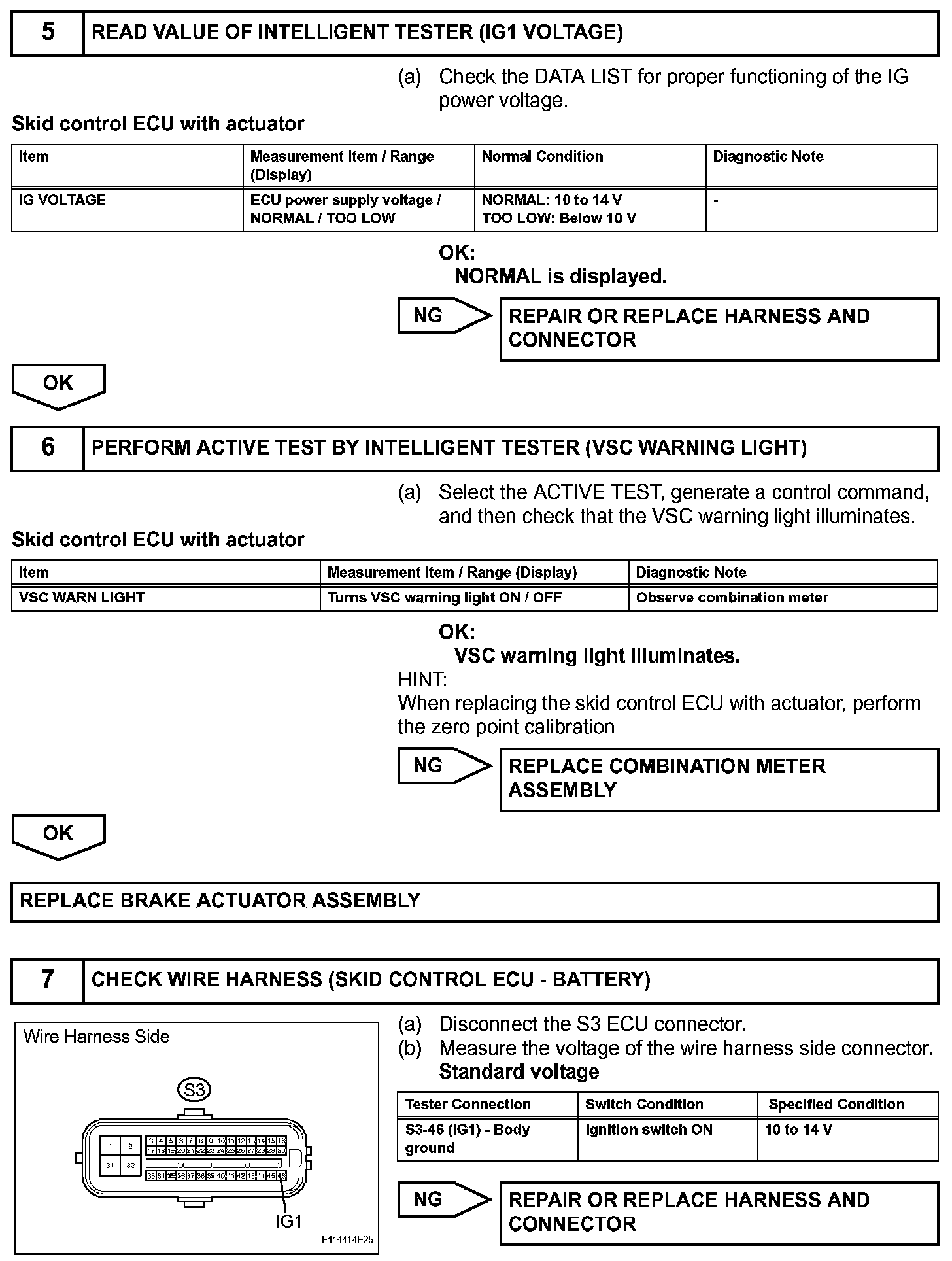

Step 5-7:

Step 7(Continued)-8:

INSPECTION PROCEDURE
