Symptom Diagnostic Procedures

ABS Warning Light Remains ON

DESCRIPTION

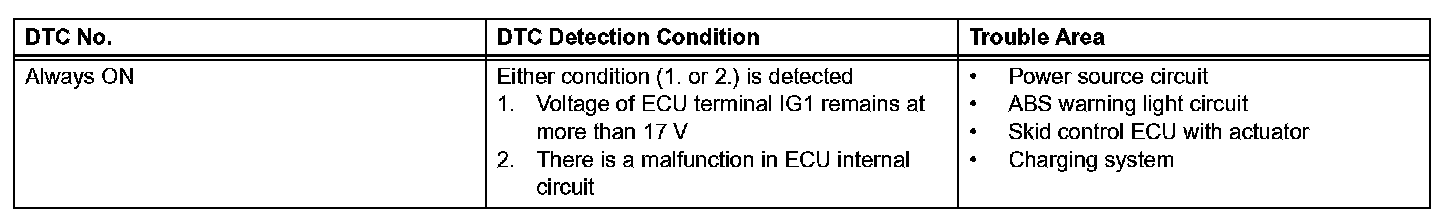

DTC Detection Condition:

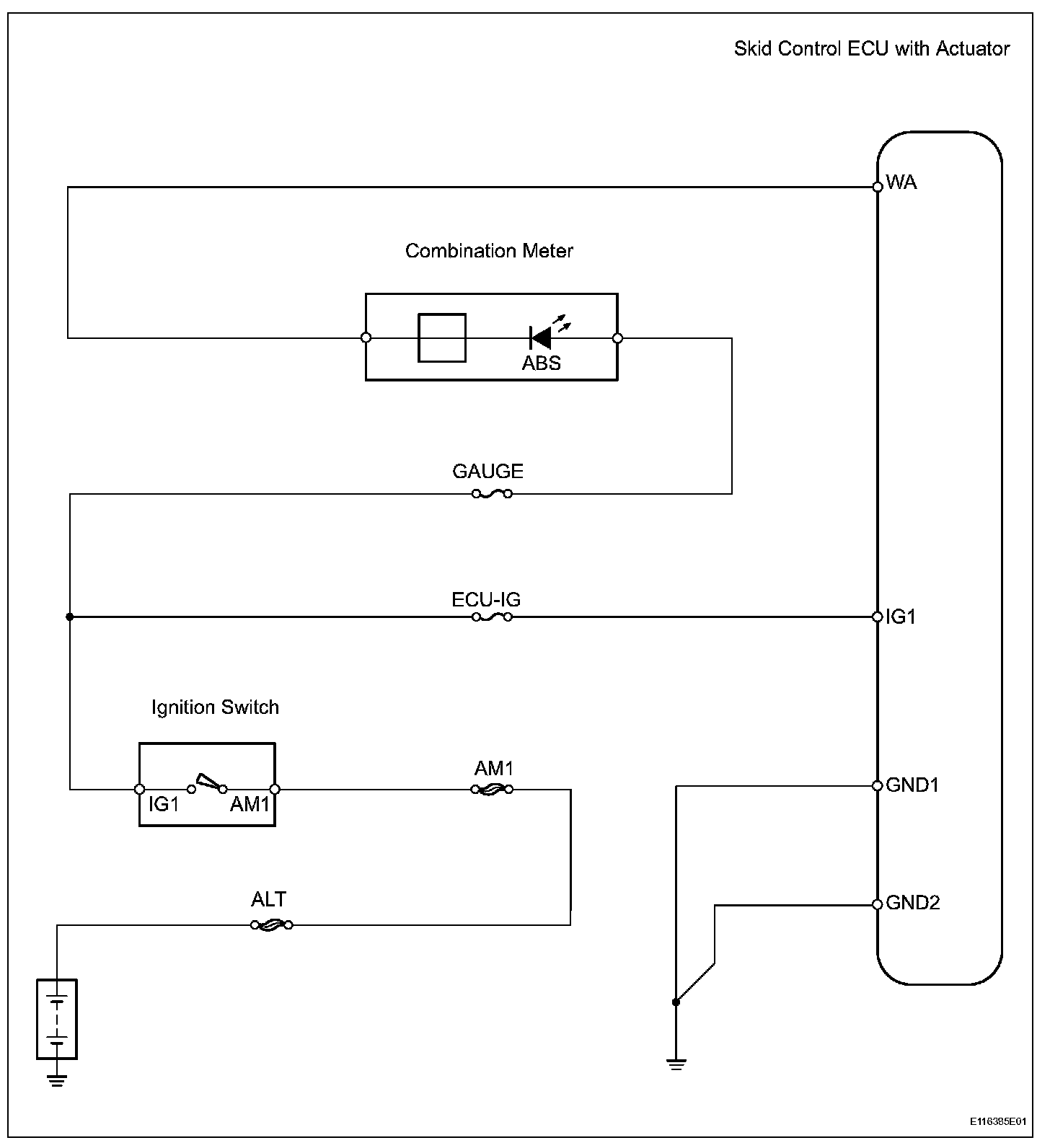

Wiring Diagram:

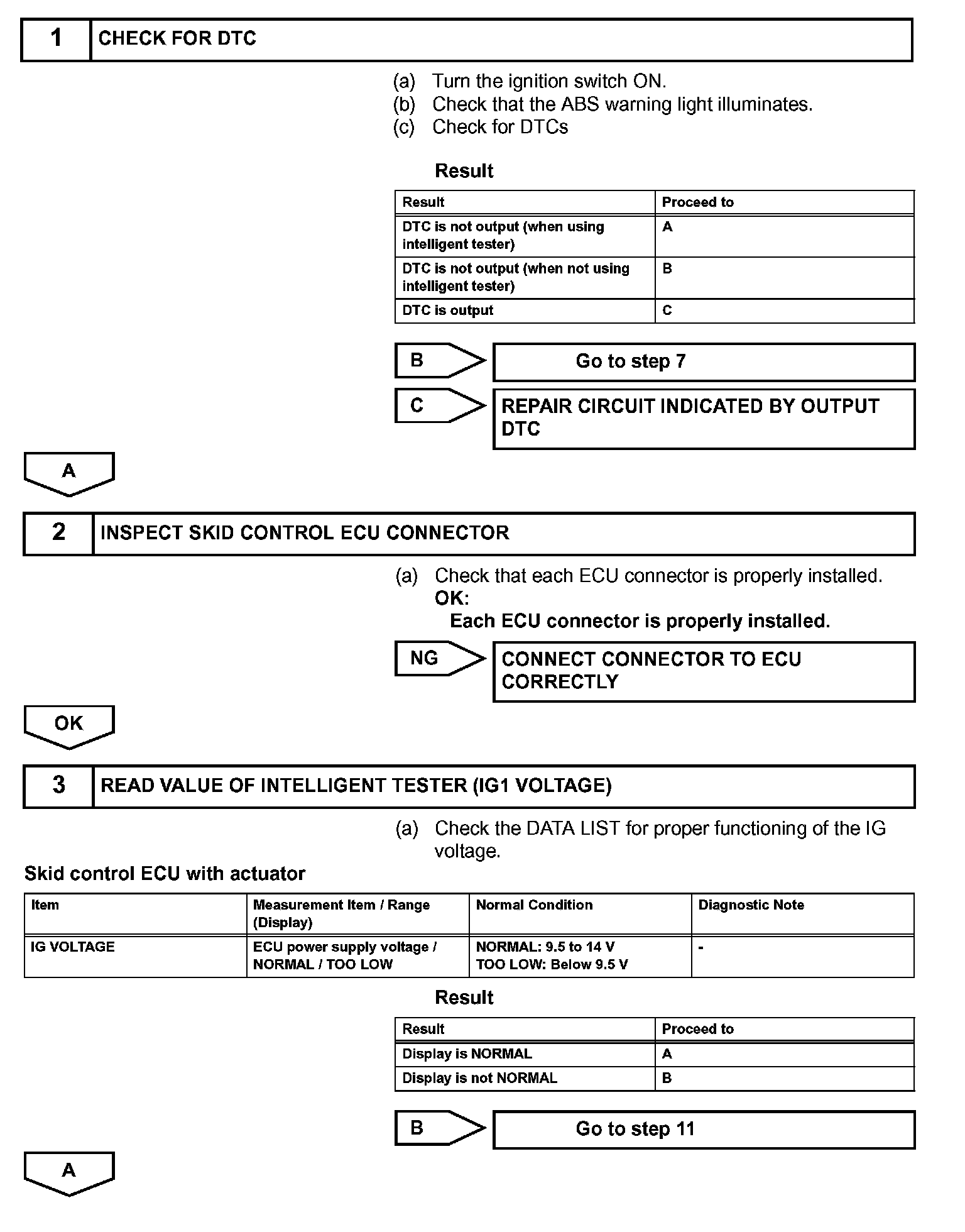

Step 1-3:




Step 4-5:

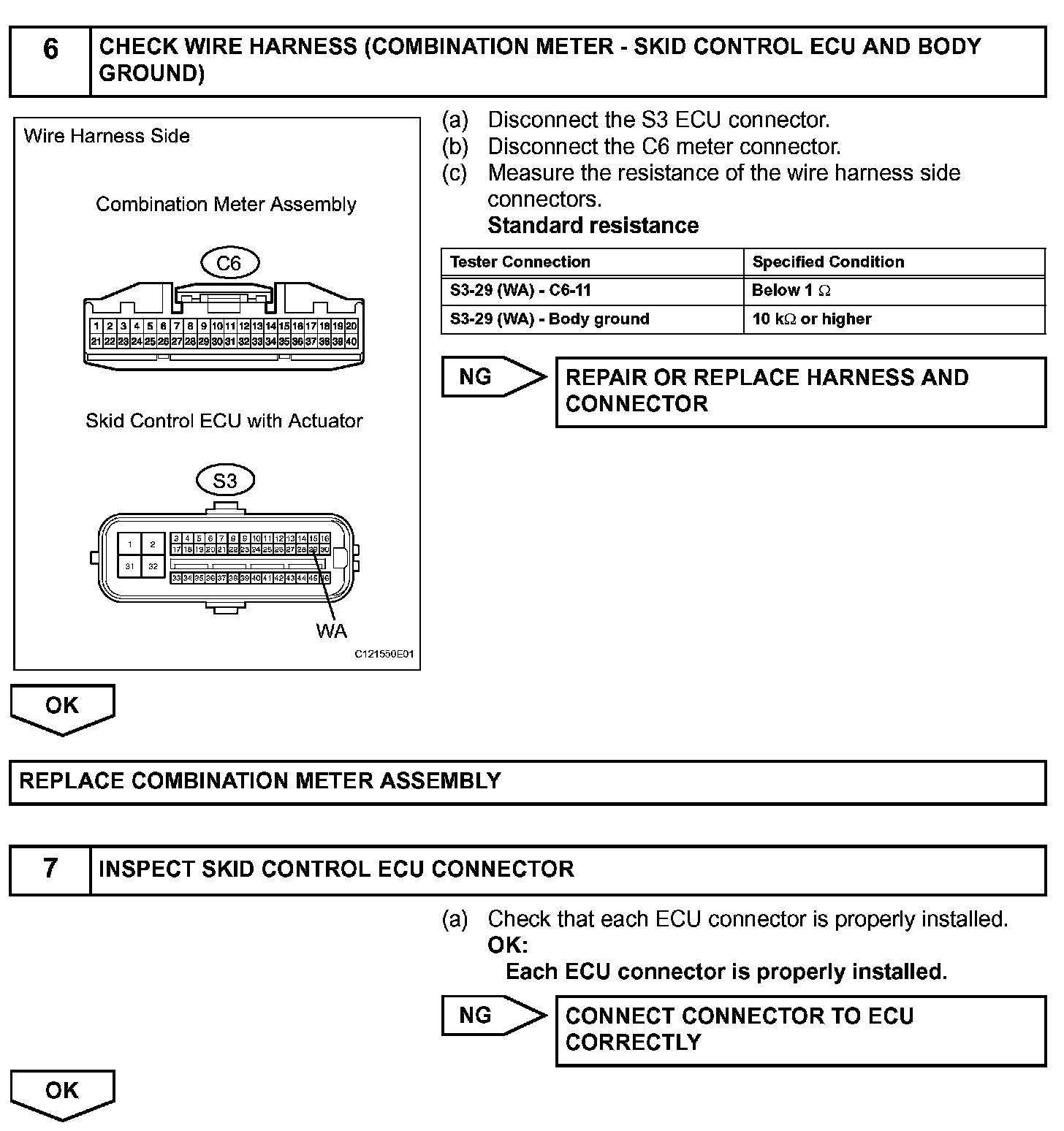

Step 6-7:

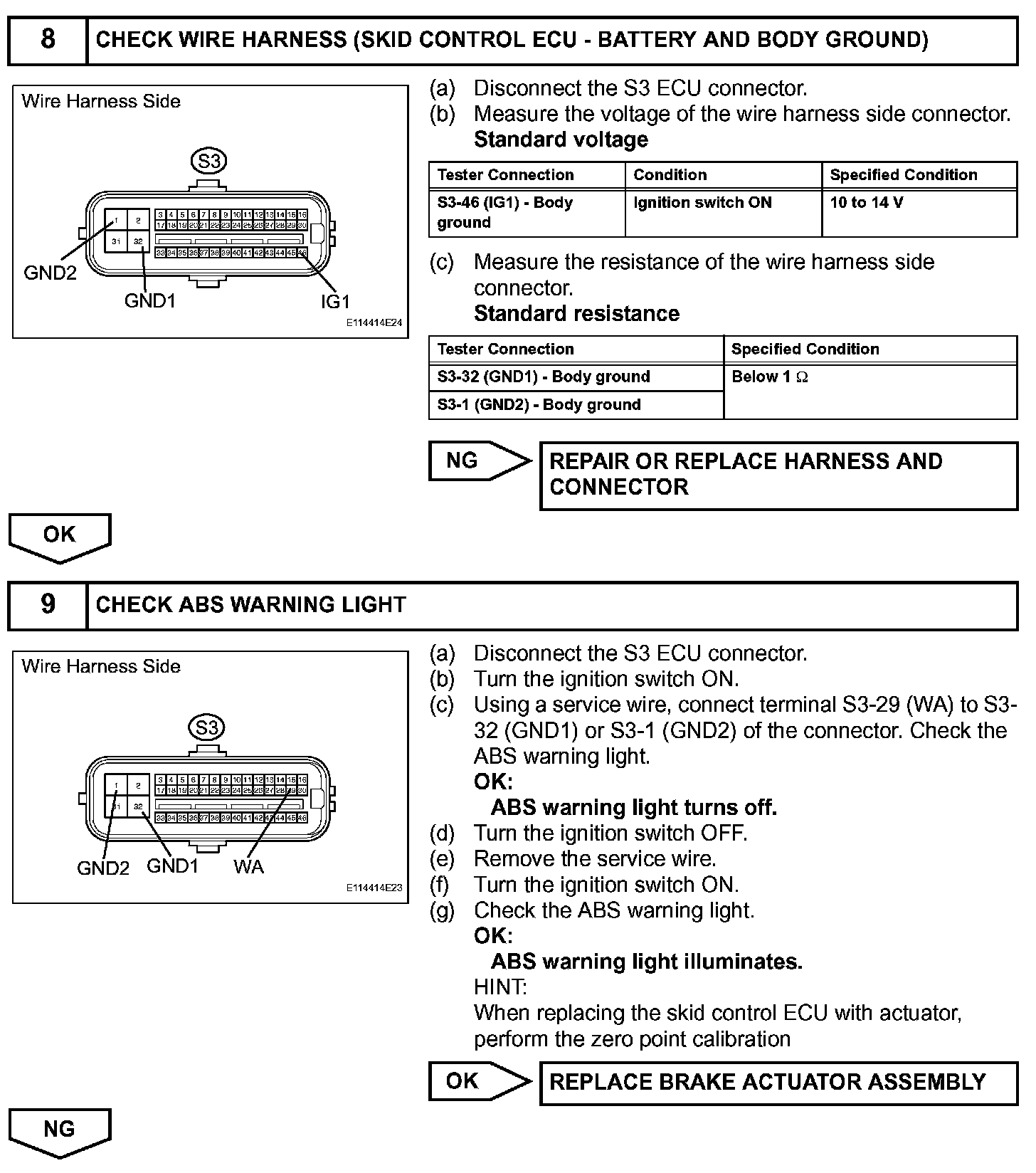

Step 8-9:

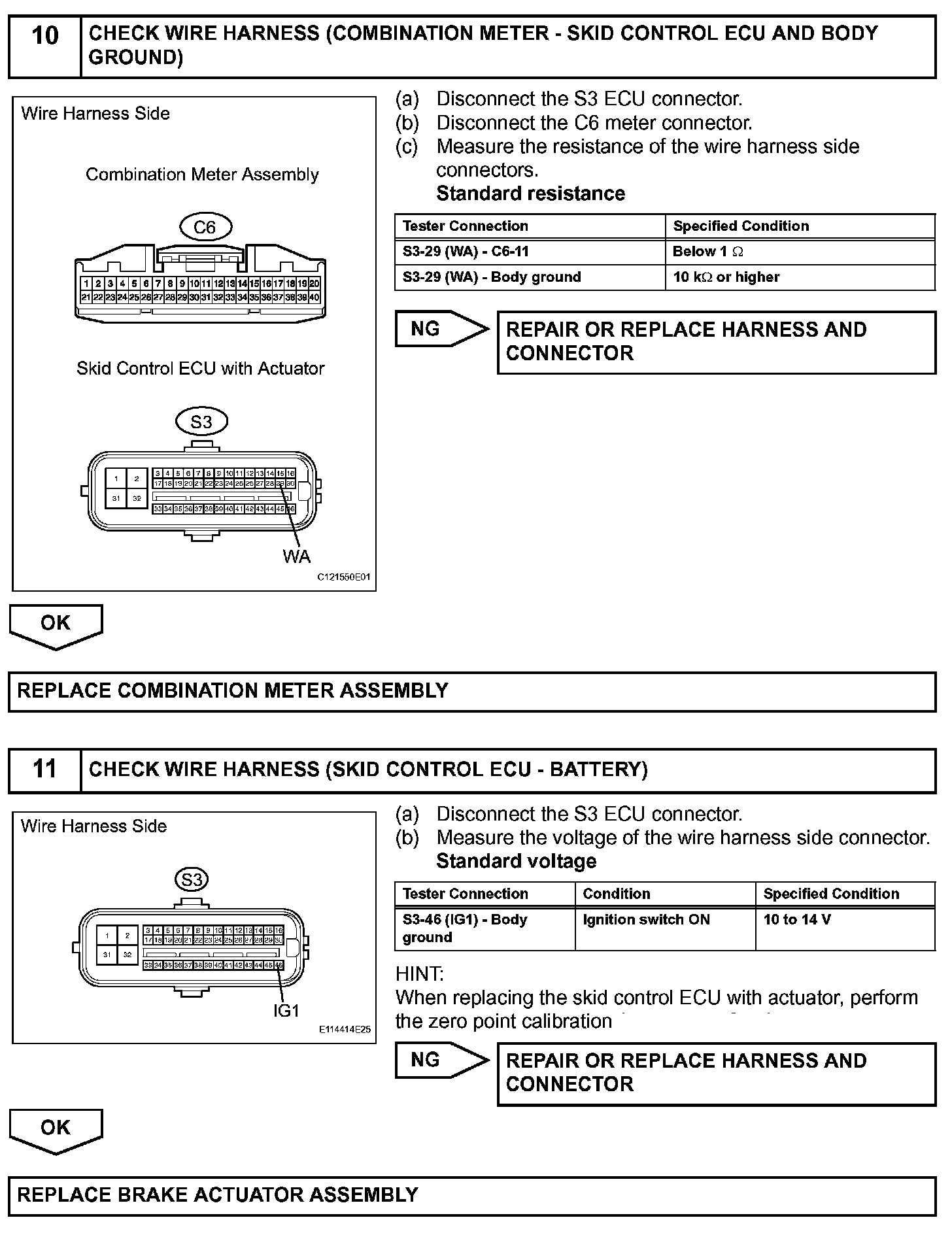

Step 10-11:




INSPECTION PROCEDURE
