Problem Symptoms Table

PROBLEM SYMPTOMS TABLE

If a normal code is displayed during the DTC check but the problem still occurs, check the circuits for each problem symptom in order to given in the table and proceed to the relevant troubleshooting.

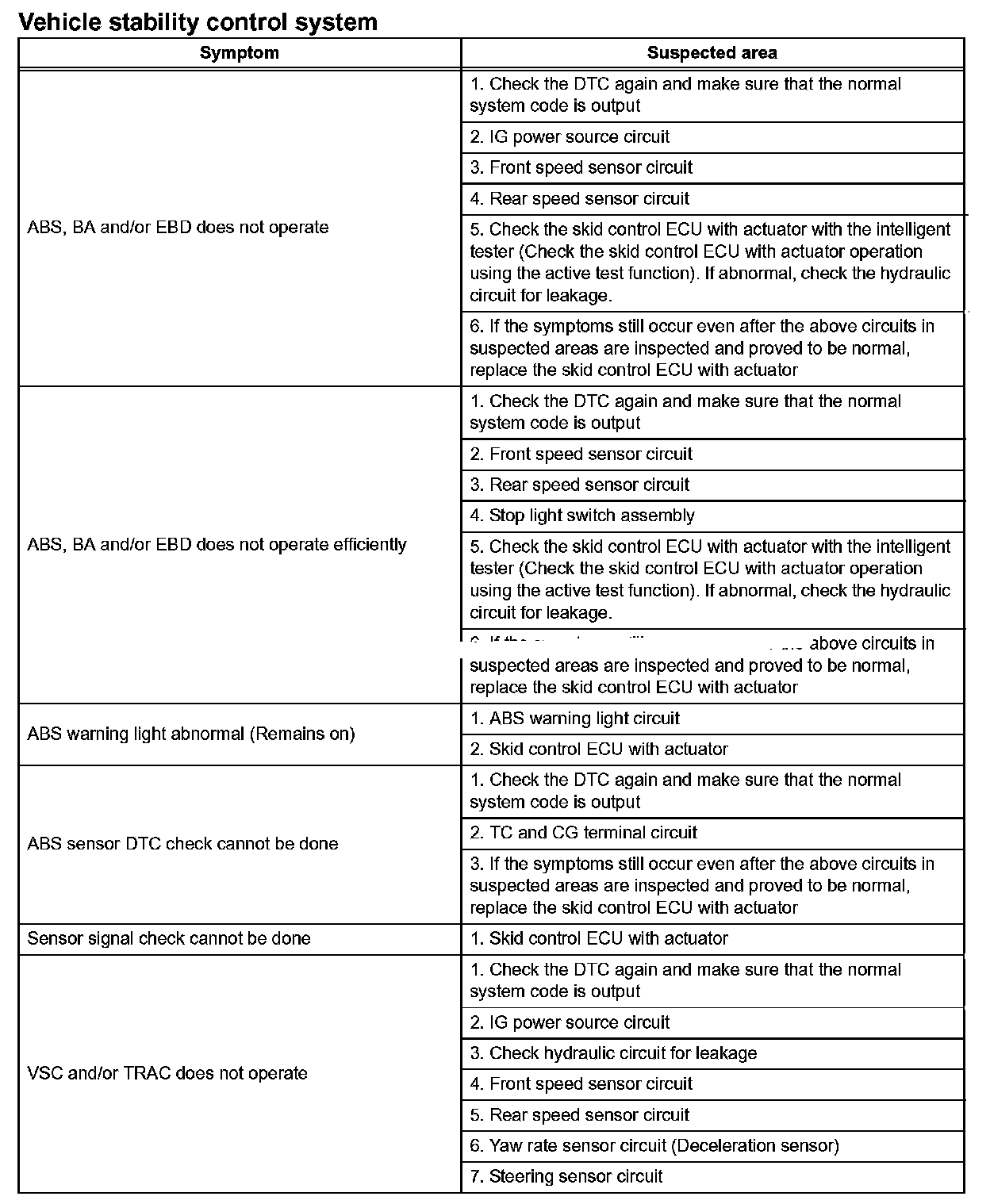

Problem Symptoms (Part 1):

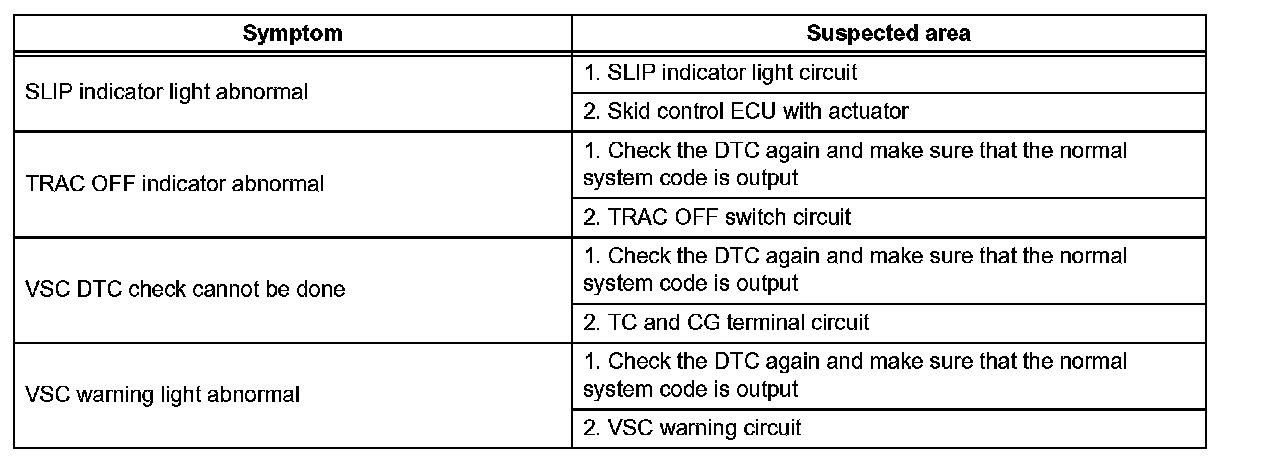

Problem Symptoms (Part 2):

NOTE:
- When replacing the skid control ECU, sensors, etc., turn the ignition switch OFF.
- When replacing the yaw rate sensor and/or the brake actuator assembly, make sure to perform the yaw rate sensor zero point calibration.
